2 GHz to 28 GHz, GaAs, pHEMT, MMIC,. Low Noise Amplifier. Data Sheet. ADL9006CHIPS. FEATURES. GENERAL DESCRIPTION
Model Line for this Datasheet
Text Version of Document

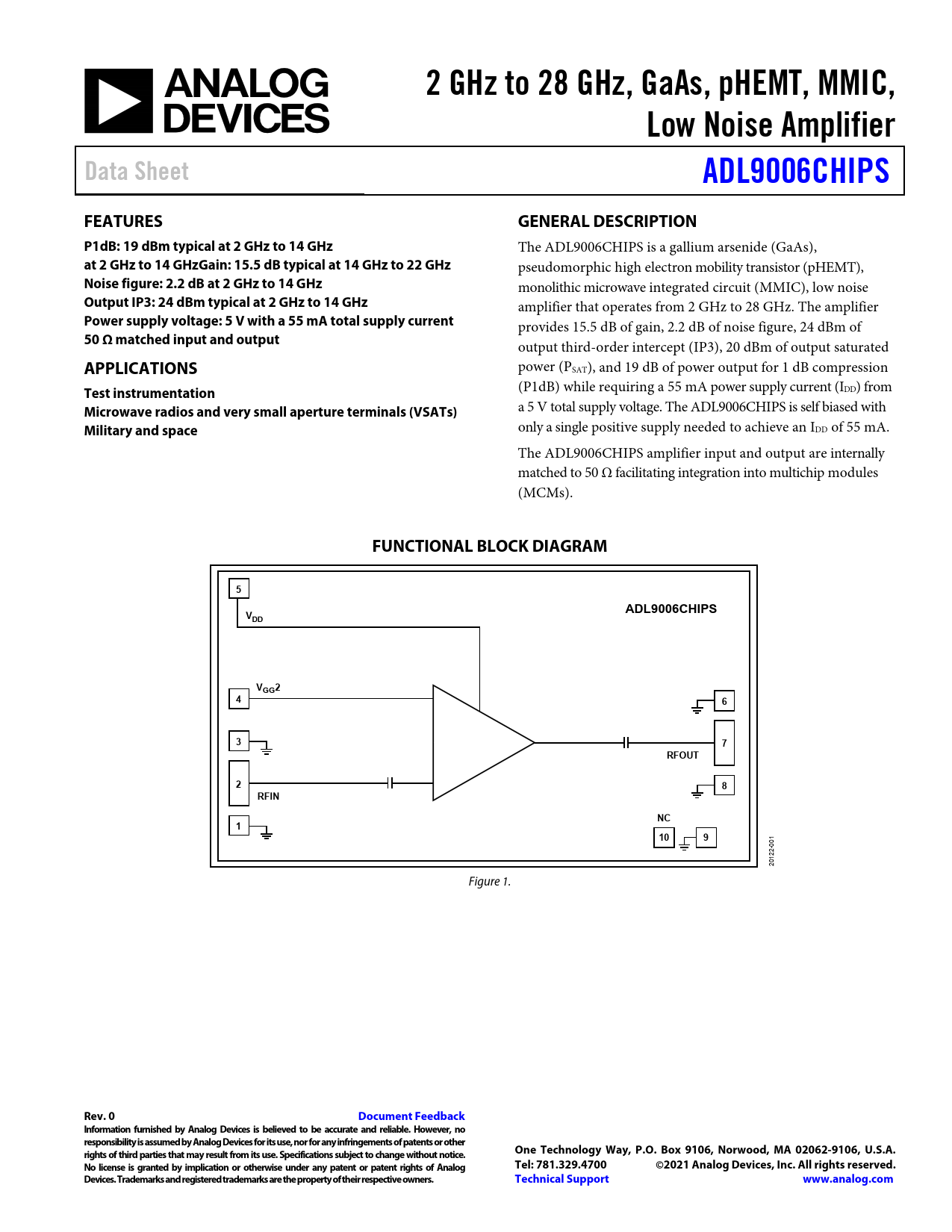

2 GHz to 28 GHz, GaAs, pHEMT, MMIC, Low Noise Amplifier Data Sheet ADL9006CHIPS FEATURES GENERAL DESCRIPTION P1dB: 19 dBm typical at 2 GHz to 14 GHz
The ADL9006CHIPS is a gallium arsenide (GaAs),
at 2 GHz to 14 GHzGain: 15.5 dB typical at 14 GHz to 22 GHz
pseudomorphic high electron mobility transistor (pHEMT),
Noise figure: 2.2 dB at 2 GHz to 14 GHz
monolithic microwave integrated circuit (MMIC), low noise
Output IP3: 24 dBm typical at 2 GHz to 14 GHz
amplifier that operates from 2 GHz to 28 GHz. The amplifier
Power supply voltage: 5 V with a 55 mA total supply current
provides 15.5 dB of gain, 2.2 dB of noise figure, 24 dBm of
50 Ω matched input and output
output third-order intercept (IP3), 20 dBm of output saturated
APPLICATIONS
power (PSAT), and 19 dB of power output for 1 dB compression
Test instrumentation
(P1dB) while requiring a 55 mA power supply current (IDD) from
Microwave radios and very small aperture terminals (VSATs)
a 5 V total supply voltage. The ADL9006CHIPS is self biased with
Military and space
only a single positive supply needed to achieve an IDD of 55 mA. The ADL9006CHIPS amplifier input and output are internally matched to 50 Ω facilitating integration into multichip modules (MCMs).
FUNCTIONAL BLOCK DIAGRAM 5 ADL9006CHIPS VDD VGG2 4 6 3 7 RFOUT 2 8 RFIN NC 1 10 9
1 00 2- 2012 Figure 1.
