Data Sheet. HMC8411LP2FE. TYPICAL PERFORMANCE CHARACTERISTICS. S11. S21 S22. SE (d. –10. ESPO. S21. S22. –20. –30. 100. 125. 150. 175. 200

Data Sheet HMC8411LP2FE TYPICAL PERFORMANCE CHARACTERISTICS S11 S21 S22 SE (d –10 ESPO S21 S22 –20 –30 100 125 150 175 200

Model Line for this Datasheet

Text Version of Document

Data Sheet HMC8411LP2FE TYPICAL PERFORMANCE CHARACTERISTICS 20 20 10 10 ) ) B B S11 0 0 S21 S22 SE (d SE (d N N S11 –10 –10 ESPO S21 ESPO R S22 R –20 –20 –30 –30 0 25 50 75 100 125 150 175 200
007
0 2 4 6 8 10 12 14 16
010
FREQUENCY (MHz)
15859-
FREQUENCY (GHz)

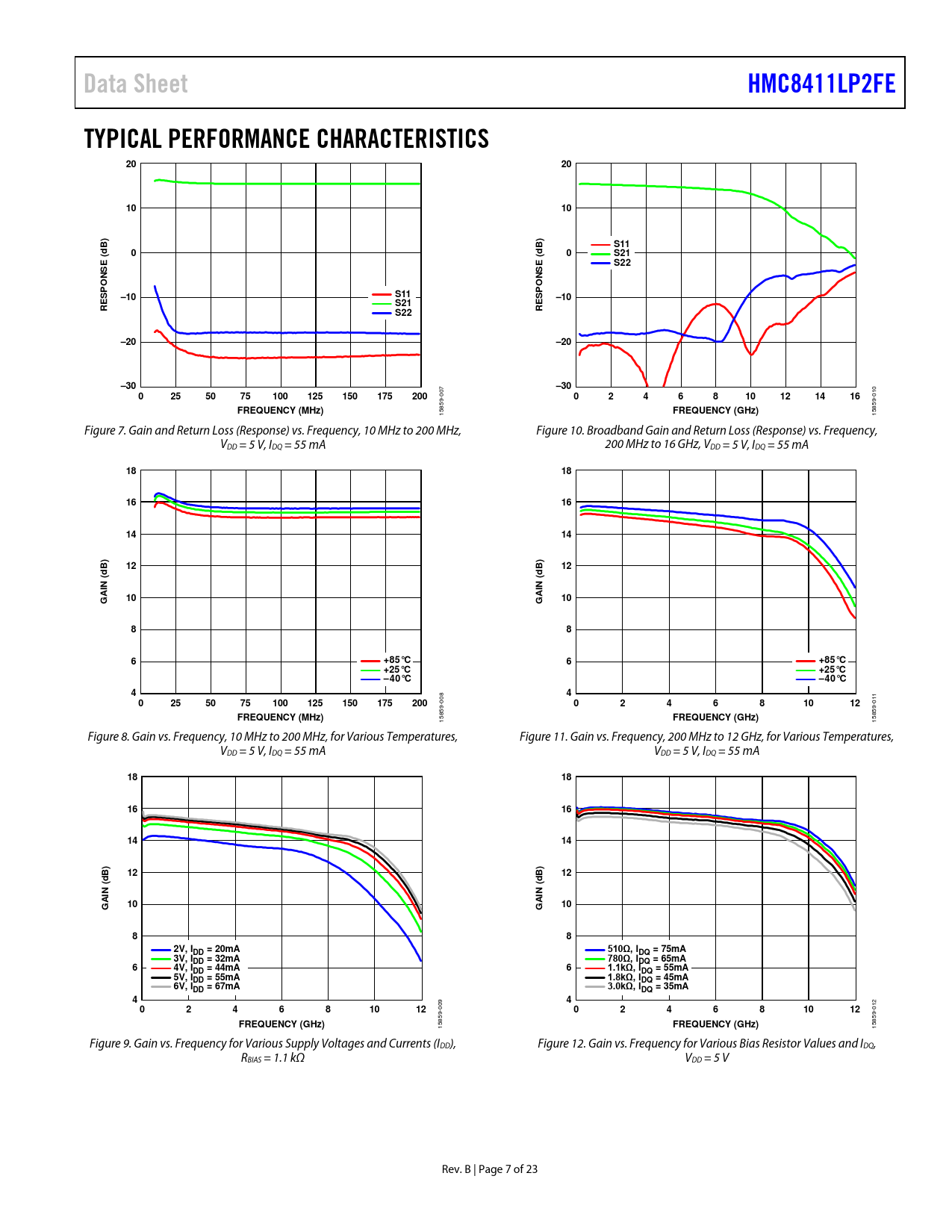

15859- Figure 7. Gain and Return Loss (Response) vs. Frequency, 10 MHz to 200 MHz, Figure 10. Broadband Gain and Return Loss (Response) vs. Frequency, VDD = 5 V, IDQ = 55 mA 200 MHz to 16 GHz, VDD = 5 V, IDQ = 55 mA
18 18 16 16 14 14 B) 12 B) 12 d d N ( N ( AI AI G 10 G 10 8 8 6 +85°C 6 +85°C +25°C +25°C –40°C –40°C 4 4
1 1
0 25 50 75 100 125 150 175 200
008
0 2 4 6 8 10 12
0
FREQUENCY (MHz)
15859-
FREQUENCY (GHz)
15859- Figure 8. Gain vs. Frequency, 10 MHz to 200 MHz, for Various Temperatures, Figure 11. Gain vs. Frequency, 200 MHz to 12 GHz, for Various Temperatures, VDD = 5 V, IDQ = 55 mA VDD = 5 V, IDQ = 55 mA
18 18 16 16 14 14 B) 12 B) 12 d d N ( N ( AI AI G 10 G 10 8 8 2V, IDD = 20mA 510Ω, IDQ = 75mA 3V, IDD = 32mA 780Ω, IDQ = 65mA 6 4V, IDD = 44mA 6 1.1kΩ, IDQ = 55mA 5V, IDD = 55mA 1.8kΩ, IDQ = 45mA 6V, IDD = 67mA 3.0kΩ, IDQ = 35mA 4 4 0 2 4 6 8 10 12
009
0 2 4 6 8 10 12
012
FREQUENCY (GHz)
15859-
FREQUENCY (GHz)
15859- Figure 9. Gain vs. Frequency for Various Supply Voltages and Currents (IDD), Figure 12. Gain vs. Frequency for Various Bias Resistor Values and IDQ, RBIAS = 1.1 kΩ VDD = 5 V Rev. B | Page 7 of 23 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 0.01 GHz to 1 GHz Frequency Range 1 GHz to 6 GHz Frequency Range 6 GHz to 10 GHz Frequency Range Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Recommended Bias Sequencing During Power-Up During Power-Down Typical Application Circuit Evaluation Board Outline Dimensions Ordering Guide
