Datasheet ADL7003 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 50 GHz to 95 GHz, GaAs, pHEMT, MMIC, Wideband Low Noise Amplifier |
| Pages / Page | 18 / 3 — Data Sheet. ADL7003. SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY RANGE. … |
| File Format / Size | PDF / 486 Kb |
| Document Language | English |

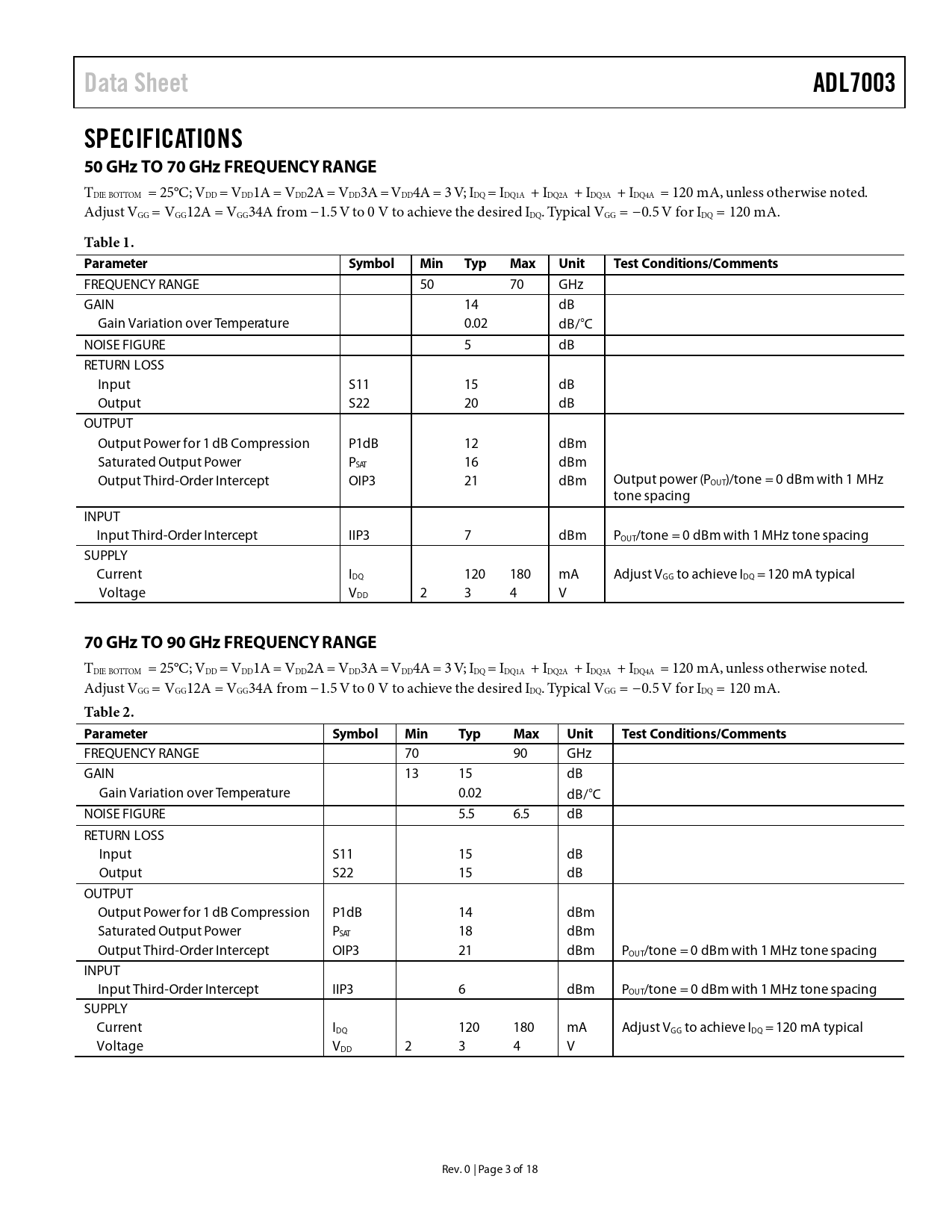

Data Sheet. ADL7003. SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL7003 SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY RANGE
TDIE BOTTOM = 25°C; VDD = VDD1A = VDD2A = VDD3A = VDD4A = 3 V; IDQ = IDQ1A + IDQ2A + IDQ3A + IDQ4A = 120 mA, unless otherwise noted. Adjust VGG = VGG12A = VGG34A from −1.5 V to 0 V to achieve the desired IDQ. Typical VGG = −0.5 V for IDQ = 120 mA.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 50 70 GHz GAIN 14 dB Gain Variation over Temperature 0.02 dB/°C NOISE FIGURE 5 dB RETURN LOSS Input S11 15 dB Output S22 20 dB OUTPUT Output Power for 1 dB Compression P1dB 12 dBm Saturated Output Power PSAT 16 dBm Output Third-Order Intercept OIP3 21 dBm Output power (POUT)/tone = 0 dBm with 1 MHz tone spacing INPUT Input Third-Order Intercept IIP3 7 dBm POUT/tone = 0 dBm with 1 MHz tone spacing SUPPLY Current IDQ 120 180 mA Adjust VGG to achieve IDQ = 120 mA typical Voltage VDD 2 3 4 V
70 GHz TO 90 GHz FREQUENCY RANGE
TDIE BOTTOM = 25°C; VDD = VDD1A = VDD2A = VDD3A = VDD4A = 3 V; IDQ = IDQ1A + IDQ2A + IDQ3A + IDQ4A = 120 mA, unless otherwise noted. Adjust VGG = VGG12A = VGG34A from −1.5 V to 0 V to achieve the desired IDQ. Typical VGG = −0.5 V for IDQ = 120 mA.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
