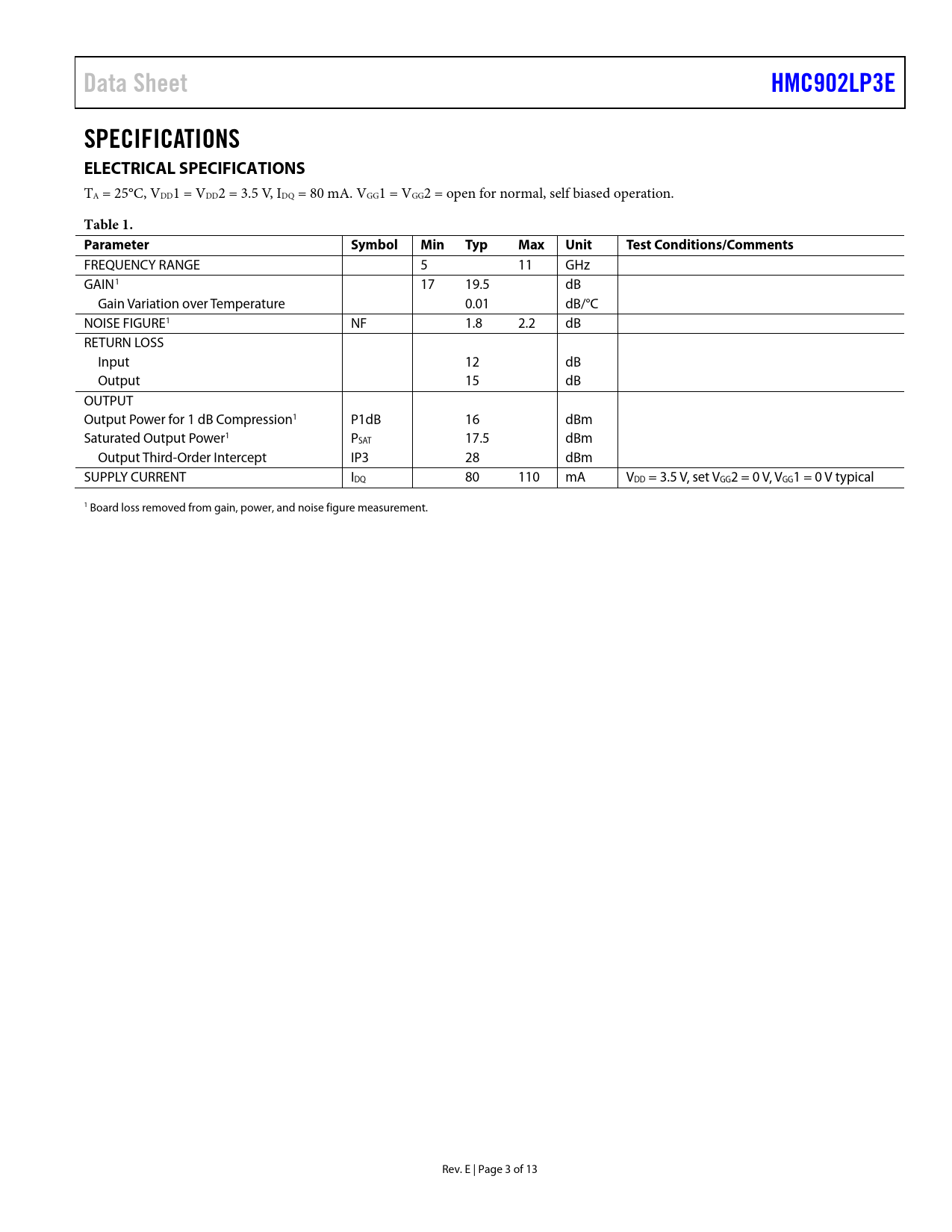

Data Sheet. HMC902LP3E. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Symbol. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC902LP3E SPECIFICATIONS ELECTRICAL SPECIFICATIONS
TA = 25°C, VDD1 = VDD2 = 3.5 V, IDQ = 80 mA. VGG1 = VGG2 = open for normal, self biased operation.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 5 11 GHz GAIN1 17 19.5 dB Gain Variation over Temperature 0.01 dB/°C NOISE FIGURE1 NF 1.8 2.2 dB RETURN LOSS Input 12 dB Output 15 dB OUTPUT Output Power for 1 dB Compression1 P1dB 16 dBm Saturated Output Power1 PSAT 17.5 dBm Output Third-Order Intercept IP3 28 dBm SUPPLY CURRENT IDQ 80 110 mA VDD = 3.5 V, set VGG2 = 0 V, VGG1 = 0 V typical 1 Board loss removed from gain, power, and noise figure measurement. Rev. E | Page 3 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION EVALUATION PRINTED CIRCUIT BOARD (PCB) APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
TA = 25°C, VDD1 = VDD2 = 3.5 V, IDQ = 80 mA. VGG1 = VGG2 = open for normal, self biased operation.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 5 11 GHz GAIN1 17 19.5 dB Gain Variation over Temperature 0.01 dB/°C NOISE FIGURE1 NF 1.8 2.2 dB RETURN LOSS Input 12 dB Output 15 dB OUTPUT Output Power for 1 dB Compression1 P1dB 16 dBm Saturated Output Power1 PSAT 17.5 dBm Output Third-Order Intercept IP3 28 dBm SUPPLY CURRENT IDQ 80 110 mA VDD = 3.5 V, set VGG2 = 0 V, VGG1 = 0 V typical 1 Board loss removed from gain, power, and noise figure measurement. Rev. E | Page 3 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION EVALUATION PRINTED CIRCUIT BOARD (PCB) APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
