Datasheet ADPA7006 (Analog Devices) - 7

Data Sheet ADPA7006 INTERFACE SCHEMATICS VGG1 GND

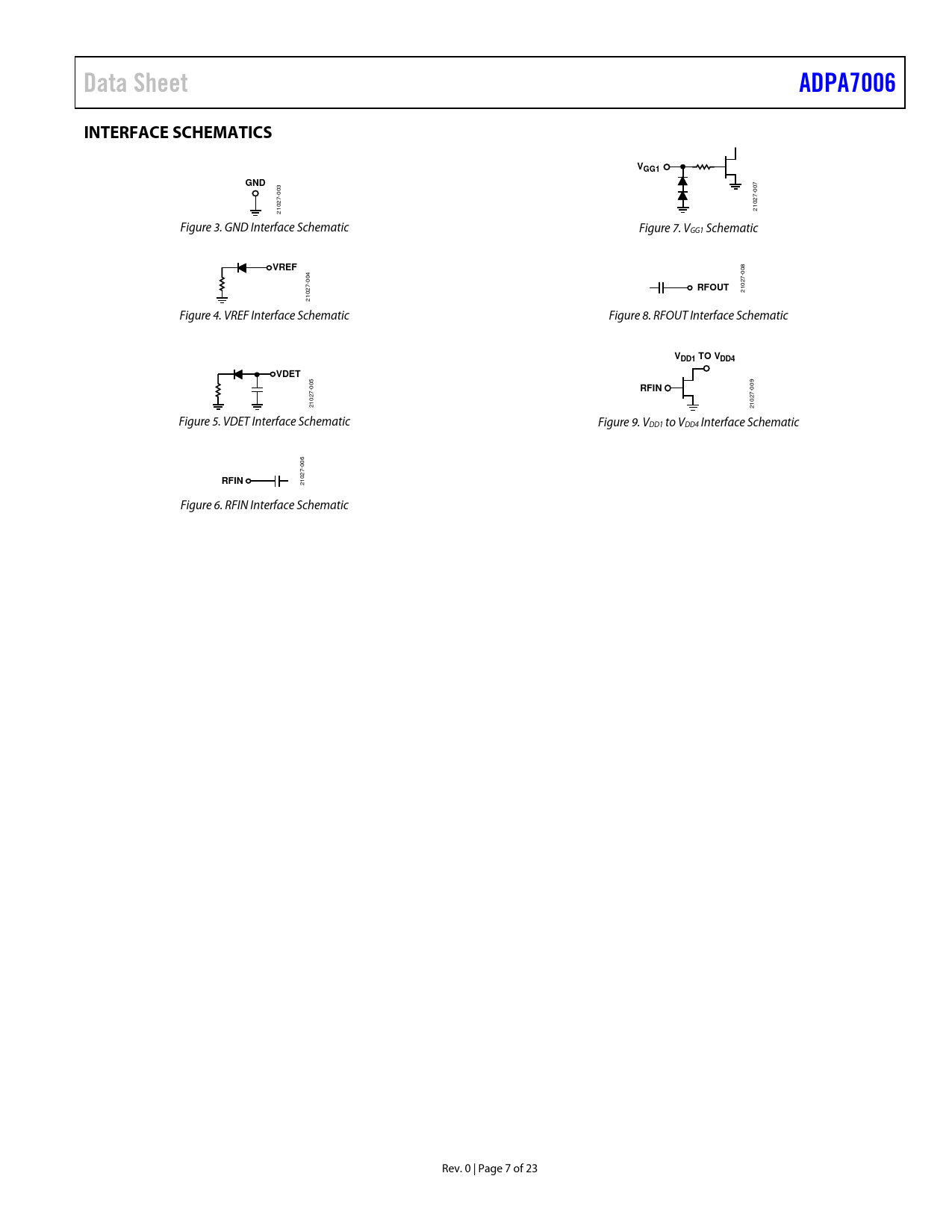

007 003 21027- 21027- Figure 3. GND Interface Schematic Figure 7. VGG1 Schematic
VREF
008 004
RFOUT
21027- 21027- Figure 4. VREF Interface Schematic Figure 8. RFOUT Interface Schematic
VDD1 TO VDD4 VDET
005
RFIN
009 21027- 21027- Figure 5. VDET Interface Schematic Figure 9. VDD1 to VDD4 Interface Schematic 006
RFIN
21027- Figure 6. RFIN Interface Schematic Rev. 0 | Page 7 of 23 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 18 GHz TO 24 GHz FREQUENCY RANGE 20 GHz TO 24 GHz FREQUENCY RANGE 24 GHz TO 34 GHz FREQUENCY RANGE 34 GHz TO 44 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS CONSTANT IDD OPERATION THEORY OF OPERATION APPLICATIONS INFORMATION BIASING PROCEDURES BIASING THE ADPA7006 WITH THE HMC980LP4E APPLICATION CIRCUIT SETUP LIMITING VGATE AND VNEG TO MEET ADPA7006 VGG1 ABSOLUTE MAXIMUM RATINGS REQUIREMENT HMC980LP4E BIAS SEQUENCE CONSTANT DRAIN CURRENT BIASING vs. CONSTANT GATE VOLTAGE BIASING OUTLINE DIMENSIONS ORDERING GUIDE
