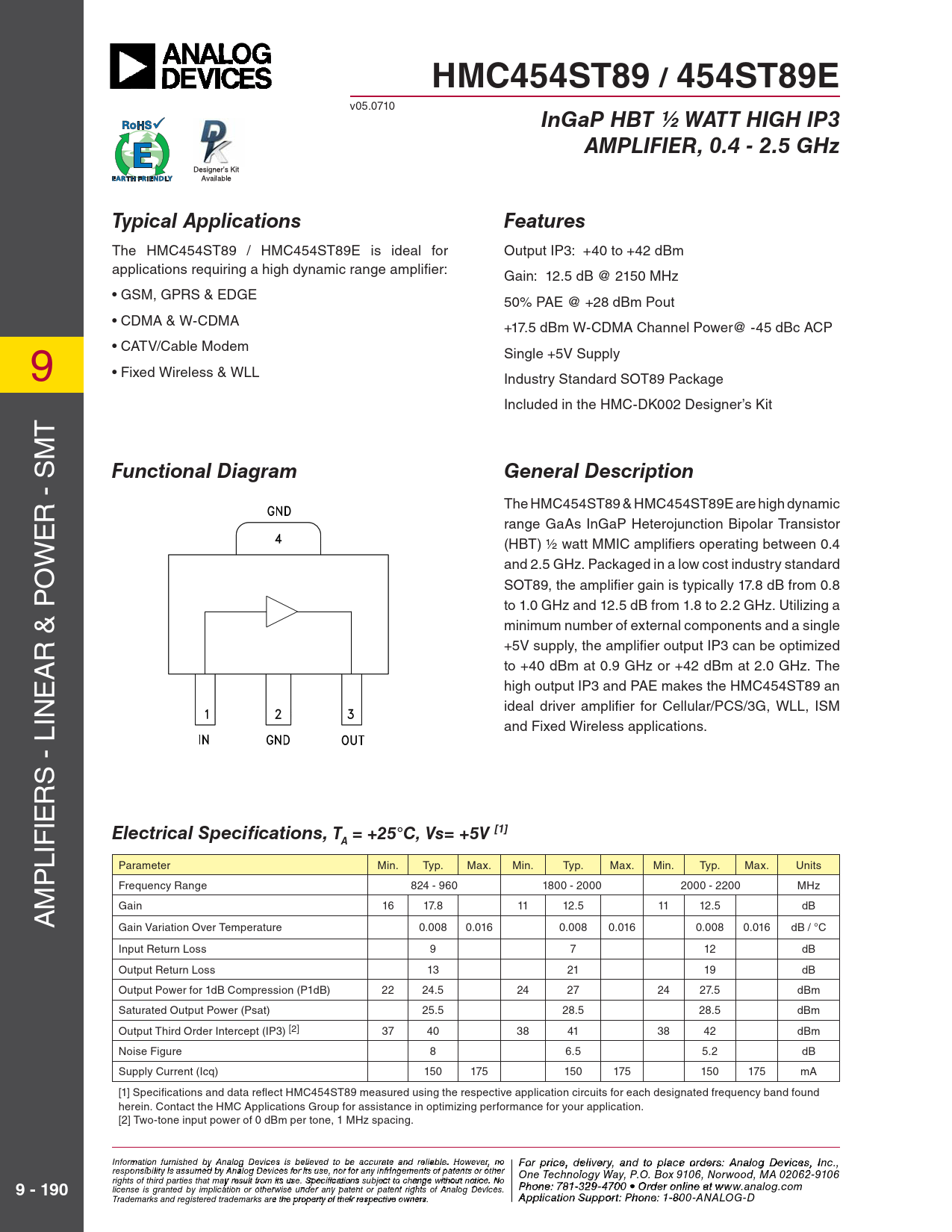

HMC454ST89 / 454ST89E
v05.0710
InGaP HBT ½ WATT HIGH IP3 AMPLIFIER, 0.4 - 2.5 GHz Typical Applications Features
The HMC454ST89 / HMC454ST89E is ideal for Output IP3: +40 to +42 dBm applications requiring a high dynamic range amplifi er: Gain: 12.5 dB @ 2150 MHz • GSM, GPRS & EDGE 50% PAE @ +28 dBm Pout • CDMA & W-CDMA +17.5 dBm W-CDMA Channel Power@ -45 dBc ACP • CATV/Cable Modem 9 Single +5V Supply • Fixed Wireless & WLL Industry Standard SOT89 Package Included in the HMC-DK002 Designer’s Kit T
Functional Diagram General Description
R - SM The HMC454ST89 & HMC454ST89E are high dynamic E range GaAs InGaP Heterojunction Bipolar Transistor (HBT) ½ watt MMIC amplifi ers operating between 0.4 W and 2.5 GHz. Packaged in a low cost industry standard O SOT89, the amplifi er gain is typically 17.8 dB from 0.8 to 1.0 GHz and 12.5 dB from 1.8 to 2.2 GHz. Utilizing a minimum number of external components and a single R & P +5V supply, the amplifi er output IP3 can be optimized A to +40 dBm at 0.9 GHz or +42 dBm at 2.0 GHz. The E high output IP3 and PAE makes the HMC454ST89 an IN ideal driver amplifi er for Cellular/PCS/3G, WLL, ISM and Fixed Wireless applications. S - L R IE IF
Electrical Specifi cations, T = +25°C, Vs= +5V [1] A
L Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units P Frequency Range 824 - 960 1800 - 2000 2000 - 2200 MHz M Gain 16 17.8 11 12.5 11 12.5 dB A Gain Variation Over Temperature 0.008 0.016 0.008 0.016 0.008 0.016 dB / °C Input Return Loss 9 7 12 dB Output Return Loss 13 21 19 dB Output Power for 1dB Compression (P1dB) 22 24.5 24 27 24 27.5 dBm Saturated Output Power (Psat) 25.5 28.5 28.5 dBm Output Third Order Intercept (IP3) [2] 37 40 38 41 38 42 dBm Noise Figure 8 6.5 5.2 dB Supply Current (Icq) 150 175 150 175 150 175 mA [1] Specifi cations and data refl ect HMC454ST89 measured using the respective application circuits for each designated frequency band found herein. Contact the HMC Applications Group for assistance in optimizing performance for your application. [2] Two-tone input power of 0 dBm per tone, 1 MHz spacing. Info F rmoatr pr ion f iurcne, de ished b ly iv A e n r al y o a g D n evd to p ices is bla eli c eve o ed t rde o be ras: H ccuratite tiatne M d reli iacr ble ow . Ho av wev e C er, n o o rpo Fora r t p iro ic n e ,, 2 d 0 eli A ve lrpha R y, and toad, C o place hoel rd m er s s fo : Ard, MA 01 nalog Devic 8 e 2 s 4 , Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rde hone r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .ehit r o t nilte in .c e ao t m
9 - 190
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r app tion Su s p @ po h rt itt : P ite ho .c ne o : 1m -800-ANALOG-D
