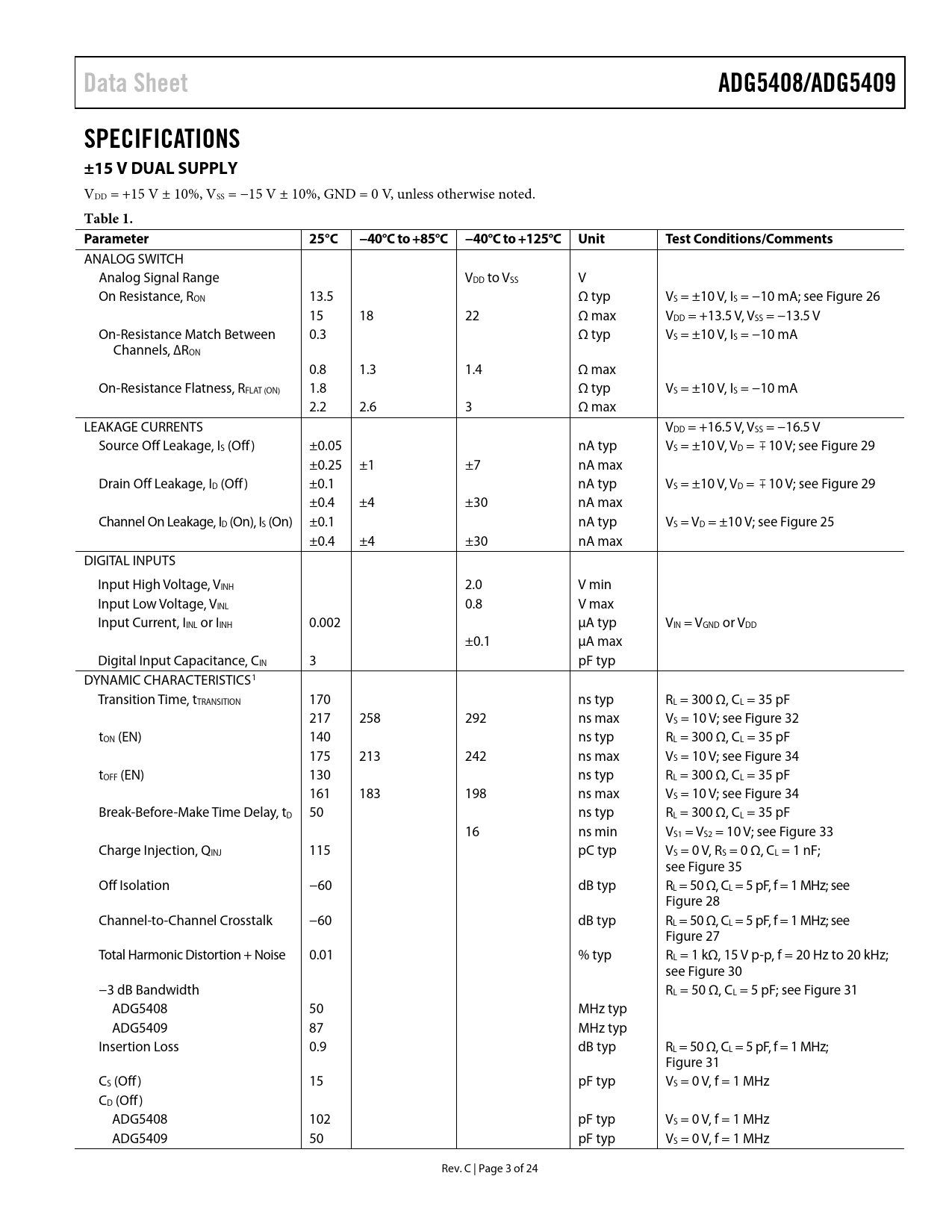

Data Sheet. ADG5408/ADG5409. SPECIFICATIONS ±15 V DUAL SUPPLY. Table 1. Parameter. 25°C −40°C to +85°C −40°C to +125°C Unit
