Datasheet ADG5408, ADG5409 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | High Voltage Latch-Up Proof, 4-/8-Channel Multiplexers |
| Pages / Page | 24 / 5 — Data Sheet. ADG5408/ADG5409. Parameter. 25°C −40°C to +85°C −40°C to … |
| Revision | C |
| File Format / Size | PDF / 413 Kb |
| Document Language | English |

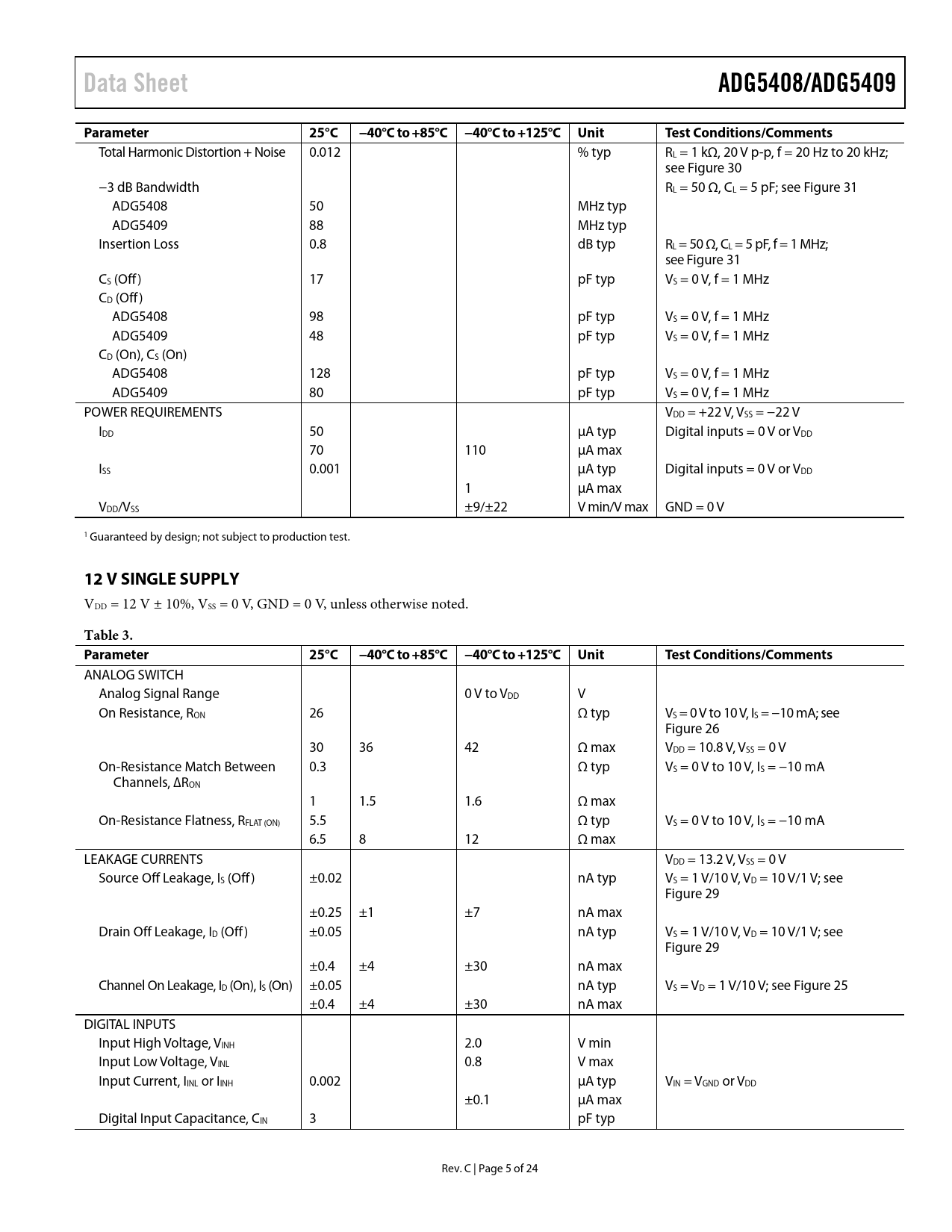

Data Sheet. ADG5408/ADG5409. Parameter. 25°C −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments. 12 V SINGLE SUPPLY
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16
Data Sheet ADG5408/ADG5409 Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
Total Harmonic Distortion + Noise 0.012 % typ RL = 1 kΩ, 20 V p-p, f = 20 Hz to 20 kHz; see Figure 30 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 31 ADG5408 50 MHz typ ADG5409 88 MHz typ Insertion Loss 0.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 CS (Off) 17 pF typ VS = 0 V, f = 1 MHz CD (Off) ADG5408 98 pF typ VS = 0 V, f = 1 MHz ADG5409 48 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) ADG5408 128 pF typ VS = 0 V, f = 1 MHz ADG5409 80 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +22 V, VSS = −22 V IDD 50 µA typ Digital inputs = 0 V or VDD 70 110 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 26 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 26 30 36 42 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between 0.3 Ω typ VS = 0 V to 10 V, IS = −10 mA Channels, ∆RON 1 1.5 1.6 Ω max On-Resistance Flatness, RFLAT (ON) 5.5 Ω typ VS = 0 V to 10 V, IS = −10 mA 6.5 8 12 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 29 ±0.25 ±1 ±7 nA max Drain Off Leakage, ID (Off) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 29 ±0.4 ±4 ±30 nA max Channel On Leakage, ID (On), IS (On) ±0.05 nA typ VS = VD = 1 V/10 V; see Figure 25 ±0.4 ±4 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ Rev. C | Page 5 of 24 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or D Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
