Datasheet ADG5408, ADG5409 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | High Voltage Latch-Up Proof, 4-/8-Channel Multiplexers |
| Pages / Page | 24 / 4 — ADG5408/ADG5409. Data Sheet. Parameter. 25°C −40°C to +85°C −40°C to … |
| Revision | C |
| File Format / Size | PDF / 413 Kb |
| Document Language | English |

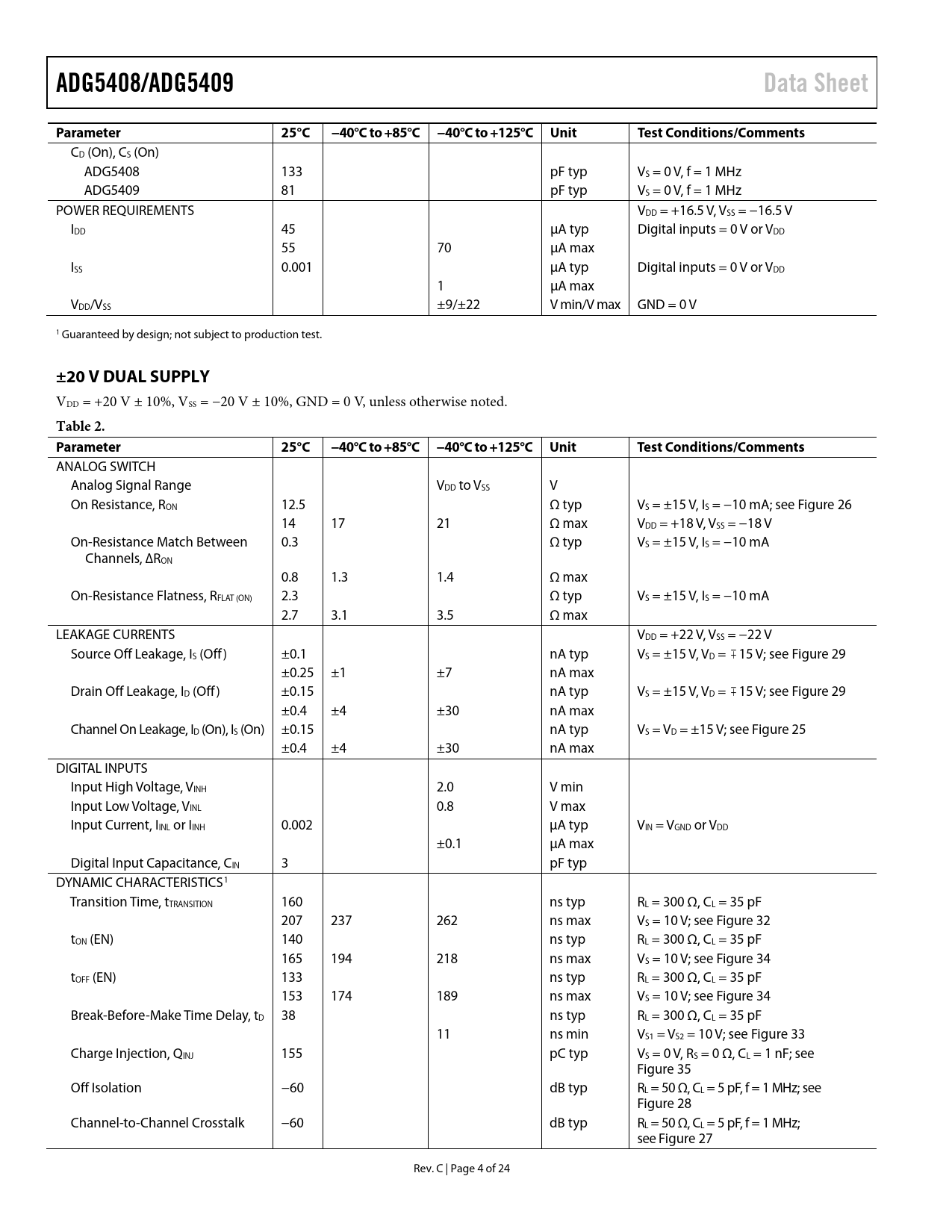

ADG5408/ADG5409. Data Sheet. Parameter. 25°C −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments. ±20 V DUAL SUPPLY
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 16 link to page 16 link to page 16 link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 16 link to page 16 link to page 5
ADG5408/ADG5409 Data Sheet Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
CD (On), CS (On) ADG5408 133 pF typ VS = 0 V, f = 1 MHz ADG5409 81 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 45 µA typ Digital inputs = 0 V or VDD 55 70 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
±20 V DUAL SUPPLY
VDD = +20 V ± 10%, VSS = −20 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 12.5 Ω typ VS = ±15 V, IS = −10 mA; see Figure 26 14 17 21 Ω max VDD = +18 V, VSS = −18 V On-Resistance Match Between 0.3 Ω typ VS = ±15 V, IS = −10 mA Channels, ∆RON 0.8 1.3 1.4 Ω max On-Resistance Flatness, RFLAT (ON) 2.3 Ω typ VS = ±15 V, IS = −10 mA 2.7 3.1 3.5 Ω max LEAKAGE CURRENTS VDD = +22 V, VSS = −22 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±15 V, VD = 15 V; see Figure 29 ±0.25 ±1 ±7 nA max Drain Off Leakage, ID (Off) ±0.15 nA typ VS = ±15 V, VD = 15 V; see Figure 29 ±0.4 ±4 ±30 nA max Channel On Leakage, ID (On), IS (On) ±0.15 nA typ VS = VD = ±15 V; see Figure 25 ±0.4 ±4 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 160 ns typ RL = 300 Ω, CL = 35 pF 207 237 262 ns max VS = 10 V; see Figure 32 tON (EN) 140 ns typ RL = 300 Ω, CL = 35 pF 165 194 218 ns max VS = 10 V; see Figure 34 tOFF (EN) 133 ns typ RL = 300 Ω, CL = 35 pF 153 174 189 ns max VS = 10 V; see Figure 34 Break-Before-Make Time Delay, tD 38 ns typ RL = 300 Ω, CL = 35 pF 11 ns min VS1 = VS2 = 10 V; see Figure 33 Charge Injection, QINJ 155 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 35 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Channel-to-Channel Crosstalk −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 27 Rev. C | Page 4 of 24 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or D Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
ADG5408/ADG5409 Data Sheet Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
CD (On), CS (On) ADG5408 133 pF typ VS = 0 V, f = 1 MHz ADG5409 81 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 45 µA typ Digital inputs = 0 V or VDD 55 70 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
±20 V DUAL SUPPLY
VDD = +20 V ± 10%, VSS = −20 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 12.5 Ω typ VS = ±15 V, IS = −10 mA; see Figure 26 14 17 21 Ω max VDD = +18 V, VSS = −18 V On-Resistance Match Between 0.3 Ω typ VS = ±15 V, IS = −10 mA Channels, ∆RON 0.8 1.3 1.4 Ω max On-Resistance Flatness, RFLAT (ON) 2.3 Ω typ VS = ±15 V, IS = −10 mA 2.7 3.1 3.5 Ω max LEAKAGE CURRENTS VDD = +22 V, VSS = −22 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±15 V, VD = 15 V; see Figure 29 ±0.25 ±1 ±7 nA max Drain Off Leakage, ID (Off) ±0.15 nA typ VS = ±15 V, VD = 15 V; see Figure 29 ±0.4 ±4 ±30 nA max Channel On Leakage, ID (On), IS (On) ±0.15 nA typ VS = VD = ±15 V; see Figure 25 ±0.4 ±4 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 160 ns typ RL = 300 Ω, CL = 35 pF 207 237 262 ns max VS = 10 V; see Figure 32 tON (EN) 140 ns typ RL = 300 Ω, CL = 35 pF 165 194 218 ns max VS = 10 V; see Figure 34 tOFF (EN) 133 ns typ RL = 300 Ω, CL = 35 pF 153 174 189 ns max VS = 10 V; see Figure 34 Break-Before-Make Time Delay, tD 38 ns typ RL = 300 Ω, CL = 35 pF 11 ns min VS1 = VS2 = 10 V; see Figure 33 Charge Injection, QINJ 155 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 35 Off Isolation −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Channel-to-Channel Crosstalk −60 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 27 Rev. C | Page 4 of 24 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or D Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
