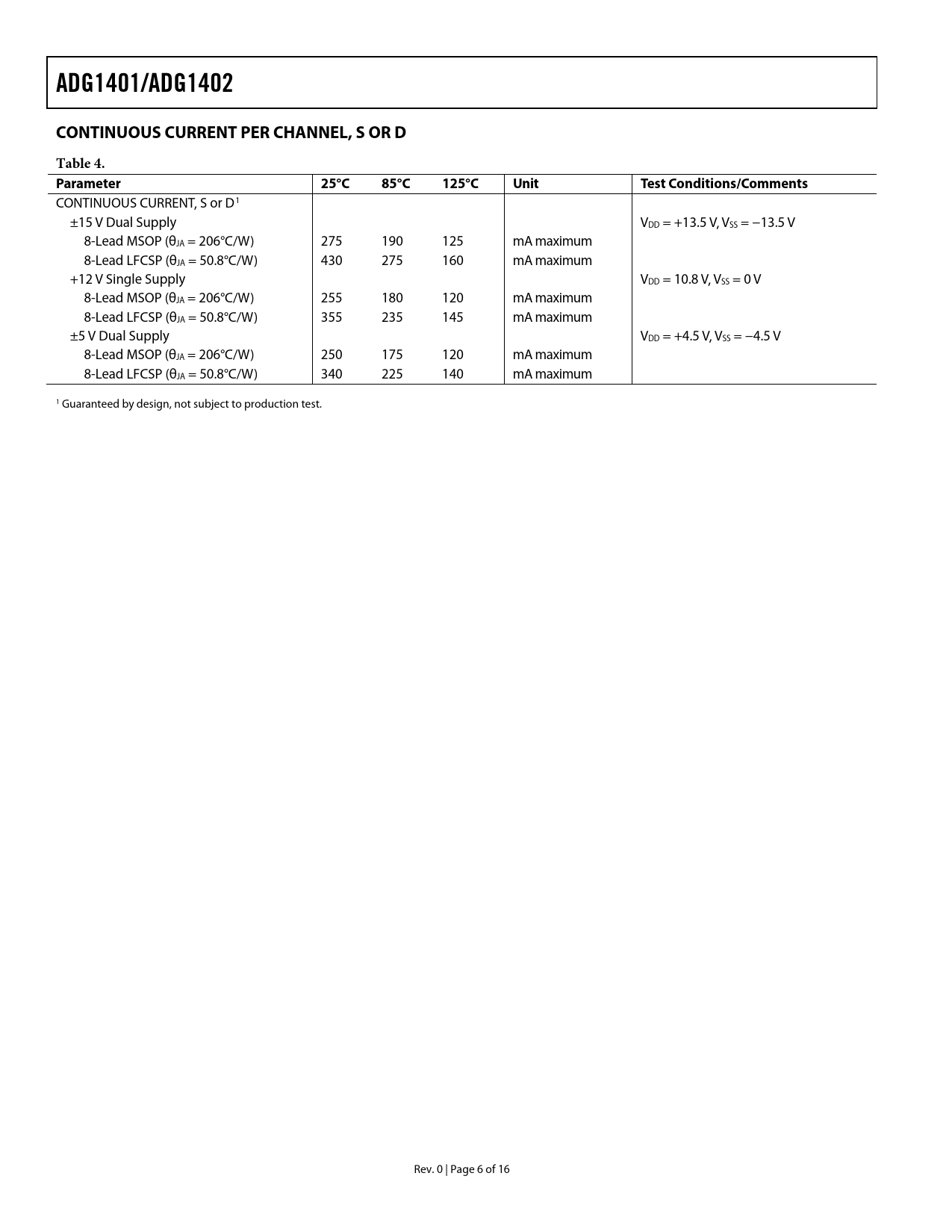

ADG1401/ADG1402. CONTINUOUS CURRENT PER CHANNEL, S OR D. Table 4. Parameter. 25°C 85°C 125°C Unit. Test. Conditions/Comments
