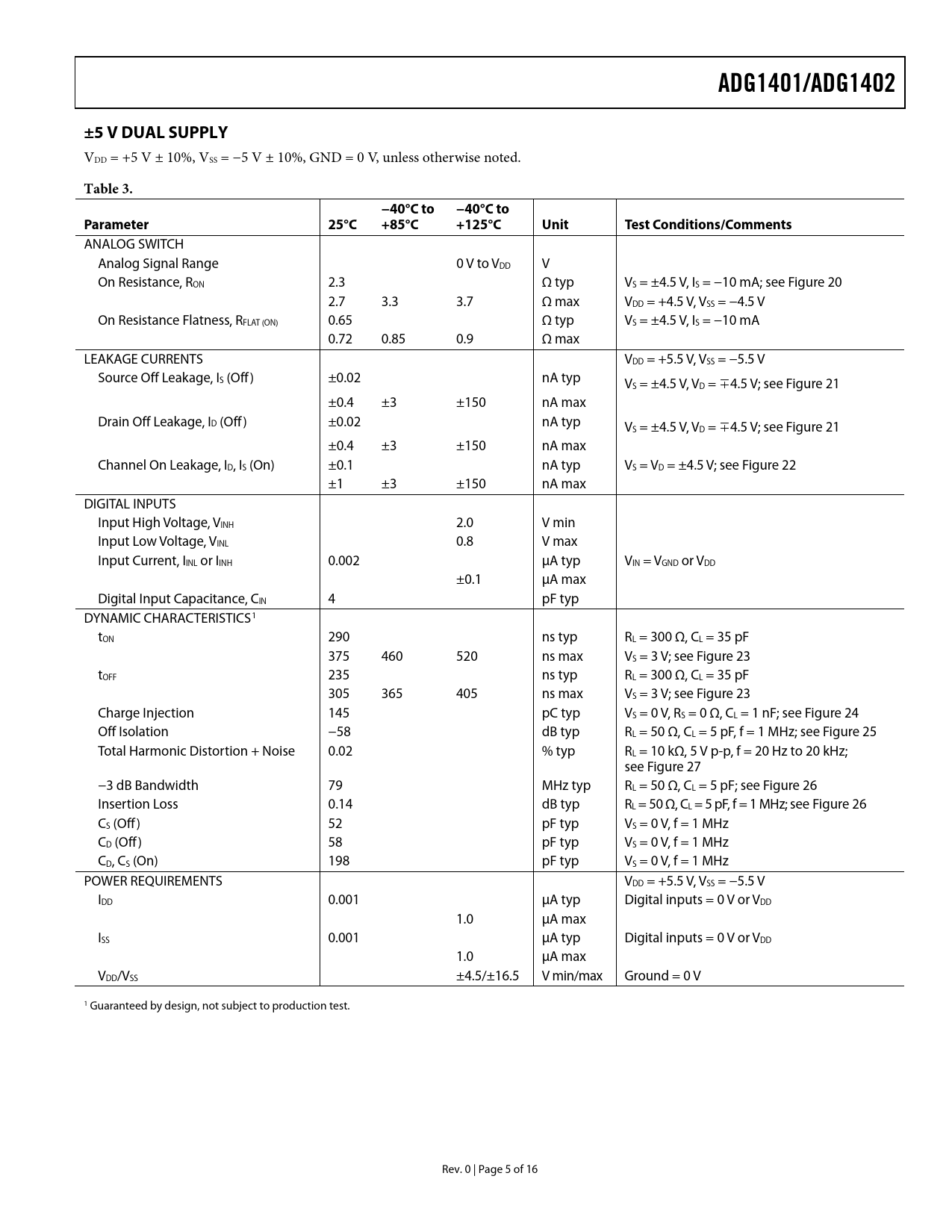

ADG1401/ADG1402 ±5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 3. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 2.3 Ω typ VS = ±4.5 V, IS = −10 mA; see Figure 20 2.7 3.3 3.7 Ω max VDD = +4.5 V, VSS = −4.5 V On Resistance Flatness, RFLAT (ON) 0.65 Ω typ VS = ±4.5 V, IS = −10 mA 0.72 0.85 0.9 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off ) ±0.02 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 21 ±0.4 ±3 ±150 nA max Drain Off Leakage, ID (Off ) ±0.02 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 21 ±0.4 ±3 ±150 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = ±4.5 V; see Figure 22 ±1 ±3 ±150 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 tON 290 ns typ RL = 300 Ω, CL = 35 pF 375 460 520 ns max VS = 3 V; see Figure 23 tOFF 235 ns typ RL = 300 Ω, CL = 35 pF 305 365 405 ns max VS = 3 V; see Figure 23 Charge Injection 145 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 24 Off Isolation −58 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 Total Harmonic Distortion + Noise 0.02 % typ RL = 10 kΩ, 5 V p-p, f = 20 Hz to 20 kHz; see Figure 27 −3 dB Bandwidth 79 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 26 Insertion Loss 0.14 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 26 CS (Off ) 52 pF typ VS = 0 V, f = 1 MHz CD (Off ) 58 pF typ VS = 0 V, f = 1 MHz CD, CS (On) 198 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max VDD/VSS ±4.5/±16.5 V min/max Ground = 0 V 1 Guaranteed by design, not subject to production test. Rev. 0 | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
