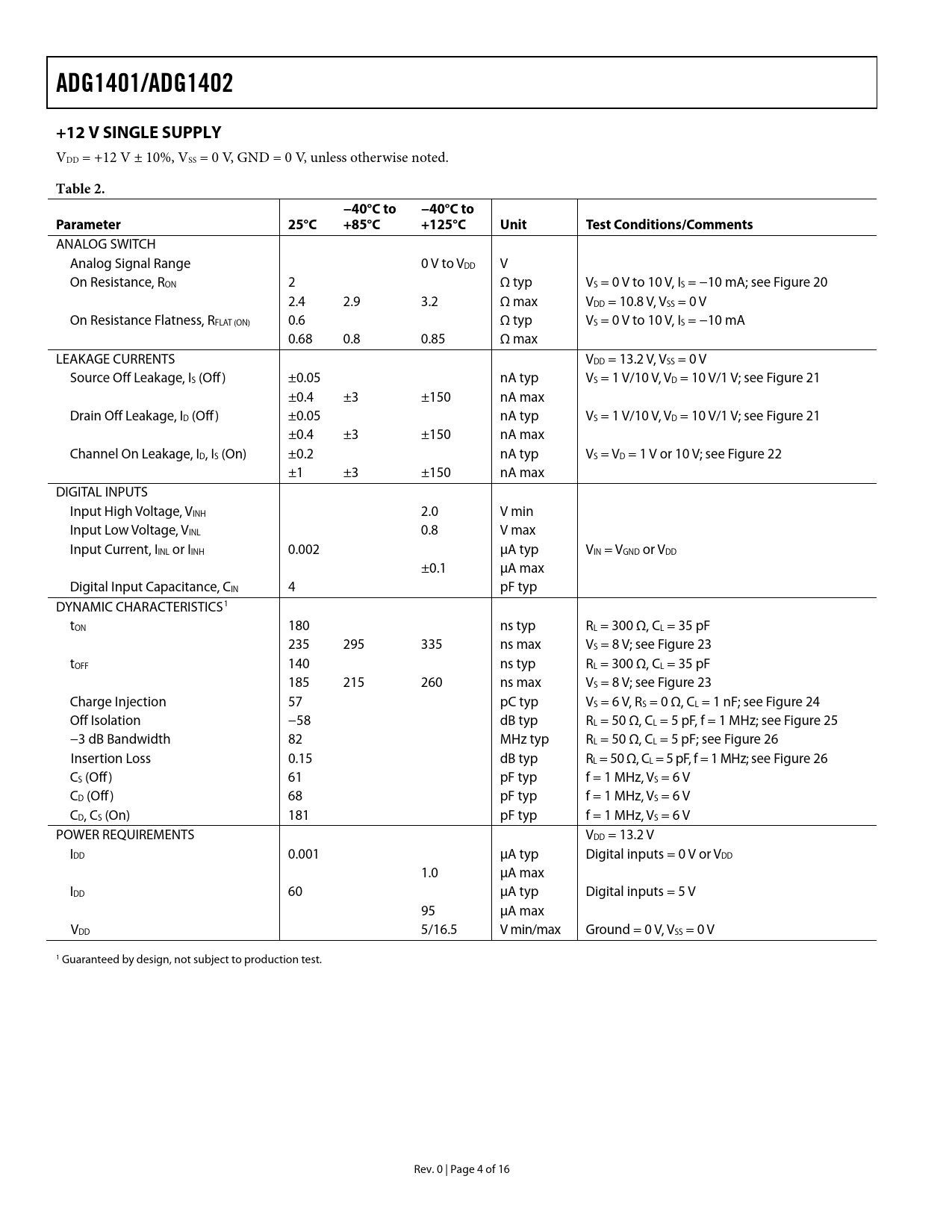

ADG1401/ADG1402 +12 V SINGLE SUPPLY
VDD = +12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 2 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 20 2.4 2.9 3.2 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Flatness, RFLAT (ON) 0.6 Ω typ VS = 0 V to 10 V, IS = −10 mA 0.68 0.8 0.85 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off ) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 21 ±0.4 ±3 ±150 nA max Drain Off Leakage, ID (Off ) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 21 ±0.4 ±3 ±150 nA max Channel On Leakage, ID, IS (On) ±0.2 nA typ VS = VD = 1 V or 10 V; see Figure 22 ±1 ±3 ±150 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 tON 180 ns typ RL = 300 Ω, CL = 35 pF 235 295 335 ns max VS = 8 V; see Figure 23 tOFF 140 ns typ RL = 300 Ω, CL = 35 pF 185 215 260 ns max VS = 8 V; see Figure 23 Charge Injection 57 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 24 Off Isolation −58 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 −3 dB Bandwidth 82 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 26 Insertion Loss 0.15 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 26 CS (Off ) 61 pF typ f = 1 MHz, VS = 6 V CD (Off ) 68 pF typ f = 1 MHz, VS = 6 V CD, CS (On) 181 pF typ f = 1 MHz, VS = 6 V POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD 60 μA typ Digital inputs = 5 V 95 μA max VDD 5/16.5 V min/max Ground = 0 V, VSS = 0 V 1 Guaranteed by design, not subject to production test. Rev. 0 | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
