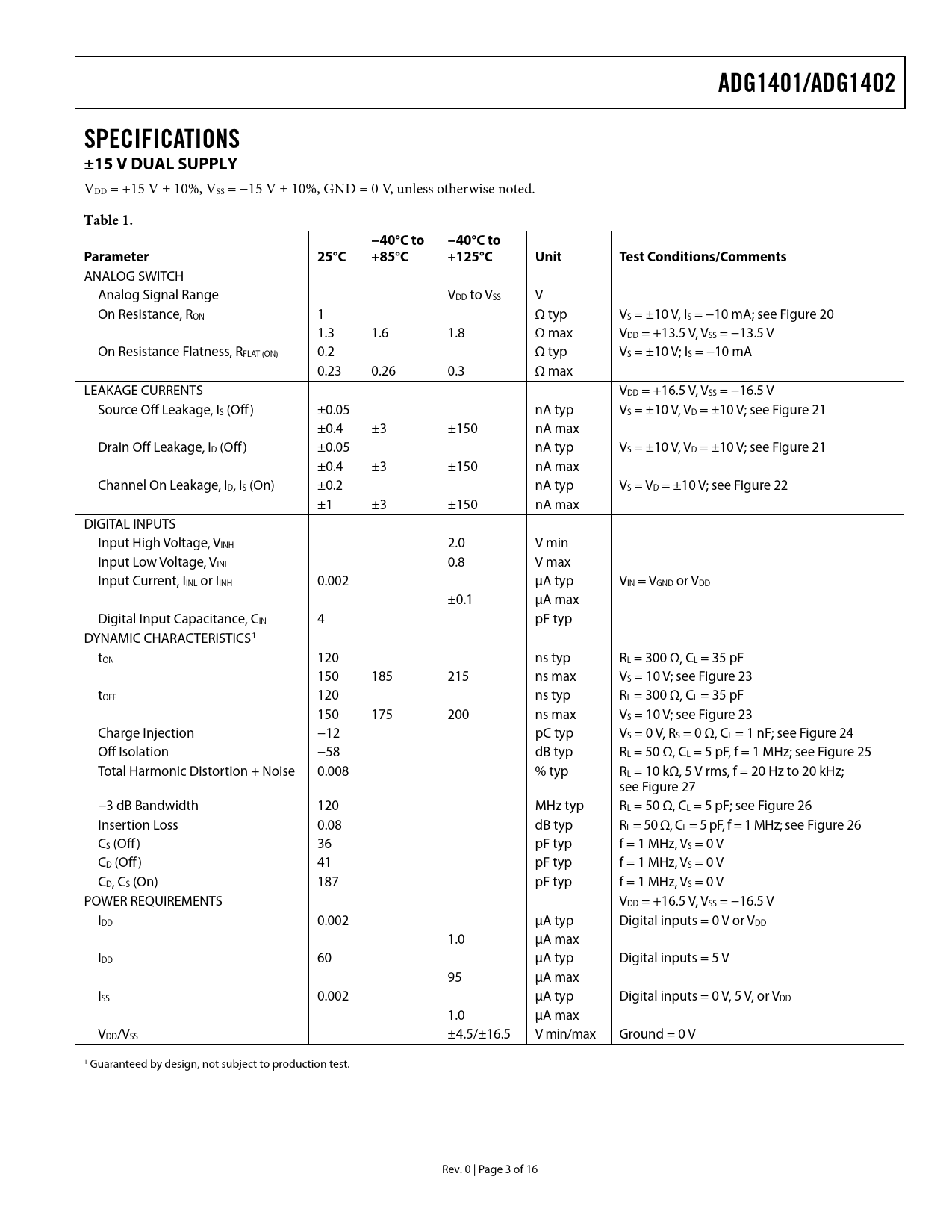

ADG1401/ADG1402 SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 1 Ω typ VS = ±10 V, IS = −10 mA; see Figure 20 1.3 1.6 1.8 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Flatness, RFLAT (ON) 0.2 Ω typ VS = ±10 V; IS = −10 mA 0.23 0.26 0.3 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off ) ±0.05 nA typ VS = ±10 V, VD = ±10 V; see Figure 21 ±0.4 ±3 ±150 nA max Drain Off Leakage, ID (Off ) ±0.05 nA typ VS = ±10 V, VD = ±10 V; see Figure 21 ±0.4 ±3 ±150 nA max Channel On Leakage, ID, IS (On) ±0.2 nA typ VS = VD = ±10 V; see Figure 22 ±1 ±3 ±150 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 tON 120 ns typ RL = 300 Ω, CL = 35 pF 150 185 215 ns max VS = 10 V; see Figure 23 tOFF 120 ns typ RL = 300 Ω, CL = 35 pF 150 175 200 ns max VS = 10 V; see Figure 23 Charge Injection −12 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 24 Off Isolation −58 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 Total Harmonic Distortion + Noise 0.008 % typ RL = 10 kΩ, 5 V rms, f = 20 Hz to 20 kHz; see Figure 27 −3 dB Bandwidth 120 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 26 Insertion Loss 0.08 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 26 CS (Off ) 36 pF typ f = 1 MHz, VS = 0 V CD (Off ) 41 pF typ f = 1 MHz, VS = 0 V CD, CS (On) 187 pF typ f = 1 MHz, VS = 0 V POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD 60 μA typ Digital inputs = 5 V 95 μA max ISS 0.002 μA typ Digital inputs = 0 V, 5 V, or VDD 1.0 μA max VDD/VSS ±4.5/±16.5 V min/max Ground = 0 V 1 Guaranteed by design, not subject to production test. Rev. 0 | Page 3 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY +12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
