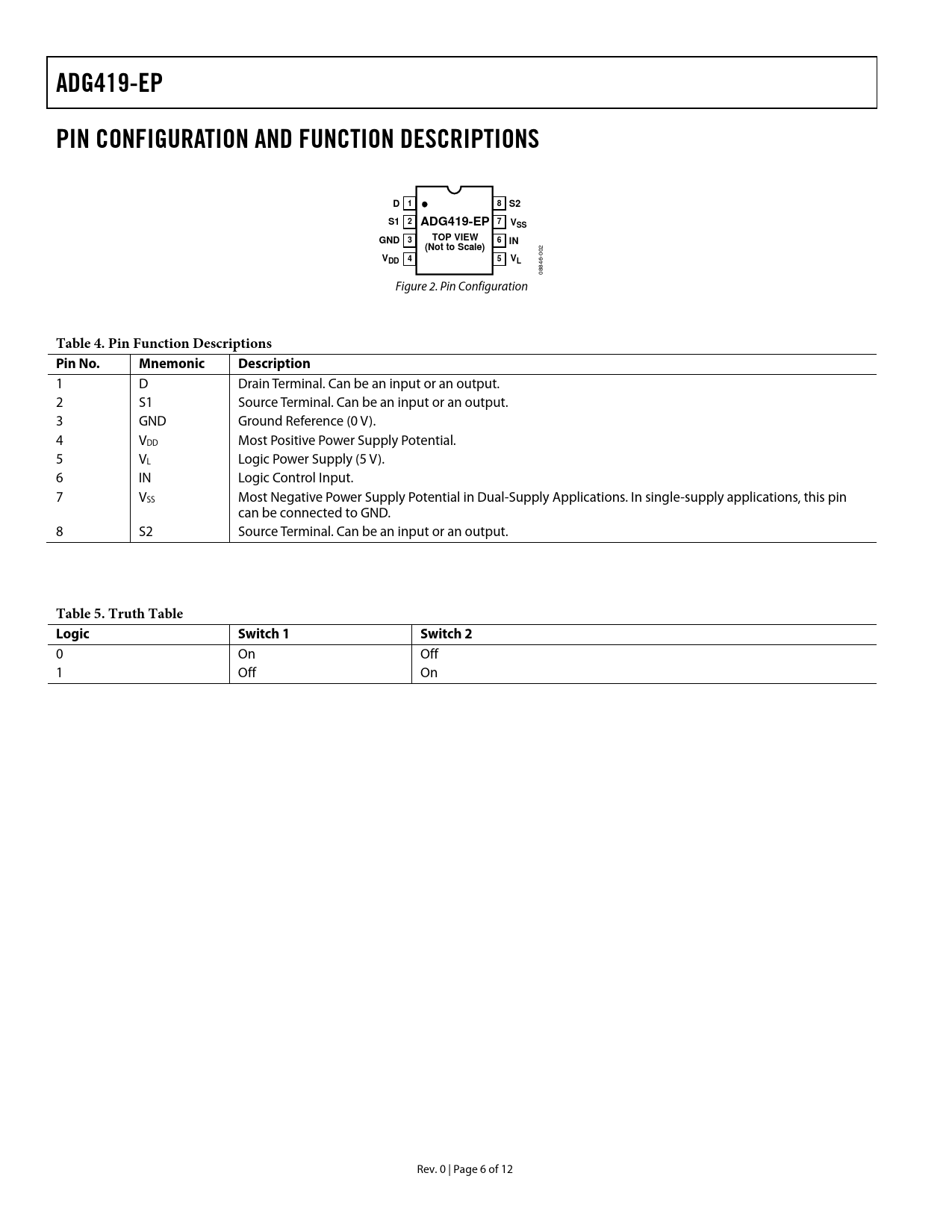

ADG419-EP. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. D 1. S1 2 ADG419-EP 7 VSS. GND 3. TOP VIEW. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
ADG419-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS D 1 8 S2 S1 2 ADG419-EP 7 VSS GND 3 TOP VIEW 6 IN (Not to Scale)
2 00
V 4 5 DD VL
6- 84 08 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 D Drain Terminal. Can be an input or an output. 2 S1 Source Terminal. Can be an input or an output. 3 GND Ground Reference (0 V). 4 VDD Most Positive Power Supply Potential. 5 VL Logic Power Supply (5 V). 6 IN Logic Control Input. 7 VSS Most Negative Power Supply Potential in Dual-Supply Applications. In single-supply applications, this pin can be connected to GND. 8 S2 Source Terminal. Can be an input or an output.
Table 5. Truth Table Logic Switch 1 Switch 2
0 On Off 1 Off On Rev. 0 | Page 6 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
