Datasheet ADG508A, ADG509A (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | CMOS 4-/8-Channel Analog Multiplexers |
| Pages / Page | 16 / 6 — ADG508A/ADG509A. ADG508A/. ADG509A. K Version. B Version. T Version. … |
| Revision | D |
| File Format / Size | PDF / 390 Kb |
| Document Language | English |

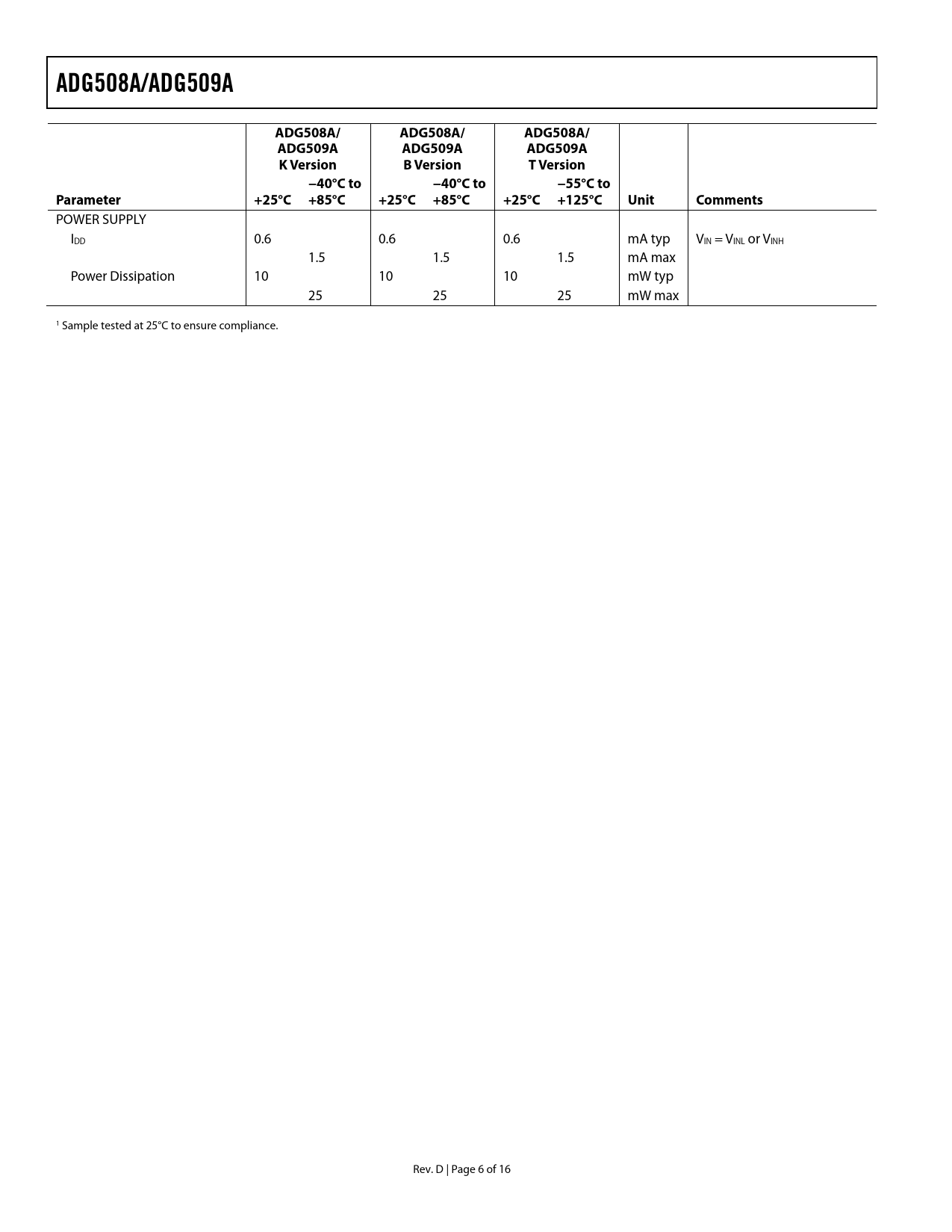

ADG508A/ADG509A. ADG508A/. ADG509A. K Version. B Version. T Version. −40°C to. −55°C to. Parameter. +25°C. +85°C. +125°C. Unit Comments
Model Line for this Datasheet
Text Version of Document
ADG508A/ADG509A ADG508A/ ADG508A/ ADG508A/ ADG509A ADG509A ADG509A K Version B Version T Version −40°C to −40°C to −55°C to Parameter +25°C +85°C +25°C +85°C +25°C +125°C Unit Comments
POWER SUPPLY IDD 0.6 0.6 0.6 mA typ VIN = VINL or VINH 1.5 1.5 1.5 mA max Power Dissipation 10 10 10 mW typ 25 25 25 mW max 1 Sample tested at 25°C to ensure compliance. Rev. D | Page 6 of 16 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS SINGLE-SUPPLY OCTAL DAC APPLICATION OUTLINE DIMENSIONS ORDERING GUIDE
