ADG508A/ADG509A. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Ratings. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 7 link to page 7

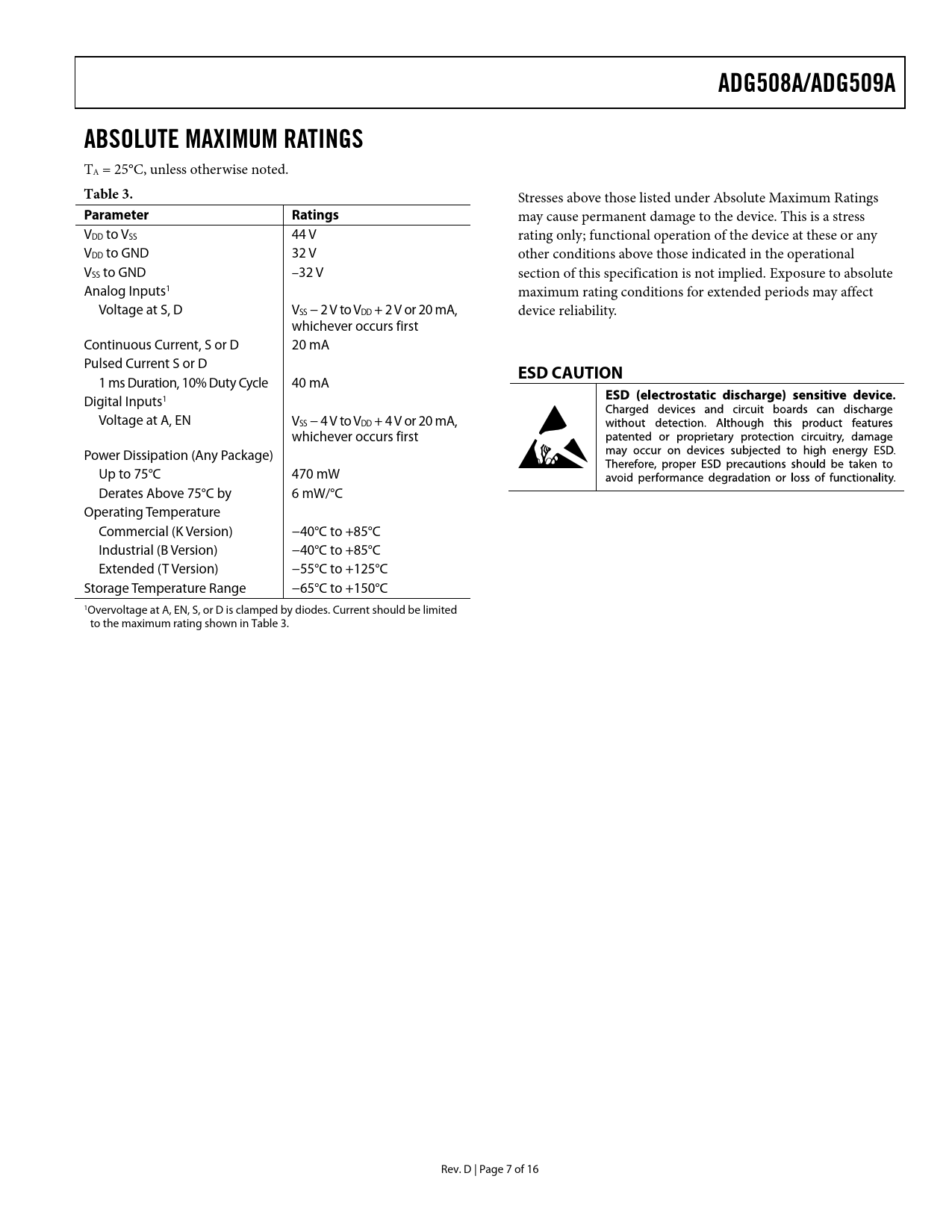

ADG508A/ADG509A ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Ratings
may cause permanent damage to the device. This is a stress VDD to VSS 44 V rating only; functional operation of the device at these or any VDD to GND 32 V other conditions above those indicated in the operational VSS to GND –32 V section of this specification is not implied. Exposure to absolute Analog Inputs1 maximum rating conditions for extended periods may affect Voltage at S, D VSS − 2 V to VDD + 2 V or 20 mA, device reliability. whichever occurs first Continuous Current, S or D 20 mA Pulsed Current S or D
ESD CAUTION
1 ms Duration, 10% Duty Cycle 40 mA Digital Inputs1 Voltage at A, EN VSS − 4 V to VDD + 4 V or 20 mA, whichever occurs first Power Dissipation (Any Package) Up to 75°C 470 mW Derates Above 75°C by 6 mW/°C Operating Temperature Commercial (K Version) −40°C to +85°C Industrial (B Version) −40°C to +85°C Extended (T Version) −55°C to +125°C Storage Temperature Range −65°C to +150°C 1Overvoltage at A, EN, S, or D is clamped by diodes. Current should be limited to the maximum rating shown in Table 3. Rev. D | Page 7 of 16 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS SINGLE-SUPPLY OCTAL DAC APPLICATION OUTLINE DIMENSIONS ORDERING GUIDE
