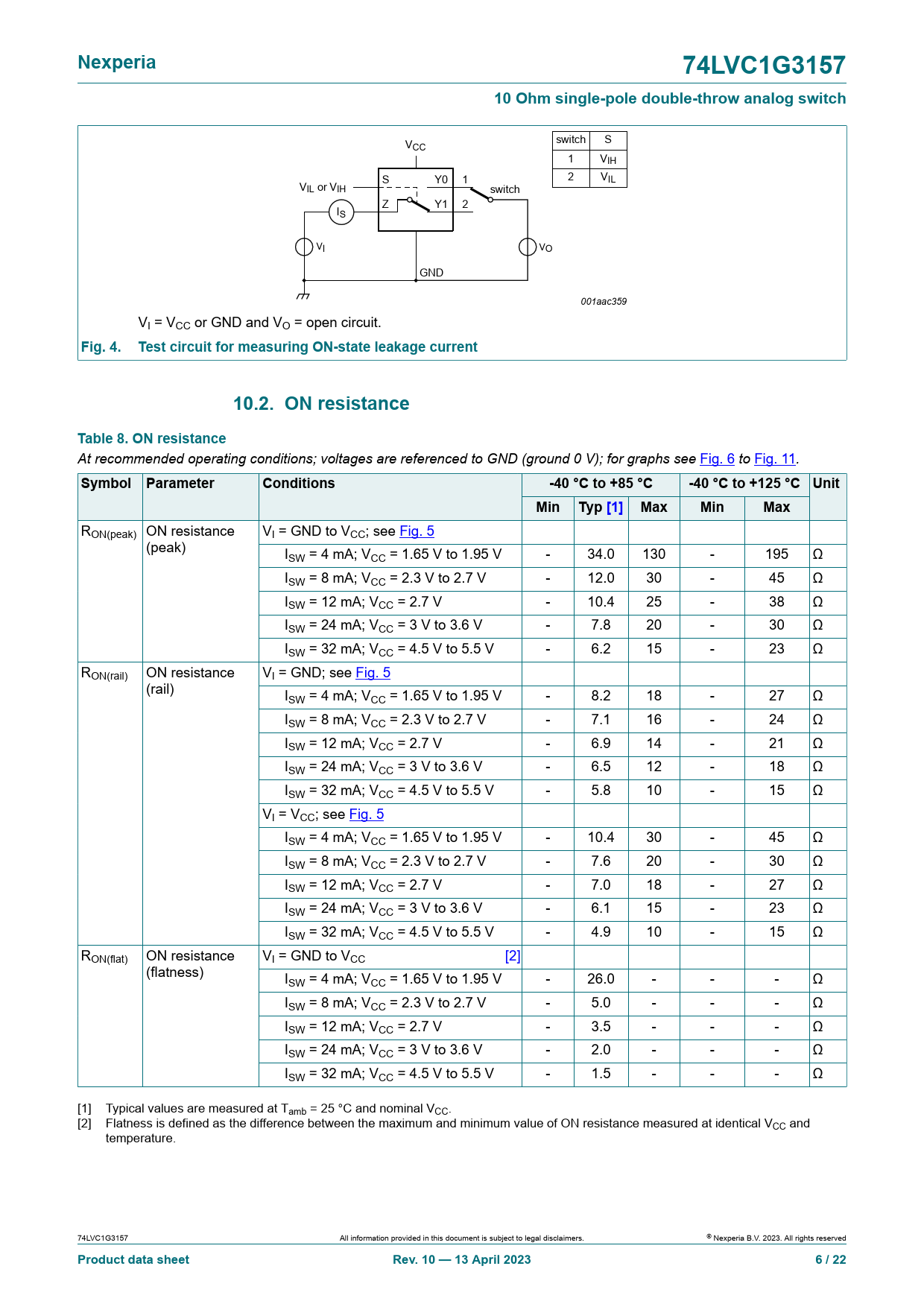

Nexperia 74LVC1G3157 10 Ohm single-pole double-throw analog switch
V switch S CC 1 VIH S Y0 1 2 VIL VIL or VIH switch Z Y1 2 IS VI VO GND 001aac359 VI = VCC or GND and VO = open circuit.
Fig. 4. Test circuit for measuring ON-state leakage current 10.2. ON resistance Table 8. ON resistance
At recommended operating conditions; voltages are referenced to GND (ground 0 V); for graphs see Fig. 6 to Fig. 11.
Symbol Parameter Conditions -40 °C to +85 °C -40 °C to +125 °C Unit Min Typ [1] Max Min Max
RON(peak) ON resistance VI = GND to VCC; see Fig. 5 (peak) ISW = 4 mA; VCC = 1.65 V to 1.95 V - 34.0 130 - 195 Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 12.0 30 - 45 Ω ISW = 12 mA; VCC = 2.7 V - 10.4 25 - 38 Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 7.8 20 - 30 Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 6.2 15 - 23 Ω RON(rail) ON resistance VI = GND; see Fig. 5 (rail) ISW = 4 mA; VCC = 1.65 V to 1.95 V - 8.2 18 - 27 Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 7.1 16 - 24 Ω ISW = 12 mA; VCC = 2.7 V - 6.9 14 - 21 Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 6.5 12 - 18 Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 5.8 10 - 15 Ω VI = VCC; see Fig. 5 ISW = 4 mA; VCC = 1.65 V to 1.95 V - 10.4 30 - 45 Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 7.6 20 - 30 Ω ISW = 12 mA; VCC = 2.7 V - 7.0 18 - 27 Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 6.1 15 - 23 Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 4.9 10 - 15 Ω RON(flat) ON resistance VI = GND to VCC [2] (flatness) ISW = 4 mA; VCC = 1.65 V to 1.95 V - 26.0 - - - Ω ISW = 8 mA; VCC = 2.3 V to 2.7 V - 5.0 - - - Ω ISW = 12 mA; VCC = 2.7 V - 3.5 - - - Ω ISW = 24 mA; VCC = 3 V to 3.6 V - 2.0 - - - Ω ISW = 32 mA; VCC = 4.5 V to 5.5 V - 1.5 - - - Ω [1] Typical values are measured at Tamb = 25 °C and nominal VCC. [2] Flatness is defined as the dif erence between the maximum and minimum value of ON resistance measured at identical VCC and temperature. 74LVC1G3157 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2023. Al rights reserved
Product data sheet Rev. 10 — 13 April 2023 6 / 22
