Datasheet MOC3060, MOC3061, MOC3062, MOC3063 (Isocom) - 9
| Manufacturer | Isocom |
| Description | Zero Crossing Triac Output, 6 Pin |
| Pages / Page | 11 / 9 — MOC306x. TAPE AND REEL PACKAGING. Dimension. Description. Symbol. mm … |
| File Format / Size | PDF / 3.2 Mb |
| Document Language | English |

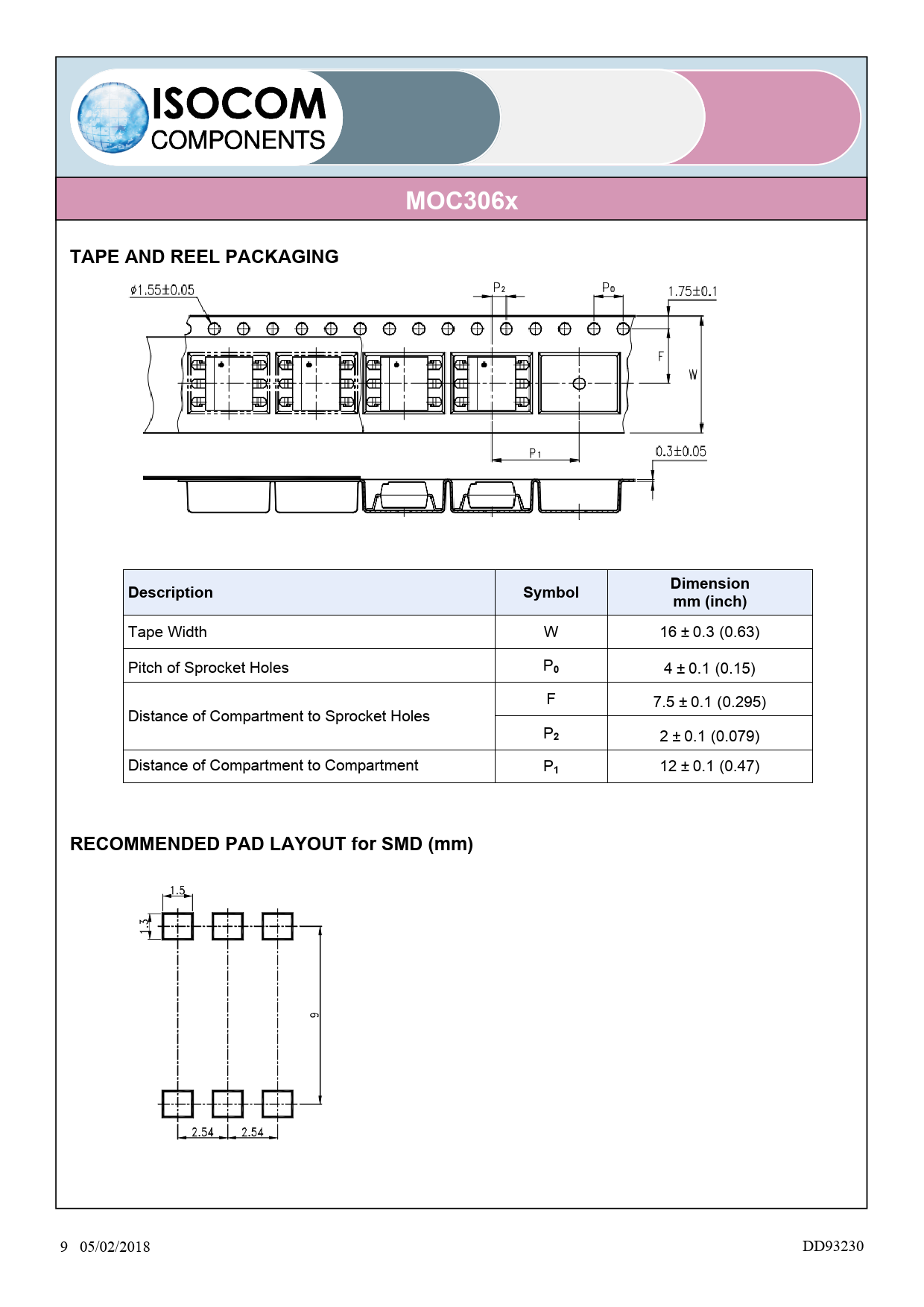

MOC306x. TAPE AND REEL PACKAGING. Dimension. Description. Symbol. mm (inch). RECOMMENDED PAD LAYOUT for SMD (mm)
Model Line for this Datasheet
Text Version of Document
MOC306x TAPE AND REEL PACKAGING Dimension Description Symbol mm (inch)
Tape Width W 16 ± 0.3 (0.63)
Pitch of Sprocket Holes P
0
4 ± 0.1 (0.15)
F 7.5 ± 0.1 (0.295) Distance of Compartment to Sprocket Holes
P
2
2 ± 0.1 (0.079)
Distance of Compartment to Compartment P
1
12 ± 0.1 (0.47)
RECOMMENDED PAD LAYOUT for SMD (mm)
9 05/02/2018 DD93230
Tape Width W 16 ± 0.3 (0.63)
Pitch of Sprocket Holes P
0
4 ± 0.1 (0.15)
F 7.5 ± 0.1 (0.295) Distance of Compartment to Sprocket Holes
P
2
2 ± 0.1 (0.079)
Distance of Compartment to Compartment P
1
12 ± 0.1 (0.47)
RECOMMENDED PAD LAYOUT for SMD (mm)
9 05/02/2018 DD93230
