Datasheet TSB711, TSB711A TSB712, TSB712A (STMicroelectronics) - 8
| Manufacturer | STMicroelectronics |
| Description | Precision Rail-To-Rail Input/Output 36 V, 6 MHz Op Amps |
| Pages / Page | 32 / 8 — TSB711, TSB711A, TSB712, TSB712A. Typical performance characteristics. … |
| File Format / Size | PDF / 4.3 Mb |
| Document Language | English |
TSB711, TSB711A, TSB712, TSB712A. Typical performance characteristics. Figure 4. Input offset voltage distribution at V
Model Line for this Datasheet
Text Version of Document
TSB711, TSB711A, TSB712, TSB712A Typical performance characteristics 4 Typical performance characteristics
RL connected to VCC / 2 (unless otherwise specified).

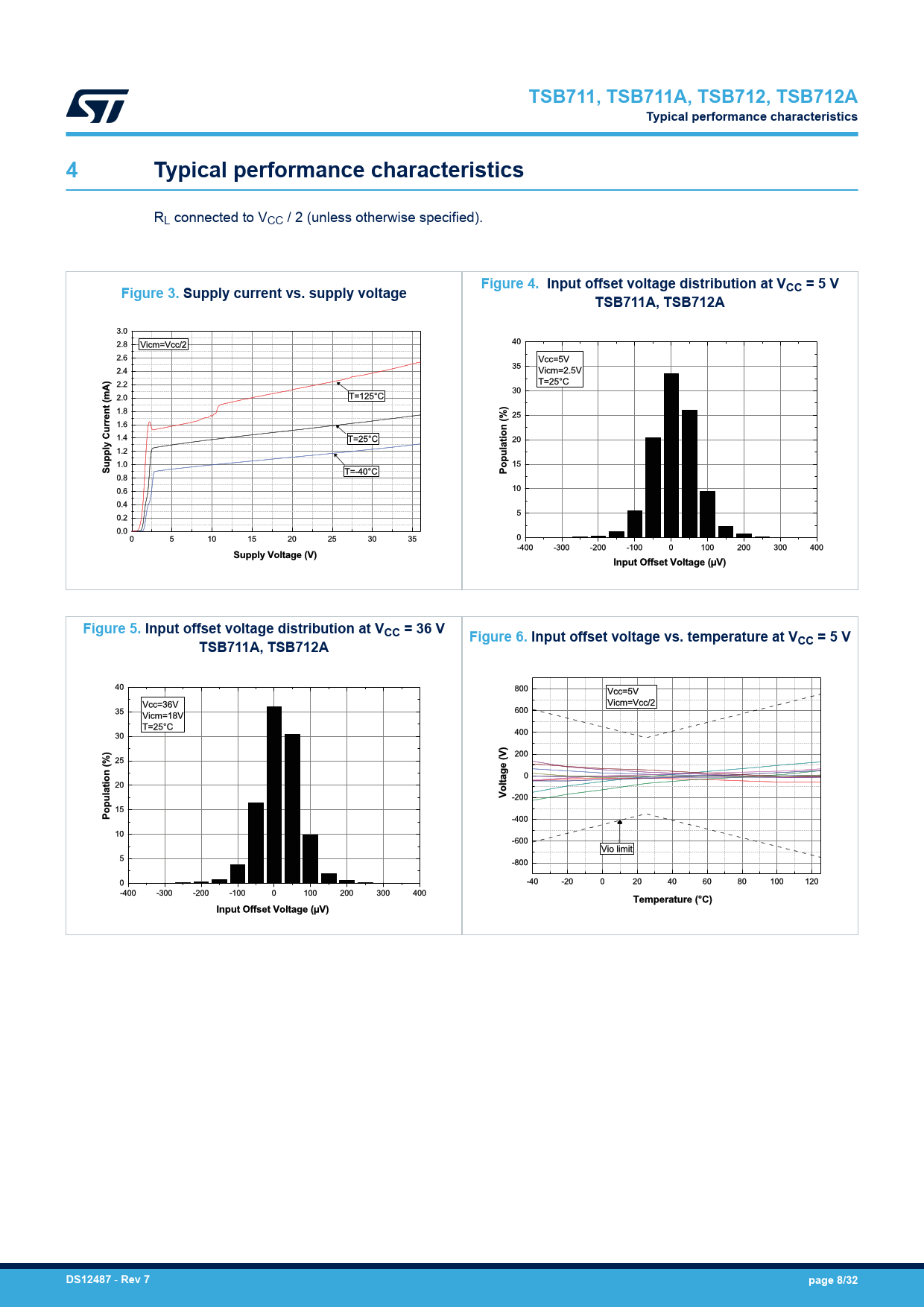

Figure 4. Input offset voltage distribution at V Figure 3. Supply current vs. supply voltage CC = 5 V TSB711A, TSB712A Figure 5. Input offset voltage distribution at VCC = 36 V Figure 6. Input offset voltage vs. temperature at V TSB711A, TSB712A CC = 5 V DS12487
-
Rev 7 page 8/32
