Datasheet ASSR-1410, ASSR-1411, ASSR-1420 (Broadcom) - 5
| Manufacturer | Broadcom |
| Description | General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω) |
| Pages / Page | 16 / 5 — ASSR-1410, ASSR-1411, and ASSR-1420. ASSR-1411 6-Pin DIP Package. LEAD … |
| File Format / Size | PDF / 821 Kb |
| Document Language | English |
ASSR-1410, ASSR-1411, and ASSR-1420. ASSR-1411 6-Pin DIP Package. LEAD FREE
Model Line for this Datasheet
Text Version of Document
ASSR-1410, ASSR-1411, and ASSR-1420
Data Sheet General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω)

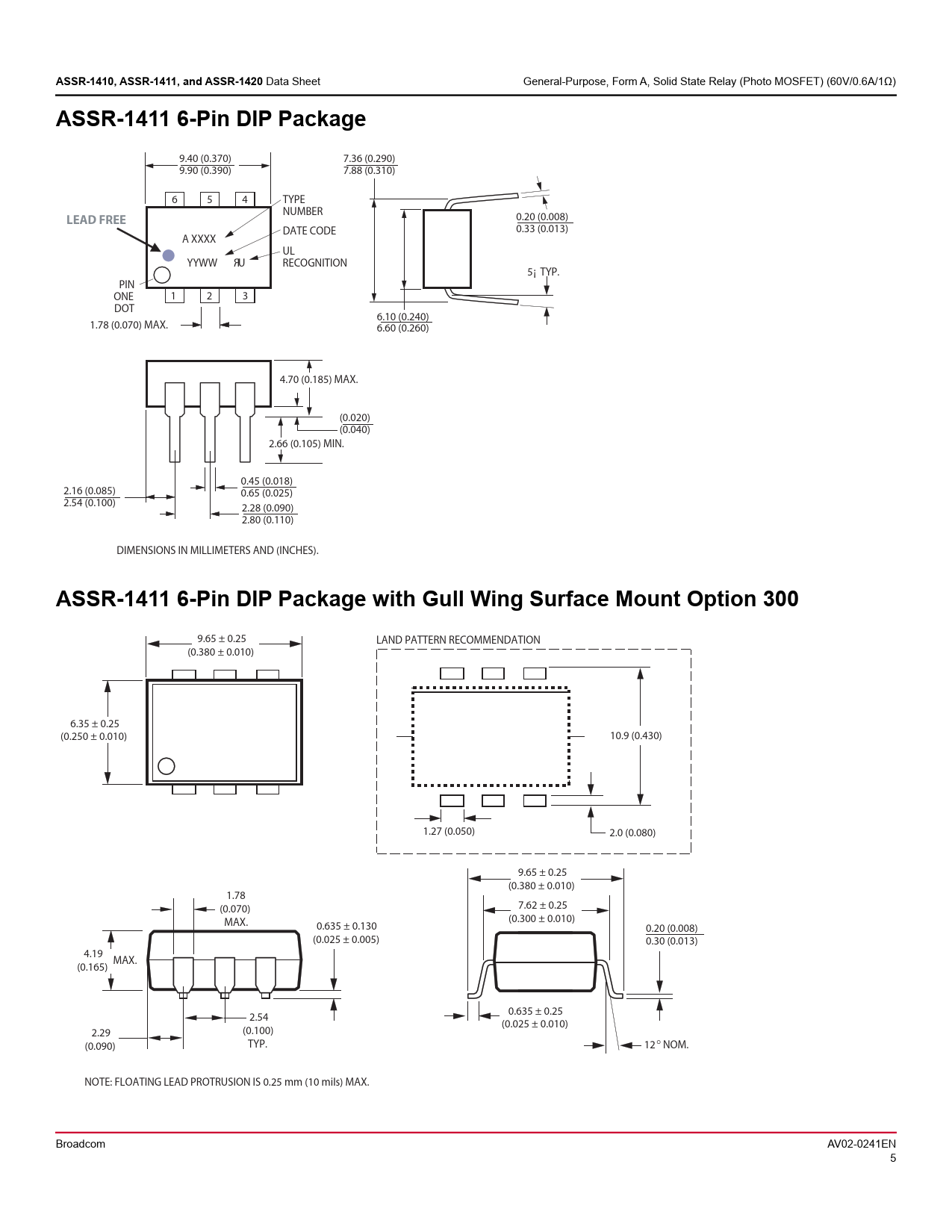

ASSR-1411 6-Pin DIP Package
