High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown. ABSOLUTE MAXIMUM RATINGS
Model Line for this Datasheet
Text Version of Document

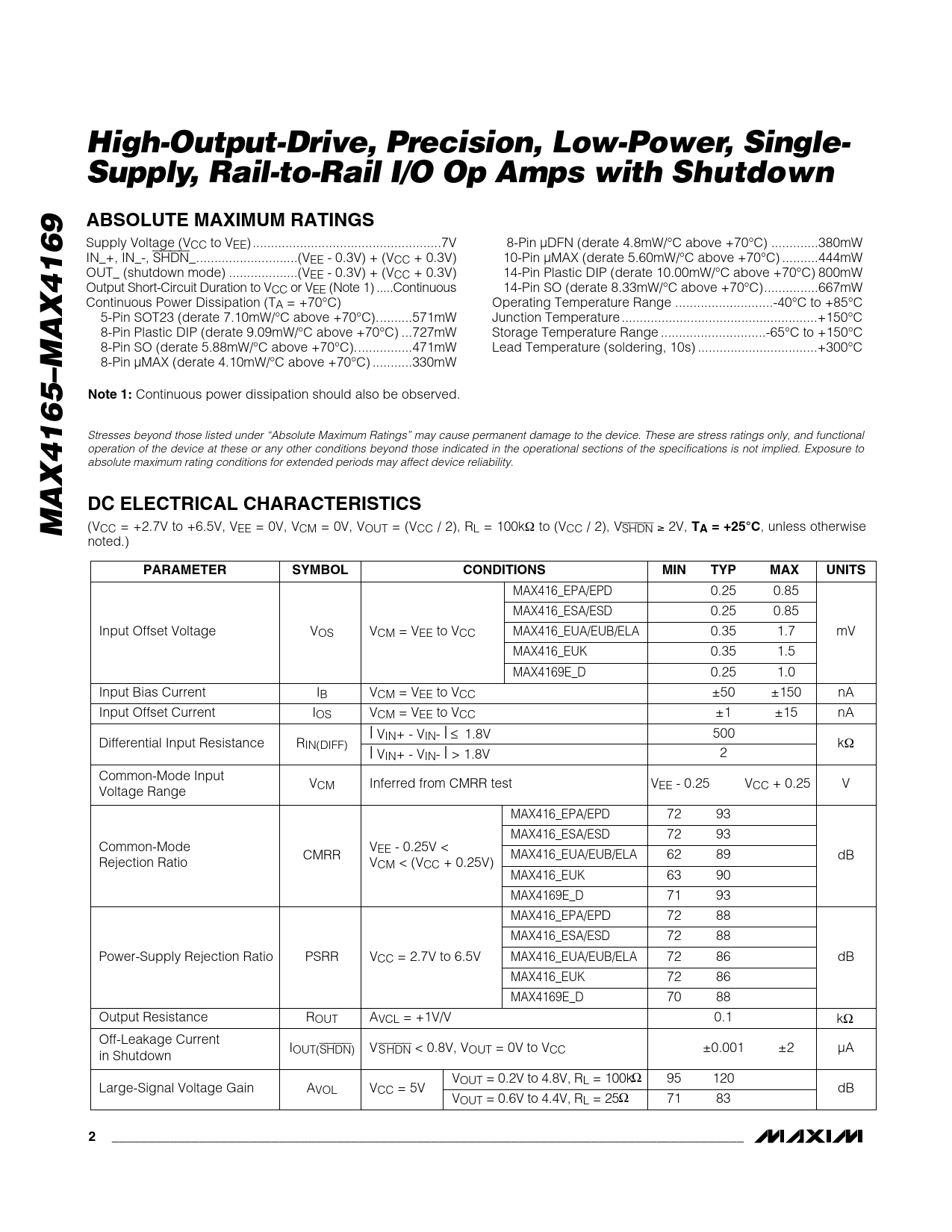

High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown ABSOLUTE MAXIMUM RATINGS
Supply Voltage (VCC to VEE) ..7V 8-Pin µDFN (derate 4.8mW/°C above +70°C) ...380mW IN_+, IN_-, SHDN_..(VEE - 0.3V) + (VCC + 0.3V) 10-Pin µMAX (derate 5.60mW/°C above +70°C) ..444mW OUT_ (shutdown mode) ...(VEE - 0.3V) + (VCC + 0.3V) 14-Pin Plastic DIP (derate 10.00mW/°C above +70°C) 800mW Output Short-Circuit Duration to VCC or VEE (Note 1) ...Continuous 14-Pin SO (derate 8.33mW/°C above +70°C)...667mW Continuous Power Dissipation (TA = +70°C) Operating Temperature Range ...-40°C to +85°C 5-Pin SOT23 (derate 7.10mW/°C above +70°C)..571mW Junction Temperature ..+150°C 8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ...727mW Storage Temperature Range ...-65°C to +150°C 8-Pin SO (derate 5.88mW/°C above +70°C)..471mW Lead Temperature (soldering, 10s) ...+300°C 8-Pin µMAX (derate 4.10mW/°C above +70°C) ...330mW
Note 1:
Continuous power dissipation should also be observed. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS MAX4165–MAX4169
(VCC = +2.7V to +6.5V, VEE = 0V, VCM = 0V, VOUT = (VCC / 2), RL = 100kΩ to (VCC / 2), VSHDN ≥ 2V,
TA = +25°C
, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX416_EPA/EPD 0.25 0.85 MAX416_ESA/ESD 0.25 0.85 Input Offset Voltage VOS VCM = VEE to VCC MAX416_EUA/EUB/ELA 0.35 1.7 mV MAX416_EUK 0.35 1.5 MAX4169E_D 0.25 1.0 Input Bias Current IB VCM = VEE to VCC ±50 ±150 nA Input Offset Current IOS VCM = VEE to VCC ±1 ±15 nA | V ≤ 500 Differential Input Resistance R IN+ - VIN- | 1.8V IN(DIFF) kΩ | VIN+ - VIN- | > 1.8V 2 Common-Mode Input V Voltage Range CM Inferred from CMRR test VEE - 0.25 VCC + 0.25 V MAX416_EPA/EPD 72 93 MAX416_ESA/ESD 72 93 Common-Mode V CMRR EE - 0.25V < MAX416_EUA/EUB/ELA 62 89 dB Rejection Ratio VCM < (VCC + 0.25V) MAX416_EUK 63 90 MAX4169E_D 71 93 MAX416_EPA/EPD 72 88 MAX416_ESA/ESD 72 88 Power-Supply Rejection Ratio PSRR VCC = 2.7V to 6.5V MAX416_EUA/EUB/ELA 72 86 dB MAX416_EUK 72 86 MAX4169E_D 70 88 Output Resistance ROUT AVCL = +1V/V 0.1 kΩ Off-Leakage Current I in Shutdown OUT(SHDN) VSHDN < 0.8V, VOUT = 0V to VCC ±0.001 ±2 μA VOUT = 0.2V to 4.8V, RL = 100kΩ 95 120 Large-Signal Voltage Gain AVOL VCC = 5V dB VOUT = 0.6V to 4.4V, RL = 25Ω 71 83
