Datasheet KMA210 (NXP) - 2
| Manufacturer | NXP |
| Description | Programmable Angle Sensor |
| Pages / Page | 37 / 2 — NXP Semiconductors. KMA210. Programmable angle sensor. 2. Pinning. … |
| File Format / Size | PDF / 586 Kb |
| Document Language | English |

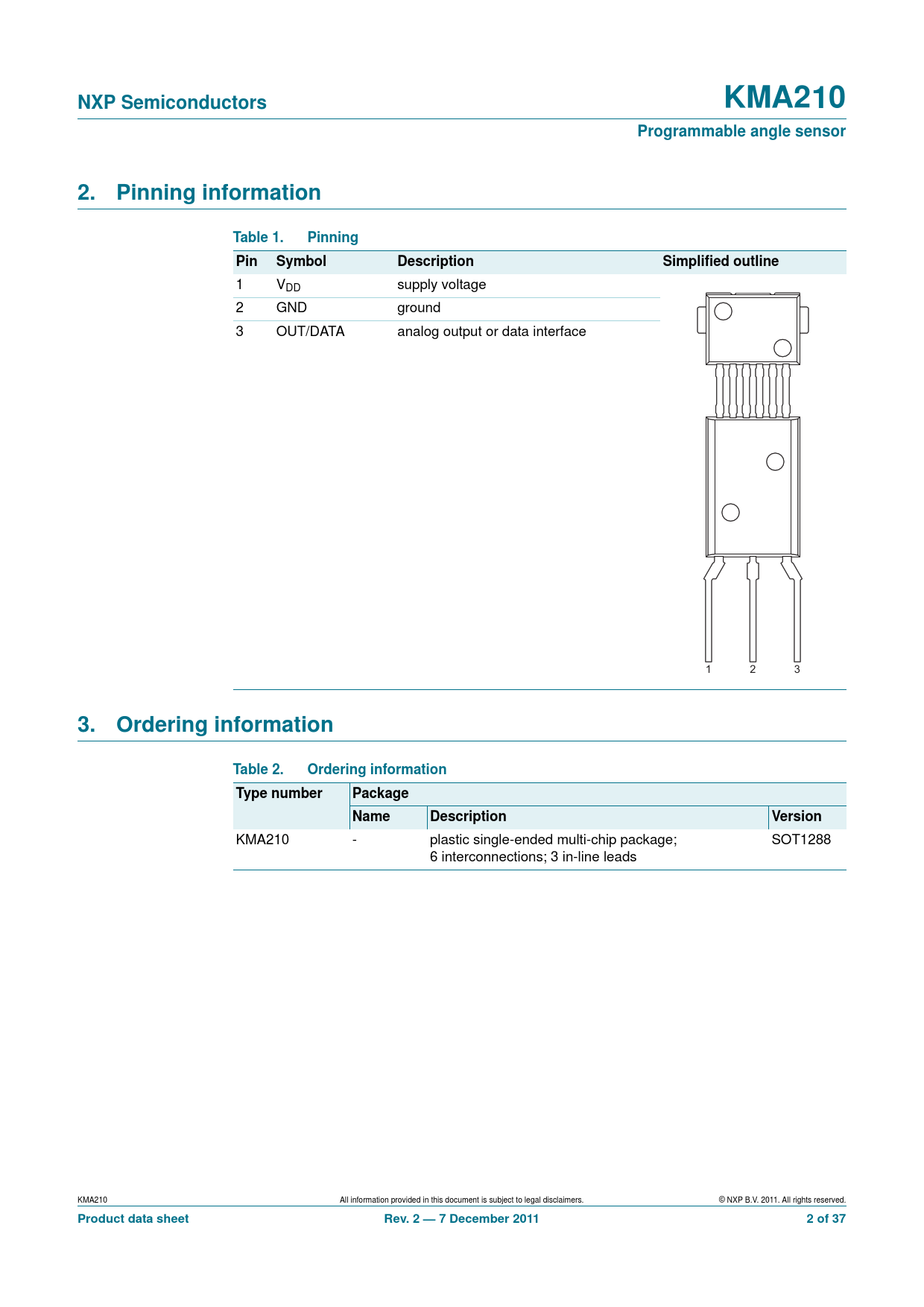

NXP Semiconductors. KMA210. Programmable angle sensor. 2. Pinning. information. Table 1. Pinning. Pin. Symbol. Description
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors KMA210 Programmable angle sensor 2. Pinning information Table 1. Pinning Pin Symbol Description Simplified outline
1 VDD supply voltage 2 GND ground 3 OUT/DATA analog output or data interface 1 2 3
3. Ordering information Table 2. Ordering information Type number Package Name Description Version
KMA210 - plastic single-ended multi-chip package; SOT1288 6 interconnections; 3 in-line leads KMA210 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 2 — 7 December 2011 2 of 37
