Precision, Micropower, Low-Dropout, SC70. Series Voltage Reference. MAX6034. Typical Operating Characteristics (continued)
Model Line for this Datasheet
Text Version of Document

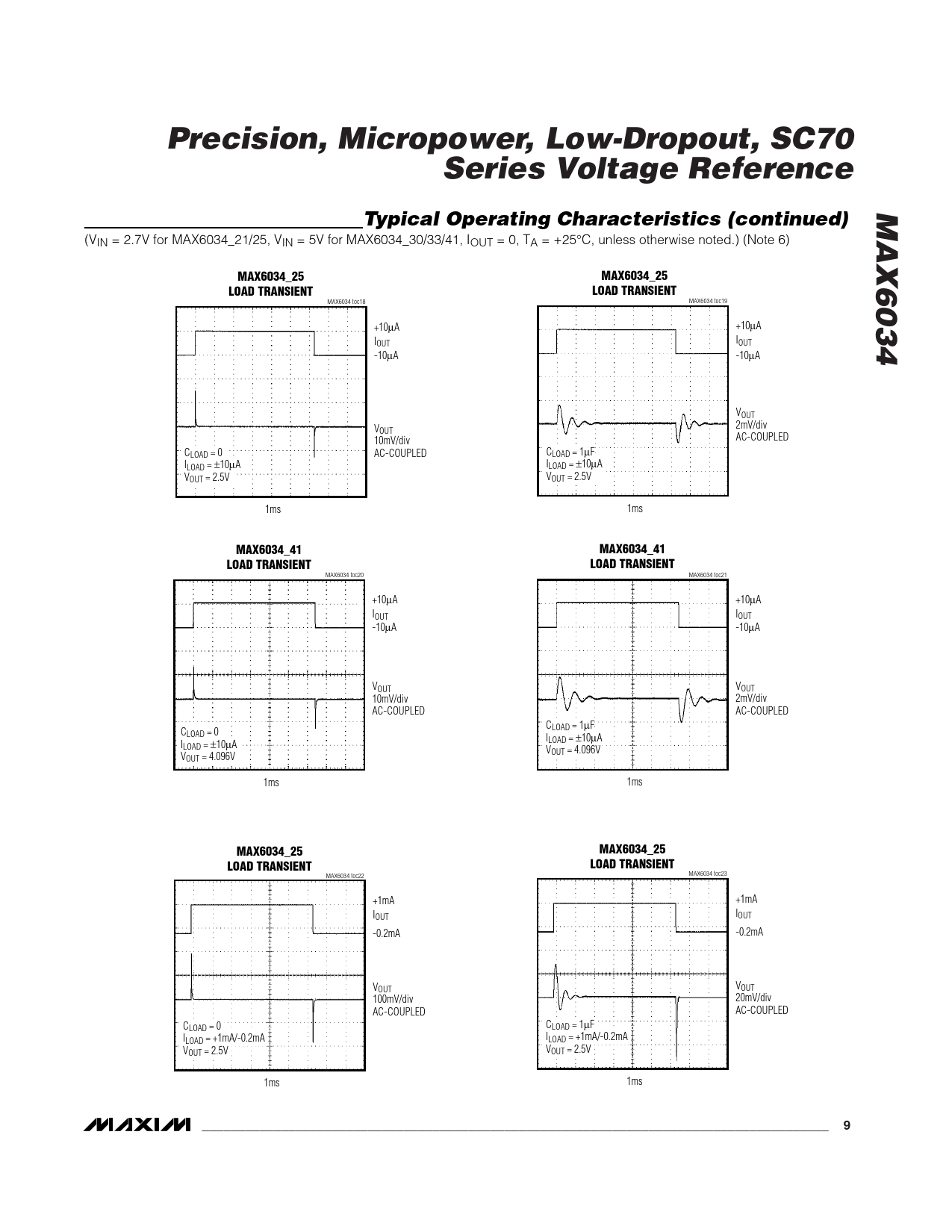

Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference MAX6034 Typical Operating Characteristics (continued)
(VIN = 2.7V for MAX6034_21/25, VIN = 5V for MAX6034_30/33/41, IOUT = 0, TA = +25°C, unless otherwise noted.) (Note 6)
MAX6034_25 MAX6034_25 LOAD TRANSIENT LOAD TRANSIENT
MAX6034 toc18 MAX6034 toc19 +10µA +10µA IOUT IOUT -10µA -10µA VOUT V 2mV/div OUT 10mV/div AC-COUPLED CLOAD = 0 AC-COUPLED CLOAD = 1µF ILOAD = ±10µA ILOAD = ±10µA VOUT = 2.5V VOUT = 2.5V 1ms 1ms
MAX6034_41 MAX6034_41 LOAD TRANSIENT LOAD TRANSIENT
MAX6034 toc20 MAX6034 toc21 +10µA +10µA I I OUT OUT -10µA -10µA V V OUT OUT 10mV/div 2mV/div AC-COUPLED AC-COUPLED CLOAD = 1µF CLOAD = 0 ILOAD = ±10µA ILOAD = ±10µA VOUT = 4.096V VOUT = 4.096V 1ms 1ms
MAX6034_25 MAX6034_25 LOAD TRANSIENT LOAD TRANSIENT
MAX6034 toc23 MAX6034 toc22 +1mA +1mA I I OUT OUT -0.2mA -0.2mA V V OUT OUT 100mV/div 20mV/div AC-COUPLED AC-COUPLED C C LOAD = 0 LOAD = 1µF I I LOAD = +1mA/-0.2mA LOAD = +1mA/-0.2mA V V OUT = 2.5V OUT = 2.5V 1ms 1ms
_______________________________________________________________________________________ 9
