Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference. Typical Operating Characteristics (continued)
Model Line for this Datasheet
Text Version of Document

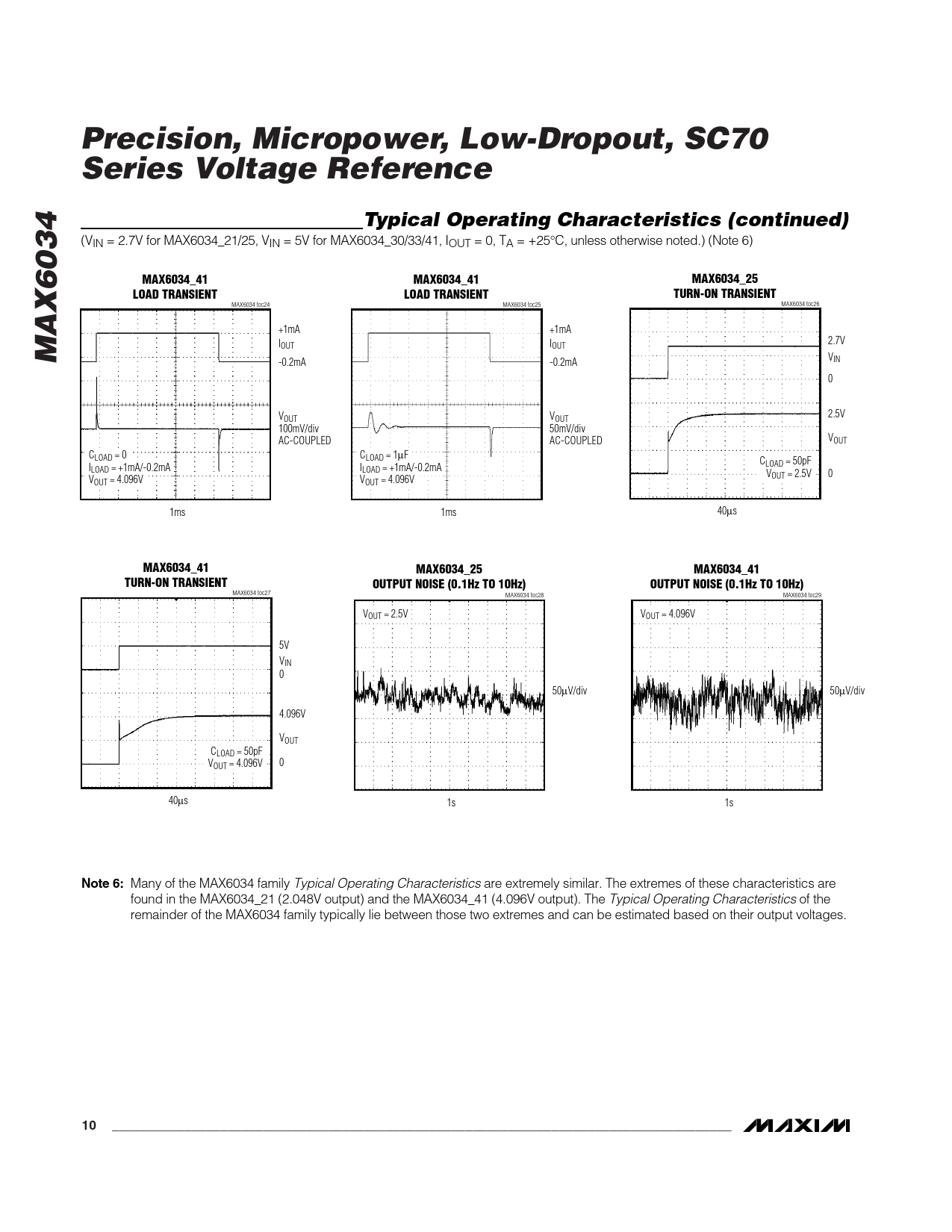

Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference Typical Operating Characteristics (continued)
(VIN = 2.7V for MAX6034_21/25, VIN = 5V for MAX6034_30/33/41, IOUT = 0, TA = +25°C, unless otherwise noted.) (Note 6)
MAX6034_41 MAX6034_41 MAX6034_25 LOAD TRANSIENT LOAD TRANSIENT TURN-ON TRANSIENT
MAX6034 toc24 MAX6034 toc25 MAX6034 toc26 +1mA +1mA 2.7V
MAX6034
IOUT IOUT VIN -0.2mA -0.2mA 0 2.5V VOUT VOUT 100mV/div 50mV/div V AC-COUPLED AC-COUPLED OUT CLOAD = 0 CLOAD = 1µF CLOAD = 50pF ILOAD = +1mA/-0.2mA ILOAD = +1mA/-0.2mA VOUT = 2.5V 0 VOUT = 4.096V VOUT = 4.096V 1ms 1ms 40µs
MAX6034_41 MAX6034_25 MAX6034_41 TURN-ON TRANSIENT OUTPUT NOISE (0.1Hz TO 10Hz) OUTPUT NOISE (0.1Hz TO 10Hz)
MAX6034 toc27 MAX6034 toc28 MAX6034 toc29 VOUT = 2.5V VOUT = 4.096V 5V VIN 0 50µV/div 50µV/div 4.096V VOUT CLOAD = 50pF VOUT = 4.096V 0 40µs 1s 1s
Note 6:
Many of the MAX6034 family Typical Operating Characteristics are extremely similar. The extremes of these characteristics are found in the MAX6034_21 (2.048V output) and the MAX6034_41 (4.096V output). The Typical Operating Characteristics of the remainder of the MAX6034 family typically lie between those two extremes and can be estimated based on their output voltages.
