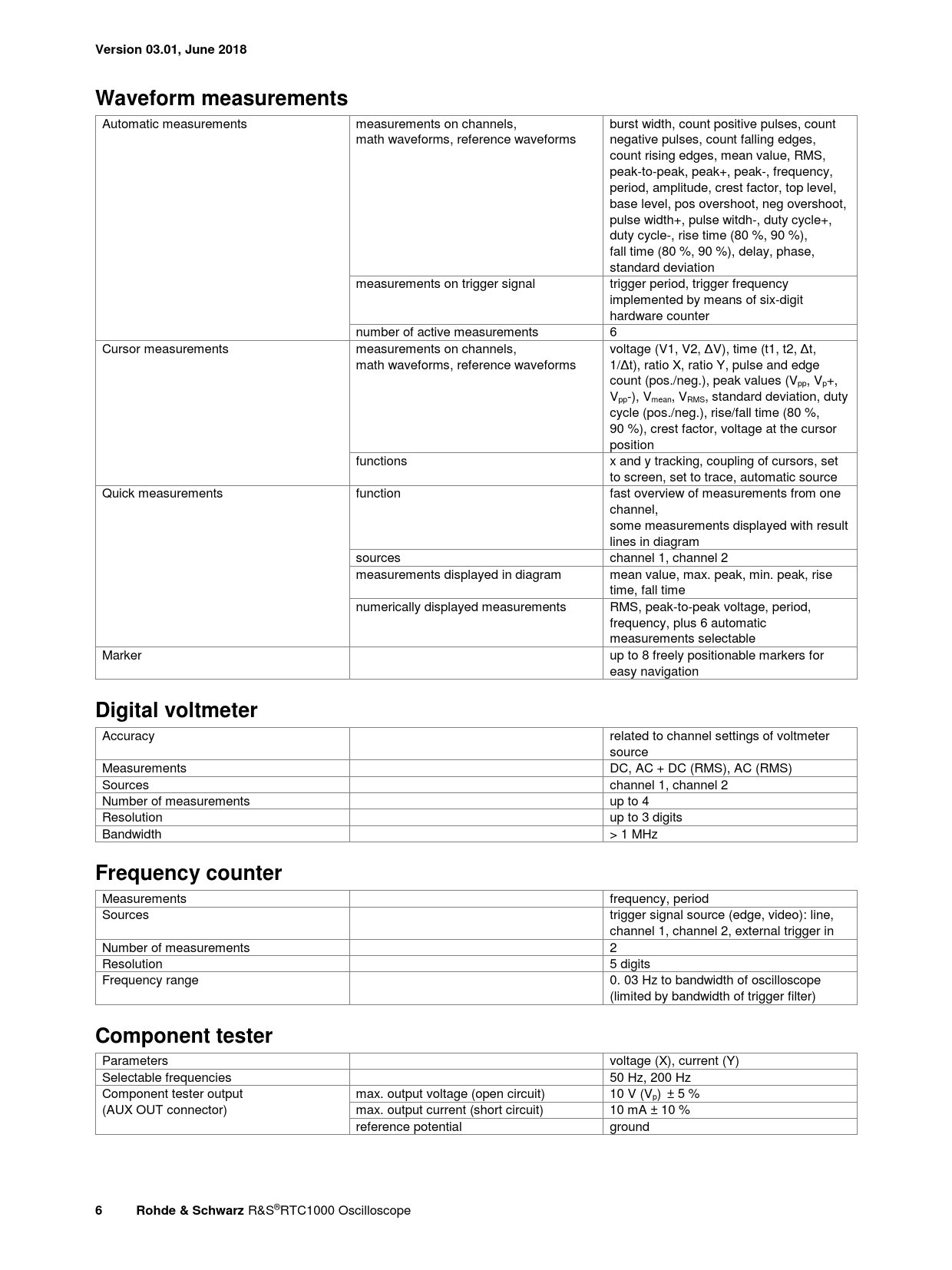

Version 03.01, June 2018 Waveform measurements
Automatic measurements measurements on channels, burst width, count positive pulses, count math waveforms, reference waveforms negative pulses, count falling edges, count rising edges, mean value, RMS, peak-to-peak, peak+, peak-, frequency, period, amplitude, crest factor, top level, base level, pos overshoot, neg overshoot, pulse width+, pulse witdh-, duty cycle+, duty cycle-, rise time (80 %, 90 %), fall time (80 %, 90 %), delay, phase, standard deviation measurements on trigger signal trigger period, trigger frequency implemented by means of six-digit hardware counter number of active measurements 6 Cursor measurements measurements on channels, voltage (V1, V2, ΔV), time (t1, t2, Δt, math waveforms, reference waveforms 1/Δt), ratio X, ratio Y, pulse and edge count (pos./neg.), peak values (Vpp, Vp+, Vpp-), Vmean, VRMS, standard deviation, duty cycle (pos./neg.), rise/fall time (80 %, 90 %), crest factor, voltage at the cursor position functions x and y tracking, coupling of cursors, set to screen, set to trace, automatic source Quick measurements function fast overview of measurements from one channel, some measurements displayed with result lines in diagram sources channel 1, channel 2 measurements displayed in diagram mean value, max. peak, min. peak, rise time, fall time numerically displayed measurements RMS, peak-to-peak voltage, period, frequency, plus 6 automatic measurements selectable Marker up to 8 freely positionable markers for easy navigation
Digital voltmeter
Accuracy related to channel settings of voltmeter source Measurements DC, AC + DC (RMS), AC (RMS) Sources channel 1, channel 2 Number of measurements up to 4 Resolution up to 3 digits Bandwidth > 1 MHz
Frequency counter
Measurements frequency, period Sources trigger signal source (edge, video): line, channel 1, channel 2, external trigger in Number of measurements 2 Resolution 5 digits Frequency range 0. 03 Hz to bandwidth of oscilloscope (limited by bandwidth of trigger filter)
Component tester
Parameters voltage (X), current (Y) Selectable frequencies 50 Hz, 200 Hz Component tester output max. output voltage (open circuit) 10 V (Vp) ± 5 % (AUX OUT connector) max. output current (short circuit) 10 mA ± 10 % reference potential ground
6 Rohde & Schwarz
