Version 03.01, June 2018. Mask testing. Waveform maths. Frequency analysis (FFT). Reference signals. Display characteristics
Text Version of Document

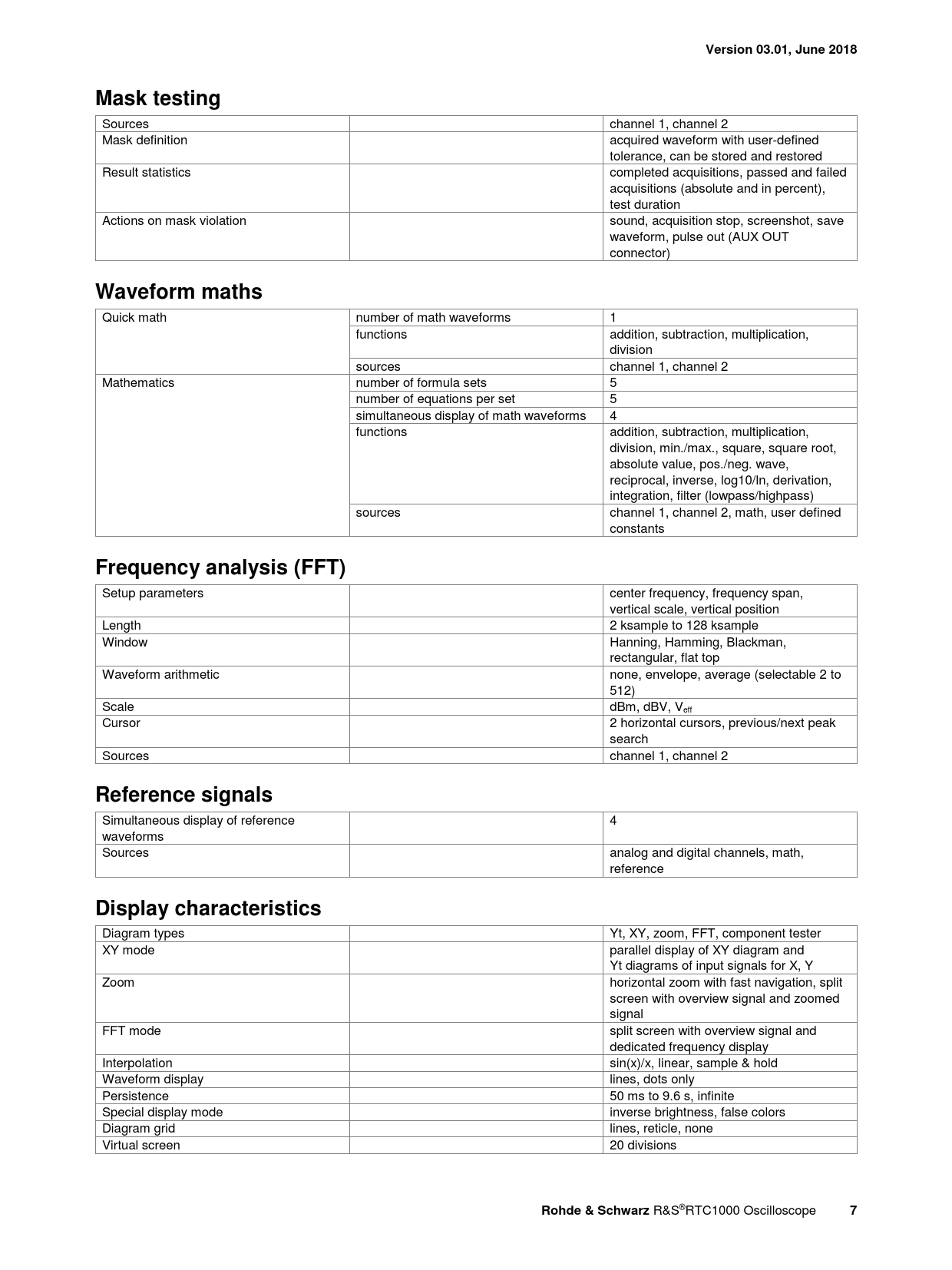

Version 03.01, June 2018 Mask testing
Sources channel 1, channel 2 Mask definition acquired waveform with user-defined tolerance, can be stored and restored Result statistics completed acquisitions, passed and failed acquisitions (absolute and in percent), test duration Actions on mask violation sound, acquisition stop, screenshot, save waveform, pulse out (AUX OUT connector)
Waveform maths
Quick math number of math waveforms 1 functions addition, subtraction, multiplication, division sources channel 1, channel 2 Mathematics number of formula sets 5 number of equations per set 5 simultaneous display of math waveforms 4 functions addition, subtraction, multiplication, division, min./max., square, square root, absolute value, pos./neg. wave, reciprocal, inverse, log10/ln, derivation, integration, filter (lowpass/highpass) sources channel 1, channel 2, math, user defined constants
Frequency analysis (FFT)
Setup parameters center frequency, frequency span, vertical scale, vertical position Length 2 ksample to 128 ksample Window Hanning, Hamming, Blackman, rectangular, flat top Waveform arithmetic none, envelope, average (selectable 2 to 512) Scale dBm, dBV, Veff Cursor 2 horizontal cursors, previous/next peak search Sources channel 1, channel 2
Reference signals
Simultaneous display of reference 4 waveforms Sources analog and digital channels, math, reference
Display characteristics
Diagram types Yt, XY, zoom, FFT, component tester XY mode parallel display of XY diagram and Yt diagrams of input signals for X, Y Zoom horizontal zoom with fast navigation, split screen with overview signal and zoomed signal FFT mode split screen with overview signal and dedicated frequency display Interpolation sin(x)/x, linear, sample & hold Waveform display lines, dots only Persistence 50 ms to 9.6 s, infinite Special display mode inverse brightness, false colors Diagram grid lines, reticle, none Virtual screen 20 divisions
Rohde & Schwarz
R&S®RTC1000 Oscilloscope
7
