Datasheet RH6200M (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Low Noise, High Speed Rail-to-Rail Op Amp |
| Pages / Page | 10 / 2 — TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation). TA = 25°C. SUB-. … |
| File Format / Size | PDF / 158 Kb |
| Document Language | English |

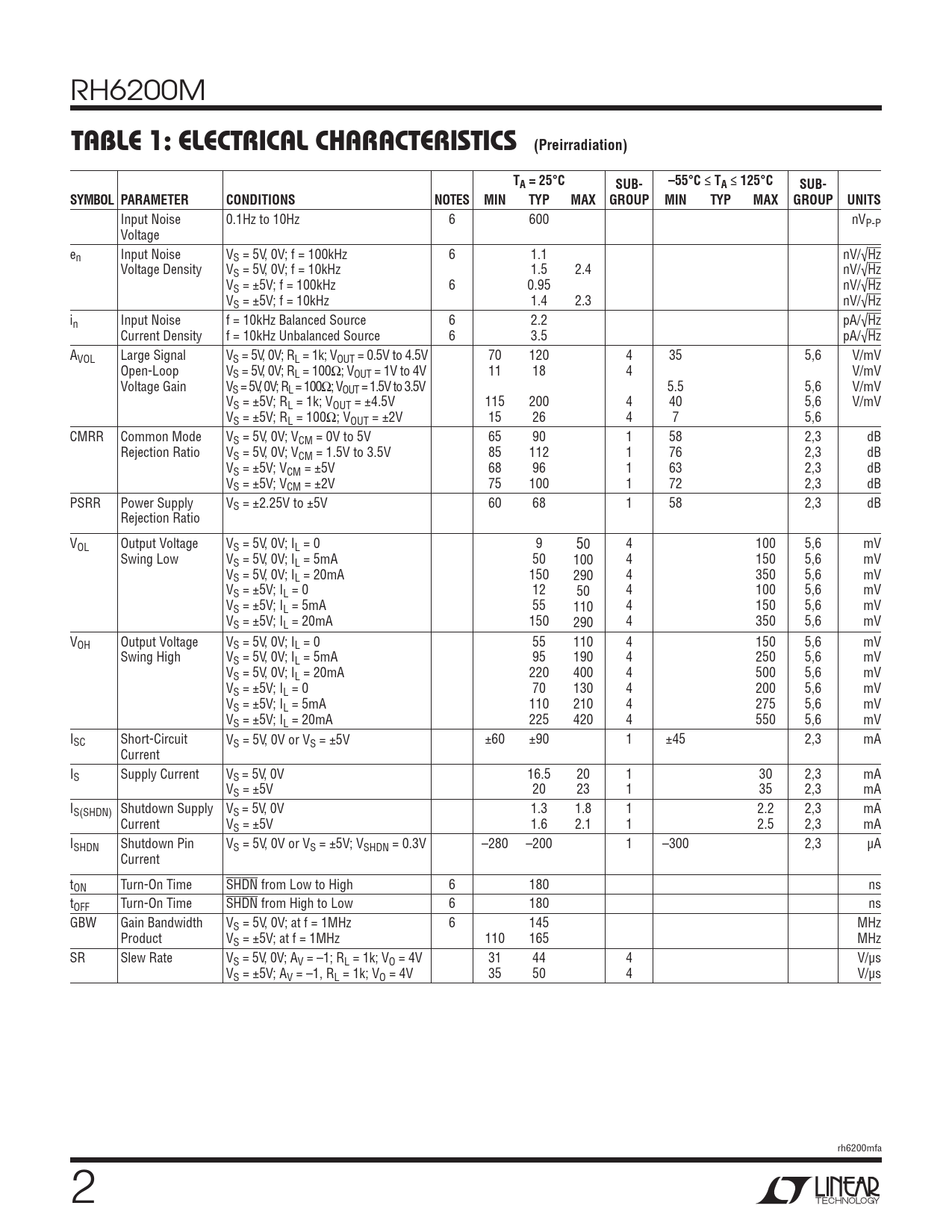

TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation). TA = 25°C. SUB-. –55°C ≤ TA ≤ 125°C. SYMBOL PARAMETER. CONDITIONS. NOTES. MIN
Model Line for this Datasheet
Text Version of Document
RH6200M
TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
Input Noise 0.1Hz to 10Hz 6 600 nVP-P Voltage en Input Noise VS = 5V, 0V; f = 100kHz 6 1.1 nV/√Hz Voltage Density VS = 5V, 0V; f = 10kHz 1.5 2.4 nV/√Hz VS = ±5V; f = 100kHz 6 0.95 nV/√Hz VS = ±5V; f = 10kHz 1.4 2.3 nV/√Hz in Input Noise f = 10kHz Balanced Source 6 2.2 pA/√Hz Current Density f = 10kHz Unbalanced Source 6 3.5 pA/√Hz AVOL Large Signal VS = 5V, 0V; RL = 1k; VOUT = 0.5V to 4.5V 70 120 4 35 5,6 V/mV Open-Loop VS = 5V, 0V; RL = 100Ω; VOUT = 1V to 4V 11 18 4 V/mV Voltage Gain VS = 5V, 0V; RL = 100Ω; VOUT = 1.5V to 3.5V 5.5 5,6 V/mV VS = ±5V; RL = 1k; VOUT = ±4.5V 115 200 4 40 5,6 V/mV VS = ±5V; RL = 100Ω; VOUT = ±2V 15 26 4 7 5,6 CMRR Common Mode VS = 5V, 0V; VCM = 0V to 5V 65 90 1 58 2,3 dB Rejection Ratio VS = 5V, 0V; VCM = 1.5V to 3.5V 85 112 1 76 2,3 dB VS = ±5V; VCM = ±5V 68 96 1 63 2,3 dB VS = ±5V; VCM = ±2V 75 100 1 72 2,3 dB PSRR Power Supply VS = ±2.25V to ±5V 60 68 1 58 2,3 dB Rejection Ratio VOL Output Voltage VS = 5V, 0V; IL = 0 9 50 4 100 5,6 mV Swing Low VS = 5V, 0V; IL = 5mA 50 100 4 150 5,6 mV VS = 5V, 0V; IL = 20mA 150 290 4 350 5,6 mV VS = ±5V; IL = 0 12 50 4 100 5,6 mV VS = ±5V; IL = 5mA 55 110 4 150 5,6 mV VS = ±5V; IL = 20mA 150 290 4 350 5,6 mV VOH Output Voltage VS = 5V, 0V; IL = 0 55 110 4 150 5,6 mV Swing High VS = 5V, 0V; IL = 5mA 95 190 4 250 5,6 mV VS = 5V, 0V; IL = 20mA 220 400 4 500 5,6 mV VS = ±5V; IL = 0 70 130 4 200 5,6 mV VS = ±5V; IL = 5mA 110 210 4 275 5,6 mV VS = ±5V; IL = 20mA 225 420 4 550 5,6 mV ISC Short-Circuit VS = 5V, 0V or VS = ±5V ±60 ±90 1 ±45 2,3 mA Current IS Supply Current VS = 5V, 0V 16.5 20 1 30 2,3 mA VS = ±5V 20 23 1 35 2,3 mA IS(SHDN) Shutdown Supply VS = 5V, 0V 1.3 1.8 1 2.2 2,3 mA Current VS = ±5V 1.6 2.1 1 2.5 2,3 mA ISHDN Shutdown Pin VS = 5V, 0V or VS = ±5V; VSHDN = 0.3V –280 –200 1 –300 2,3 μA Current tON Turn-On Time SHDN from Low to High 6 180 ns tOFF Turn-On Time SHDN from High to Low 6 180 ns GBW Gain Bandwidth VS = 5V, 0V; at f = 1MHz 6 145 MHz Product VS = ±5V; at f = 1MHz 110 165 MHz SR Slew Rate VS = 5V, 0V; AV = –1; RL = 1k; VO = 4V 31 44 4 V/μs VS = ±5V; AV = –1, RL = 1k; VO = 4V 35 50 4 V/μs rh6200mfa 2
TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
Input Noise 0.1Hz to 10Hz 6 600 nVP-P Voltage en Input Noise VS = 5V, 0V; f = 100kHz 6 1.1 nV/√Hz Voltage Density VS = 5V, 0V; f = 10kHz 1.5 2.4 nV/√Hz VS = ±5V; f = 100kHz 6 0.95 nV/√Hz VS = ±5V; f = 10kHz 1.4 2.3 nV/√Hz in Input Noise f = 10kHz Balanced Source 6 2.2 pA/√Hz Current Density f = 10kHz Unbalanced Source 6 3.5 pA/√Hz AVOL Large Signal VS = 5V, 0V; RL = 1k; VOUT = 0.5V to 4.5V 70 120 4 35 5,6 V/mV Open-Loop VS = 5V, 0V; RL = 100Ω; VOUT = 1V to 4V 11 18 4 V/mV Voltage Gain VS = 5V, 0V; RL = 100Ω; VOUT = 1.5V to 3.5V 5.5 5,6 V/mV VS = ±5V; RL = 1k; VOUT = ±4.5V 115 200 4 40 5,6 V/mV VS = ±5V; RL = 100Ω; VOUT = ±2V 15 26 4 7 5,6 CMRR Common Mode VS = 5V, 0V; VCM = 0V to 5V 65 90 1 58 2,3 dB Rejection Ratio VS = 5V, 0V; VCM = 1.5V to 3.5V 85 112 1 76 2,3 dB VS = ±5V; VCM = ±5V 68 96 1 63 2,3 dB VS = ±5V; VCM = ±2V 75 100 1 72 2,3 dB PSRR Power Supply VS = ±2.25V to ±5V 60 68 1 58 2,3 dB Rejection Ratio VOL Output Voltage VS = 5V, 0V; IL = 0 9 50 4 100 5,6 mV Swing Low VS = 5V, 0V; IL = 5mA 50 100 4 150 5,6 mV VS = 5V, 0V; IL = 20mA 150 290 4 350 5,6 mV VS = ±5V; IL = 0 12 50 4 100 5,6 mV VS = ±5V; IL = 5mA 55 110 4 150 5,6 mV VS = ±5V; IL = 20mA 150 290 4 350 5,6 mV VOH Output Voltage VS = 5V, 0V; IL = 0 55 110 4 150 5,6 mV Swing High VS = 5V, 0V; IL = 5mA 95 190 4 250 5,6 mV VS = 5V, 0V; IL = 20mA 220 400 4 500 5,6 mV VS = ±5V; IL = 0 70 130 4 200 5,6 mV VS = ±5V; IL = 5mA 110 210 4 275 5,6 mV VS = ±5V; IL = 20mA 225 420 4 550 5,6 mV ISC Short-Circuit VS = 5V, 0V or VS = ±5V ±60 ±90 1 ±45 2,3 mA Current IS Supply Current VS = 5V, 0V 16.5 20 1 30 2,3 mA VS = ±5V 20 23 1 35 2,3 mA IS(SHDN) Shutdown Supply VS = 5V, 0V 1.3 1.8 1 2.2 2,3 mA Current VS = ±5V 1.6 2.1 1 2.5 2,3 mA ISHDN Shutdown Pin VS = 5V, 0V or VS = ±5V; VSHDN = 0.3V –280 –200 1 –300 2,3 μA Current tON Turn-On Time SHDN from Low to High 6 180 ns tOFF Turn-On Time SHDN from High to Low 6 180 ns GBW Gain Bandwidth VS = 5V, 0V; at f = 1MHz 6 145 MHz Product VS = ±5V; at f = 1MHz 110 165 MHz SR Slew Rate VS = 5V, 0V; AV = –1; RL = 1k; VO = 4V 31 44 4 V/μs VS = ±5V; AV = –1, RL = 1k; VO = 4V 35 50 4 V/μs rh6200mfa 2
