| Description | 400° Analog Phase Shifter Chip, 5 - 18 GHz |
| Pages / Page | 6 / 5 — HMC247. 400° ANALOG PHASE SHIFTER. 5 - 18 GHz. Assembly Diagram. Pad … |
| File Format / Size | PDF / 332 Kb |
| Document Language | English |
HMC247. 400° ANALOG PHASE SHIFTER. 5 - 18 GHz. Assembly Diagram. Pad Descriptions. 3 - 6
Model Line for this Datasheet
Text Version of Document
HMC247
v03.0809

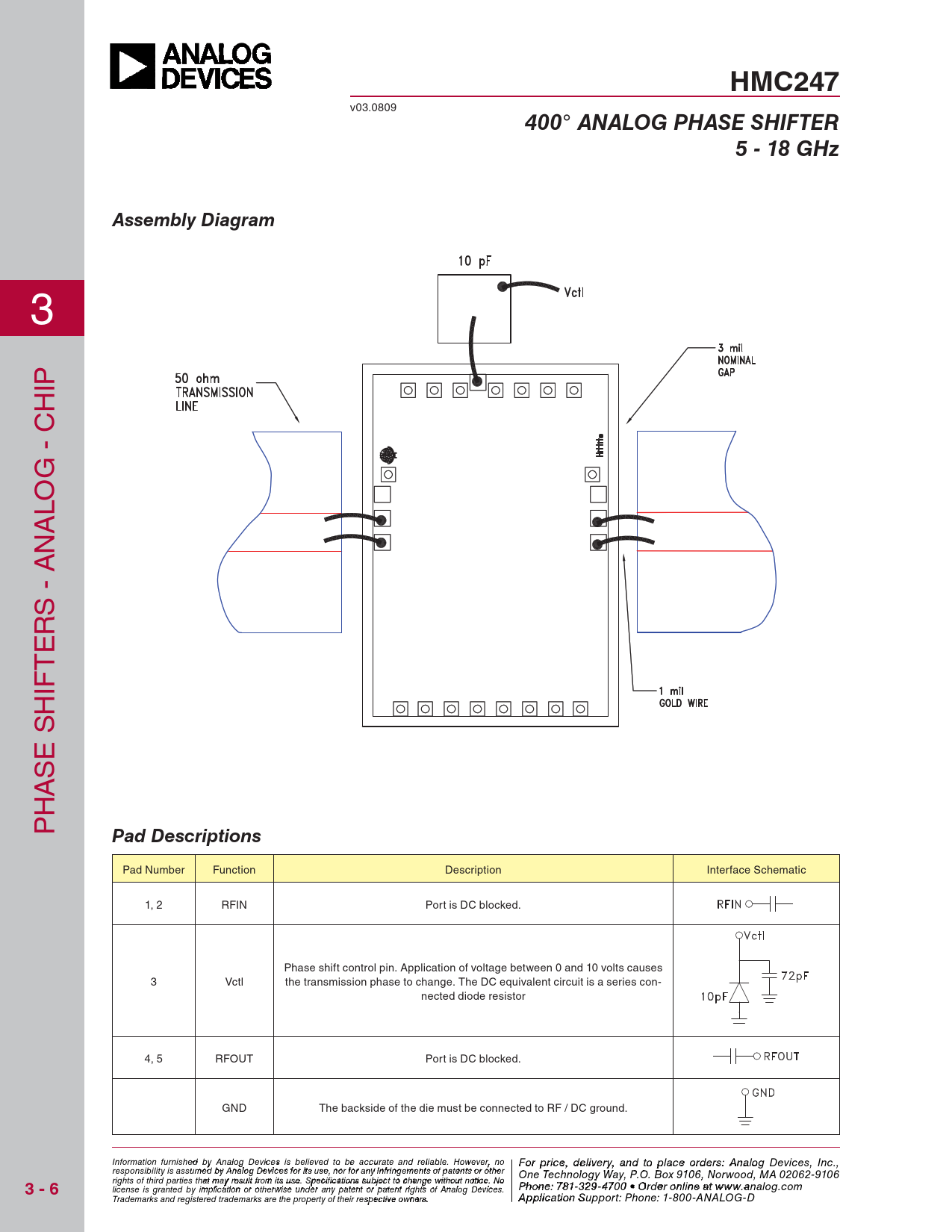

400° ANALOG PHASE SHIFTER 5 - 18 GHz Assembly Diagram
3 IP H OG - C L A N S - A R E T IF H E S S A H P
Pad Descriptions
Pad Number Function Description Interface Schematic 1, 2 RFIN Port is DC blocked. Phase shift control pin. Application of voltage between 0 and 10 volts causes 3 Vctl the transmission phase to change. The DC equivalent circuit is a series con- nected diode resistor 4, 5 RFOUT Port is DC blocked. GND The backside of the die must be connected to RF / DC ground. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rby eli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
3 - 6
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon -e25 : 7 0 81 - - 3 3 3 29 4 - 3 F 470 ax 0 • O : 978 rder o - nl 25 in 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On- Trademarks and registered trademarks are the property of their respective owners. line at www.hi A tptipte.co licatio m n Support: Phone: 1-800-ANALOG-D
