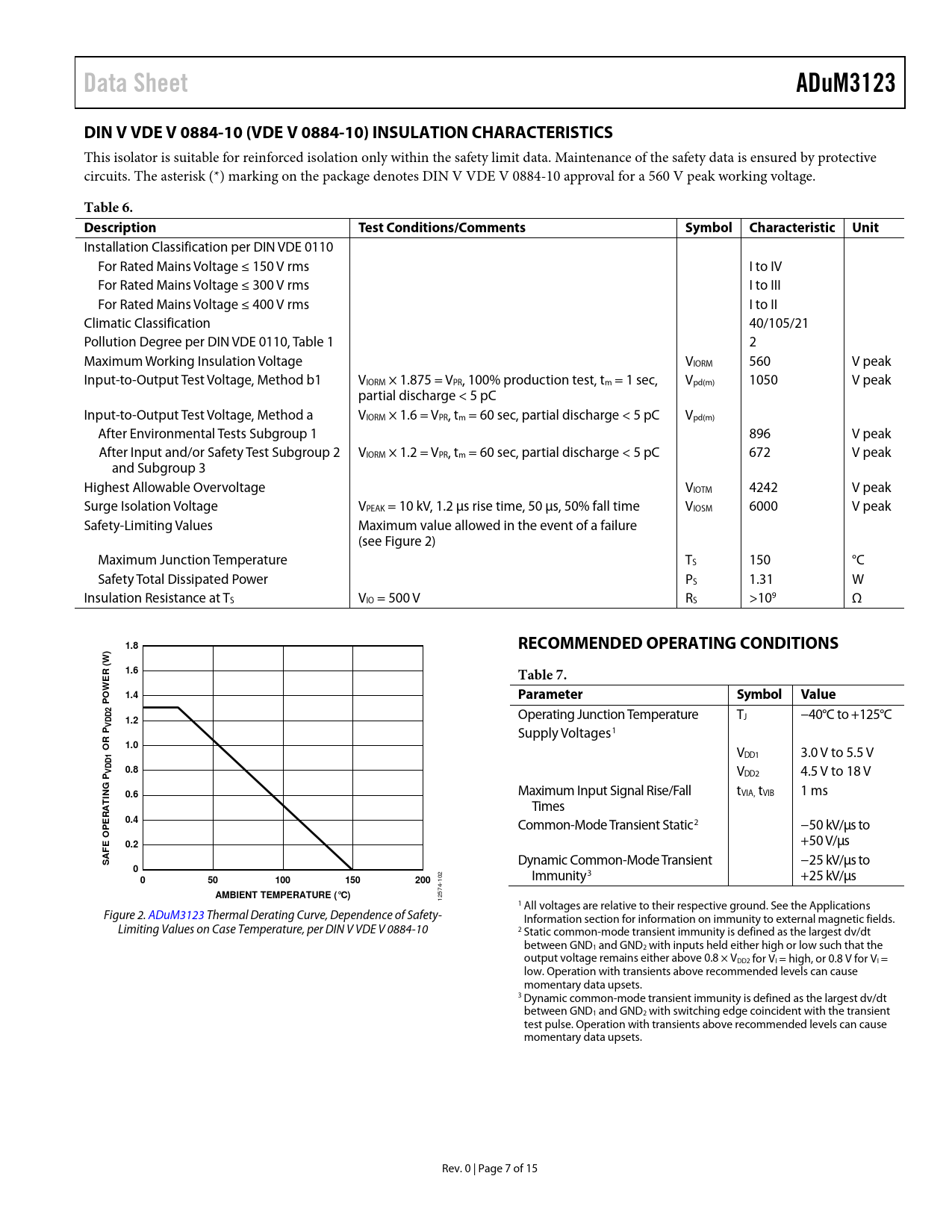

Data Sheet ADuM3123 DIN V VDE V 0884-10 (VDE V 0884-10) INSULATION CHARACTERISTICS
This isolator is suitable for reinforced isolation only within the safety limit data. Maintenance of the safety data is ensured by protective circuits. The asterisk (*) marking on the package denotes DIN V VDE V 0884-10 approval for a 560 V peak working voltage.
Table 6. Description Test Conditions/Comments Symbol Characteristic Unit
Installation Classification per DIN VDE 0110 For Rated Mains Voltage ≤ 150 V rms I to IV For Rated Mains Voltage ≤ 300 V rms I to III For Rated Mains Voltage ≤ 400 V rms I to II Climatic Classification 40/105/21 Pollution Degree per DIN VDE 0110, Table 1 2 Maximum Working Insulation Voltage VIORM 560 V peak Input-to-Output Test Voltage, Method b1 VIORM × 1.875 = VPR, 100% production test, tm = 1 sec, Vpd(m) 1050 V peak partial discharge < 5 pC Input-to-Output Test Voltage, Method a VIORM × 1.6 = VPR, tm = 60 sec, partial discharge < 5 pC Vpd(m) After Environmental Tests Subgroup 1 896 V peak After Input and/or Safety Test Subgroup 2 VIORM × 1.2 = VPR, tm = 60 sec, partial discharge < 5 pC 672 V peak and Subgroup 3 Highest Allowable Overvoltage VIOTM 4242 V peak Surge Isolation Voltage VPEAK = 10 kV, 1.2 µs rise time, 50 µs, 50% fall time VIOSM 6000 V peak Safety-Limiting Values Maximum value allowed in the event of a failure (see Figure 2) Maximum Junction Temperature TS 150 °C Safety Total Dissipated Power PS 1.31 W Insulation Resistance at TS VIO = 500 V RS >109 Ω
1.8 RECOMMENDED OPERATING CONDITIONS ) (W 1.6 ER Table 7. W 1.4 Parameter Symbol Value PO
Operating Junction Temperature T
DD2 1.2
J −40°C to +125°C
V
Supply Voltages1
R P 1.0 O
VDD1 3.0 V to 5.5 V
DD1 V 0.8
VDD2 4.5 V to 18 V
G P
Maximum Input Signal Rise/Fall t
0.6
VIA, tVIB 1 ms
TIN A
Times
R E 0.4
Common-Mode Transient Static2 −50 kV/µs to
OP 0.2
+50 V/µs
FE A S
Dynamic Common-Mode Transient −25 kV/µs to
0
Immunity3 +25 kV/µs
0 50 100 150 200
102
AMBIENT TEMPERATURE (°C)
12574- 1 All voltages are relative to their respective ground. See the Applications Figure 2. ADuM3123 Thermal Derating Curve, Dependence of Safety- Information section for information on immunity to external magnetic fields. Limiting Values on Case Temperature, per DIN V VDE V 0884-10 2 Static common-mode transient immunity is defined as the largest dv/dt between GND 1 and GND2 with inputs held either high or low such that the output voltage remains either above 0.8 × VDD2 for VI = high, or 0.8 V for VI = low. Operation with transients above recommended levels can cause momentary data upsets. 3 Dynamic common-mode transient immunity is defined as the largest dv/dt between GND1 and GND2 with switching edge coincident with the transient test pulse. Operation with transients above recommended levels can cause momentary data upsets. Rev. 0 | Page 7 of 15 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Characteristics—5 V Operation Electrical Characteristics—3.3 V Operation Package Characteristics Insulation and Safety Related Specifications Regulatory Information DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Printed Circuit Board (PCB) Layout Propagation Delay Related Parameters Thermal Limitations and Switch Load Characteristics Output Load Characteristics DC Correctness and Magnetic Field Immunity Power Consumption Insulation Lifetime Outline Dimensions Ordering Guide
