| Manufacturer | Analog Devices |
| Description | Variable Gain Amplifier SMT, 27 - 31.5 GHz |
| Pages / Page | 8 / 5 — HMC6187LP4E. VARIABLE GAIN AMPLIFIER. 27 - 31.5 GHz. Absolute Maximum … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

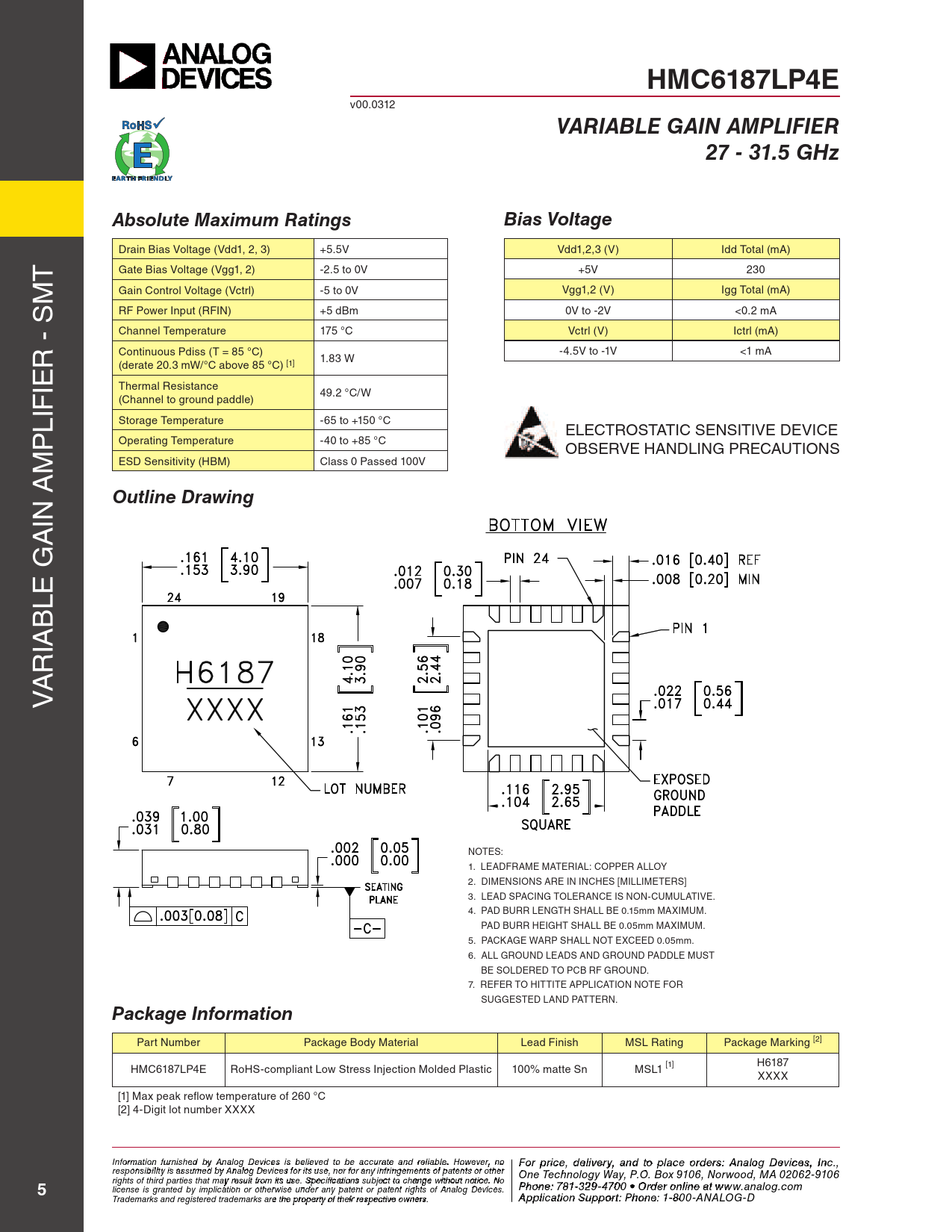

HMC6187LP4E. VARIABLE GAIN AMPLIFIER. 27 - 31.5 GHz. Absolute Maximum Ratings. Bias Voltage. Outline Drawing. Package Information
Model Line for this Datasheet
Text Version of Document
HMC6187LP4E
v00.0312
VARIABLE GAIN AMPLIFIER 27 - 31.5 GHz Absolute Maximum Ratings Bias Voltage
Drain bias Voltage (Vdd1, 2, 3) +5.5V Vdd1,2,3 (V) idd Total (ma) T Gate bias Voltage (Vgg1, 2) -2.5 to 0V +5V 230 m Gain Control Voltage (Vctrl) -5 to 0V Vgg1,2 (V) igg Total (ma) rf power input (rfin) +5 dbm 0V to -2V <0.2 ma Channel Temperature 175 °C Vctrl (V) ictrl (ma) r - S Continuous pdiss (T = 85 °C) -4.5V to -1V <1 ma 1.83 W (derate 20.3 mW/°C above 85 °C) [1] ie Thermal resistance 49.2 °C/W (Channel to ground paddle) lif Storage Temperature -65 to +150 °C p eleCTrOSTaTiC SenSiTiVe DeViCe Operating Temperature -40 to +85 °C m ObSerVe HanDlinG preCaUTiOnS eSD Sensitivity (Hbm) Class 0 passed 100V a
Outline Drawing
in a le G b ia r a V nOTeS: 1. leaDframe maTerial: COpper allOY 2. DimenSiOnS are in inCHeS [millimeTerS] 3. leaD SpaCinG TOleranCe iS nOn-CUmUlaTiVe. 4. paD bUrr lenGTH SHall be 0.15mm maXimUm. paD bUrr HeiGHT SHall be 0.05mm maXimUm. 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm. 6. all GrOUnD leaDS anD GrOUnD paDDle mUST be SOlDereD TO pCb rf GrOUnD. 7. refer TO HiTTiTe appliCaTiOn nOTe fOr SUGGeSTeD lanD paTTern.
Package Information
part number package body material lead finish mSl rating package marking [2] HmC6187lp4e roHS-compliant low Stress injection molded plastic 100% matte Sn mSl1 [1] H6187 XXXX [1] max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
