Datasheet BC847BPN (Nexperia) - 7
| Manufacturer | Nexperia |
| Description | NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. |
| Pages / Page | 14 / 7 — Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig … |
| Revision | 07082018 |
| File Format / Size | PDF / 589 Kb |
| Document Language | English |

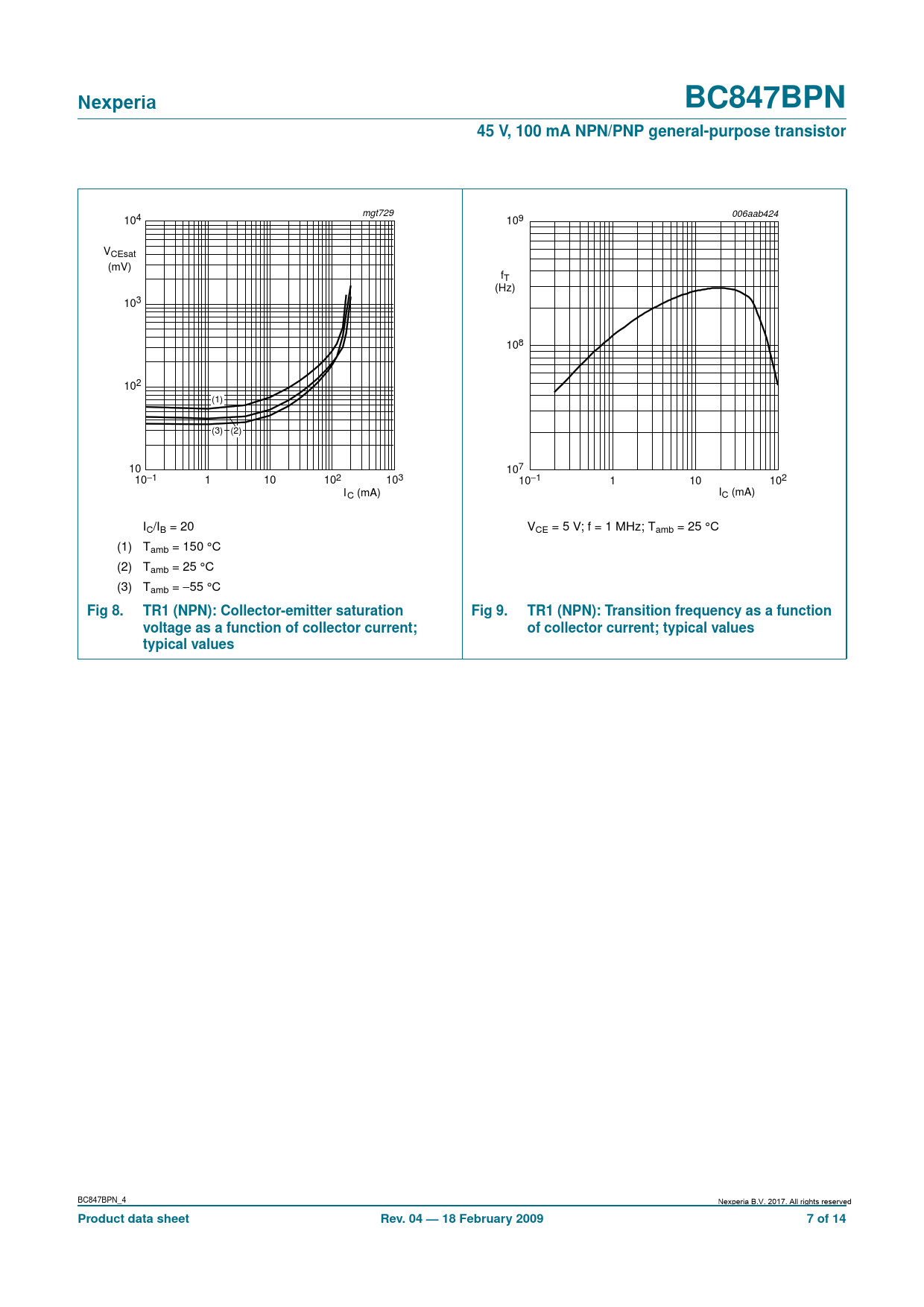

Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig 8. TR1 (NPN): Collector-emitter saturation. Fig 9
Model Line for this Datasheet
Text Version of Document
Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor
mgt729 006aab424 104 109 VCEsat (mV) fT (Hz) 103 108 102 (1) (3) (2) 10 107 10−1 1 10 102 103 10−1 1 102 10 IC (mA) IC (mA) IC/IB = 20 VCE = 5 V; f = 1 MHz; Tamb = 25 °C (1) Tamb = 150 °C (2) Tamb = 25 °C (3) Tamb = −55 °C
Fig 8. TR1 (NPN): Collector-emitter saturation Fig 9. TR1 (NPN): Transition frequency as a function voltage as a function of collector current; of collector current; typical values typical values
