HMC-ABH264. GaAs PHEMT MMIC MEDIUM. POWER AMPLIFIER, 34 - 42 GHz. Pad Descriptions. Assembly Diagram. 3 - 5
Model Line for this Datasheet
Text Version of Document
HMC-ABH264
v01.0209
GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 34 - 42 GHz Pad Descriptions

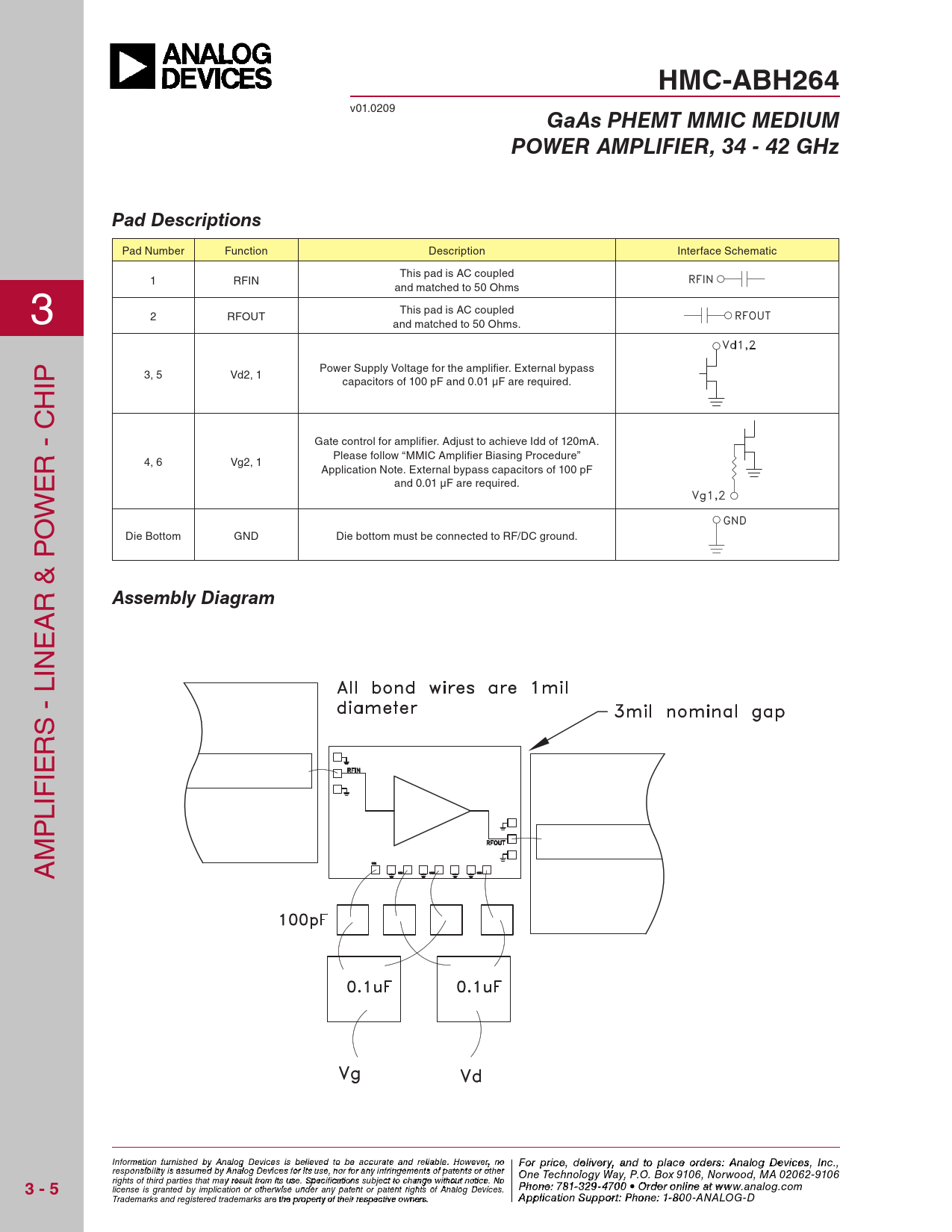

pad number function Description interface schematic This pad is AC coupled 1 rfin 3 and matched to 50 ohms This pad is AC coupled 2 rfoUT and matched to 50 ohms. ip power supply Voltage for the amplifier. external bypass 3, 5 Vd2, 1 capacitors of 100 pf and 0.01 µf are required. h Gate control for amplifier. Adjust to achieve idd of 120mA. r - C please follow “mmiC Amplifier Biasing procedure” 4, 6 Vg2, 1 e Application note. external bypass capacitors of 100 pf and 0.01 µf are required. w o p Die Bottom GnD Die bottom must be connected to rf/DC ground. r &
