Datasheet ADPA7007 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 20 GHz to 44 GHz, GaAs, pHEMT, 31.5 dBm (>1 W), MMIC Power Amplifier |
| Pages / Page | 23 / 1 — 20 GHz to 44 GHz, GaAs, pHEMT,. 31.5 dBm (>1 W), MMIC Power Amplifier. … |
| File Format / Size | PDF / 596 Kb |
| Document Language | English |
20 GHz to 44 GHz, GaAs, pHEMT,. 31.5 dBm (>1 W), MMIC Power Amplifier. Data Sheet. ADPA7007. FEATURES
Model Line for this Datasheet
Text Version of Document
link to page 23 link to page 10 link to page 23 link to page 23 link to page 23

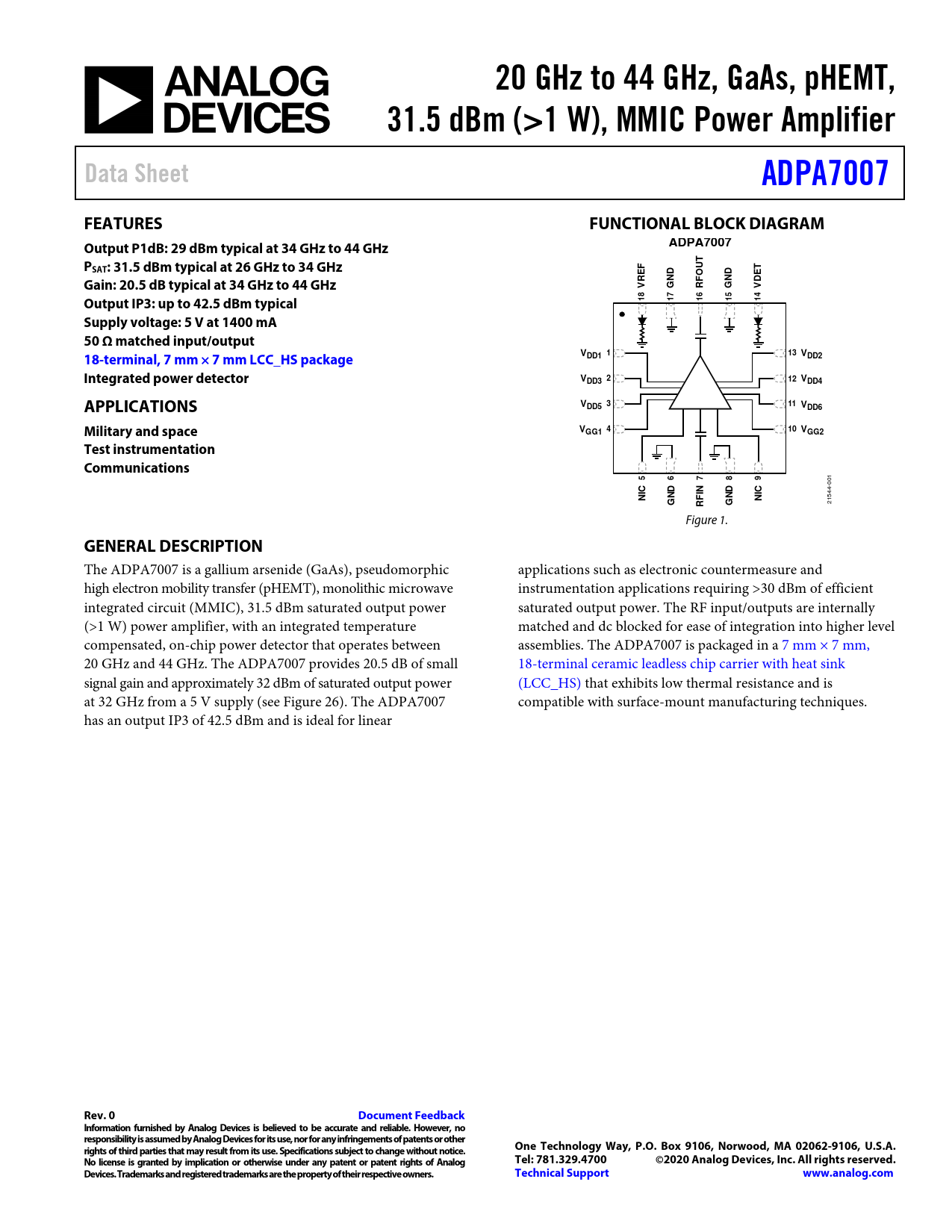

20 GHz to 44 GHz, GaAs, pHEMT, 31.5 dBm (>1 W), MMIC Power Amplifier Data Sheet ADPA7007 FEATURES FUNCTIONAL BLOCK DIAGRAM Output P1dB: 29 dBm typical at 34 GHz to 44 GHz ADPA7007 PSAT: 31.5 dBm typical at 26 GHz to 34 GHz UT EF O ET Gain: 20.5 dB typical at 34 GHz to 44 GHz ND ND VR G RF G VD Output IP3: up to 42.5 dBm typical 18 17 16 15 14 Supply voltage: 5 V at 1400 mA 50 Ω matched input/output 18-terminal, 7 mm × 7 mm LCC_HS package V 1 DD1 13 VDD2 Integrated power detector V 2 DD3 12 VDD4 APPLICATIONS V 3 DD5 11 VDD6 Military and space V 4 GG1 10 VGG2 Test instrumentation Communications 5 6 7 8 9
001
C C NI ND FIN ND NI G R G
21544- Figure 1.
GENERAL DESCRIPTION
The ADPA7007 is a gal ium arsenide (GaAs), pseudomorphic applications such as electronic countermeasure and high electron mobility transfer (pHEMT), monolithic microwave instrumentation applications requiring >30 dBm of efficient integrated circuit (MMIC), 31.5 dBm saturated output power saturated output power. The RF input/outputs are internal y (>1 W) power amplifier, with an integrated temperature matched and dc blocked for ease of integration into higher level compensated, on-chip power detector that operates between assemblies. The ADPA7007 is packaged in a 7 mm × 7 mm, 20 GHz and 44 GHz. The ADPA7007 provides 20.5 dB of small 18-terminal ceramic leadless chip carrier with heat sink signal gain and approximately 32 dBm of saturated output power (LCC_HS) that exhibits low thermal resistance and is at 32 GHz from a 5 V supply (see Figure 26). The ADPA7007 compatible with surface-mount manufacturing techniques. has an output IP3 of 42.5 dBm and is ideal for linear
