| Description | 20 GHz to 44 GHz, GaAs, pHEMT, 31.5 dBm (>1 W), MMIC Power Amplifier |
| Pages / Page | 23 / 3 — Data Sheet. ADPA7007. SPECIFICATIONS 20 GHz TO 26 GHz FREQUENCY RANGE. … |
| File Format / Size | PDF / 596 Kb |
| Document Language | English |

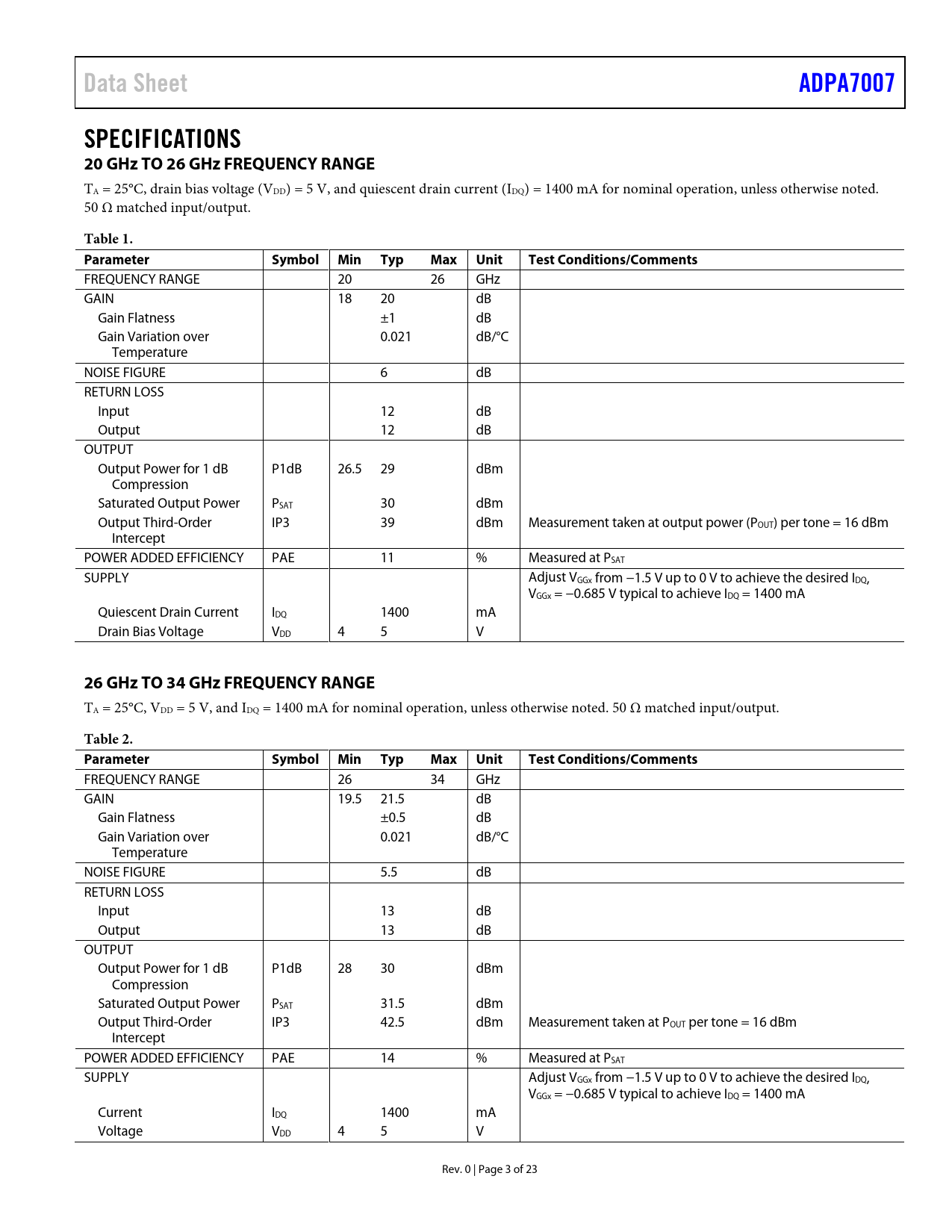

Data Sheet. ADPA7007. SPECIFICATIONS 20 GHz TO 26 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADPA7007 SPECIFICATIONS 20 GHz TO 26 GHz FREQUENCY RANGE
TA = 25°C, drain bias voltage (VDD) = 5 V, and quiescent drain current (IDQ) = 1400 mA for nominal operation, unless otherwise noted. 50 Ω matched input/output.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 20 26 GHz GAIN 18 20 dB Gain Flatness ±1 dB Gain Variation over 0.021 dB/°C Temperature NOISE FIGURE 6 dB RETURN LOSS Input 12 dB Output 12 dB OUTPUT Output Power for 1 dB P1dB 26.5 29 dBm Compression Saturated Output Power PSAT 30 dBm Output Third-Order IP3 39 dBm Measurement taken at output power (POUT) per tone = 16 dBm Intercept POWER ADDED EFFICIENCY PAE 11 % Measured at PSAT SUPPLY Adjust VGGx from −1.5 V up to 0 V to achieve the desired IDQ, VGGx = −0.685 V typical to achieve IDQ = 1400 mA Quiescent Drain Current IDQ 1400 mA Drain Bias Voltage VDD 4 5 V
