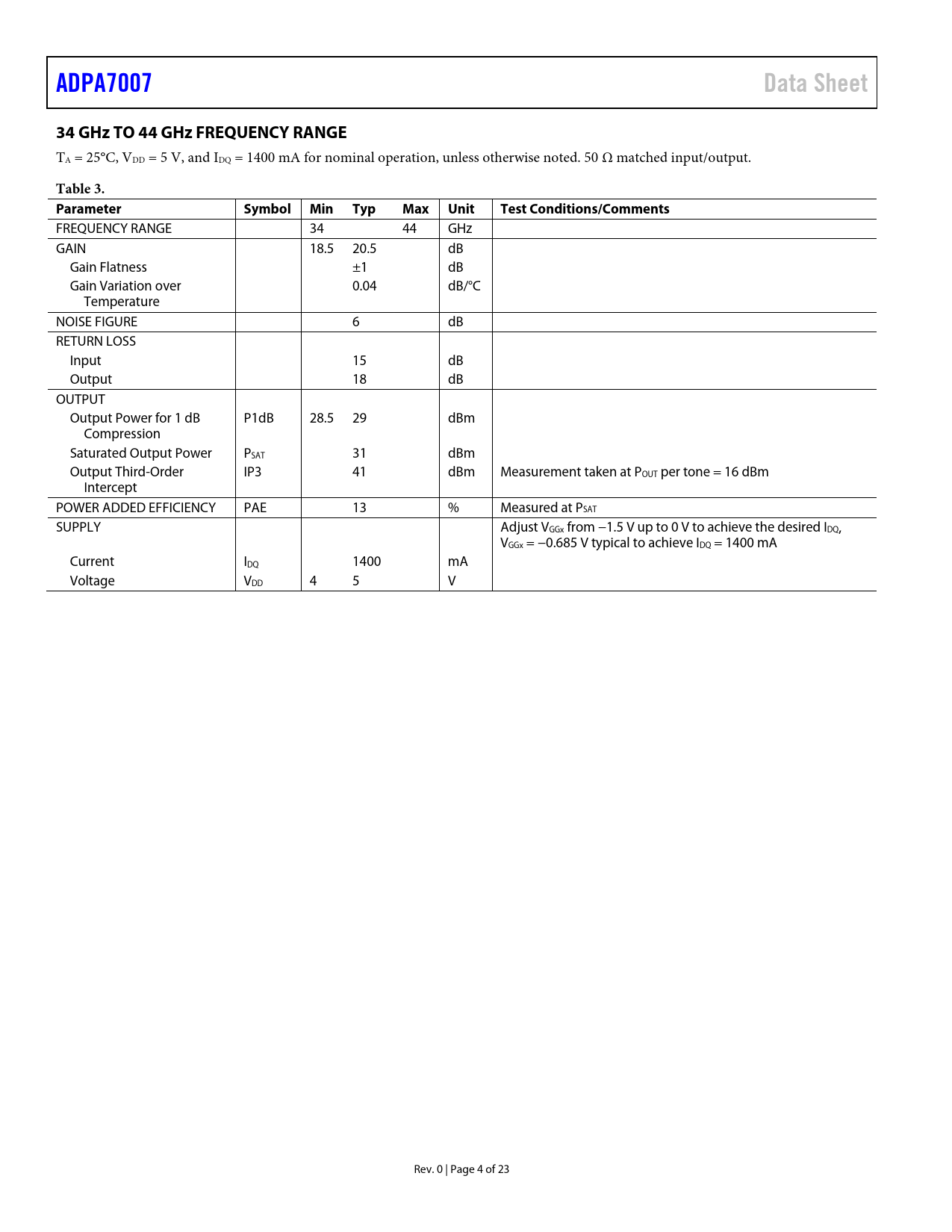

ADPA7007 Data Sheet 34 GHz TO 44 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and IDQ = 1400 mA for nominal operation, unless otherwise noted. 50 Ω matched input/output.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 34 44 GHz GAIN 18.5 20.5 dB Gain Flatness ±1 dB Gain Variation over 0.04 dB/°C Temperature NOISE FIGURE 6 dB RETURN LOSS Input 15 dB Output 18 dB OUTPUT Output Power for 1 dB P1dB 28.5 29 dBm Compression Saturated Output Power PSAT 31 dBm Output Third-Order IP3 41 dBm Measurement taken at POUT per tone = 16 dBm Intercept POWER ADDED EFFICIENCY PAE 13 % Measured at PSAT SUPPLY Adjust VGGx from −1.5 V up to 0 V to achieve the desired IDQ, VGGx = −0.685 V typical to achieve IDQ = 1400 mA Current IDQ 1400 mA Voltage VDD 4 5 V Rev. 0 | Page 4 of 23 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 20 GHz TO 26 GHz FREQUENCY RANGE 26 GHz TO 34 GHz FREQUENCY RANGE 34 GHz TO 44 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS CONSTANT IDD OPERATION THEORY OF OPERATION APPLICATIONS INFORMATION BIASING ADPA7007 WITH THE HMC980LP4E APPLICATION CIRCUIT SETUP LIMITING VGATE AND VNEG FOR ADPA7007 VGGX ABSOLUTE MAXIMUM RATING REQUIREMENT HMC980LP4E BIAS SEQUENCE Power-Up Sequence Power-Down Sequence CONSTANT DRAIN CURRENT BIASING vs. CONSTANT GATE VOLTAGE BIASING OUTLINE DIMENSIONS ORDERING GUIDE
