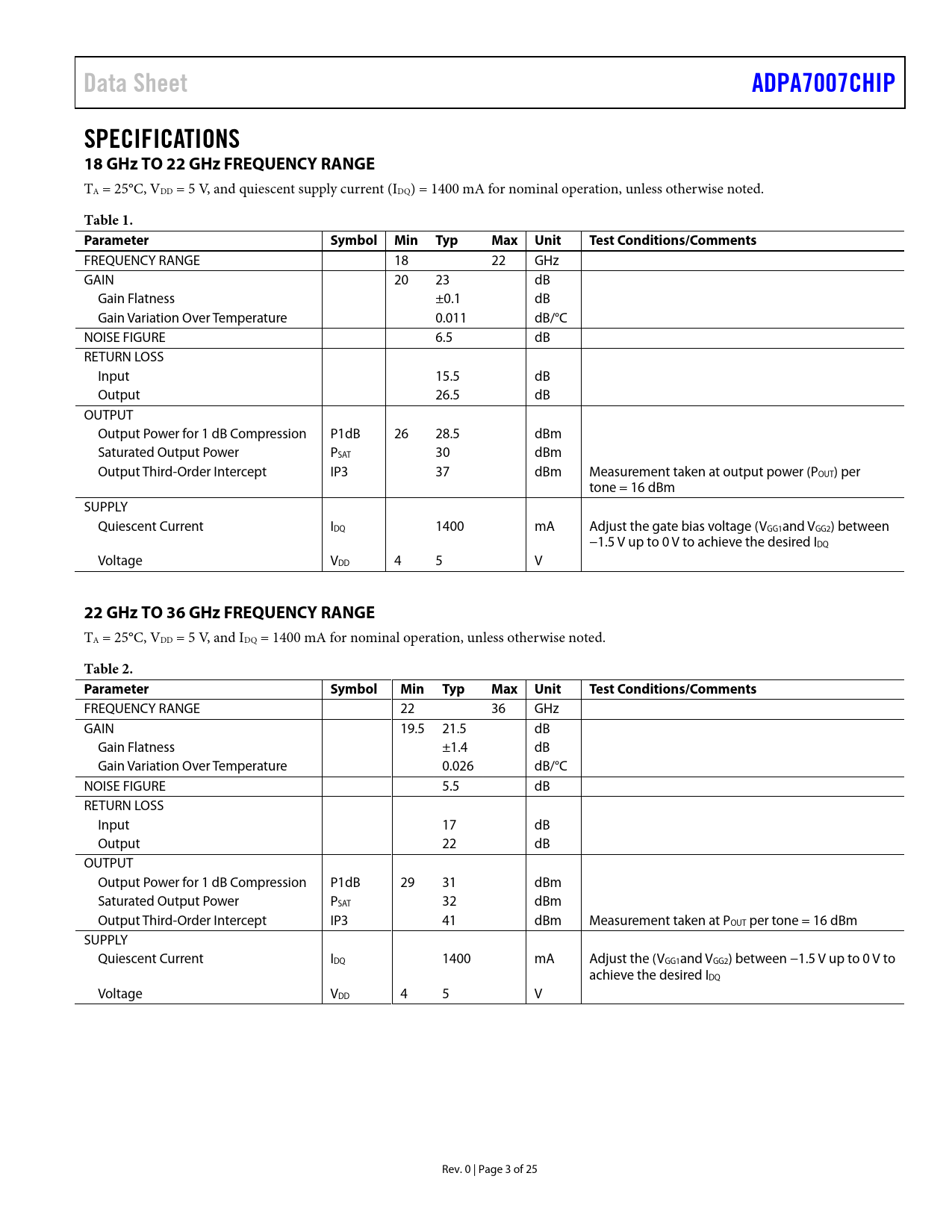

Data Sheet. ADPA7007CHIP. SPECIFICATIONS 18 GHz TO 22 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol Min Typ. Max Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADPA7007CHIP SPECIFICATIONS 18 GHz TO 22 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and quiescent supply current (IDQ) = 1400 mA for nominal operation, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 18 22 GHz GAIN 20 23 dB Gain Flatness ±0.1 dB Gain Variation Over Temperature 0.011 dB/°C NOISE FIGURE 6.5 dB RETURN LOSS Input 15.5 dB Output 26.5 dB OUTPUT Output Power for 1 dB Compression P1dB 26 28.5 dBm Saturated Output Power PSAT 30 dBm Output Third-Order Intercept IP3 37 dBm Measurement taken at output power (POUT) per tone = 16 dBm SUPPLY Quiescent Current IDQ 1400 mA Adjust the gate bias voltage (VGG1and VGG2) between −1.5 V up to 0 V to achieve the desired IDQ Voltage VDD 4 5 V
22 GHz TO 36 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, and IDQ = 1400 mA for nominal operation, unless otherwise noted.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
