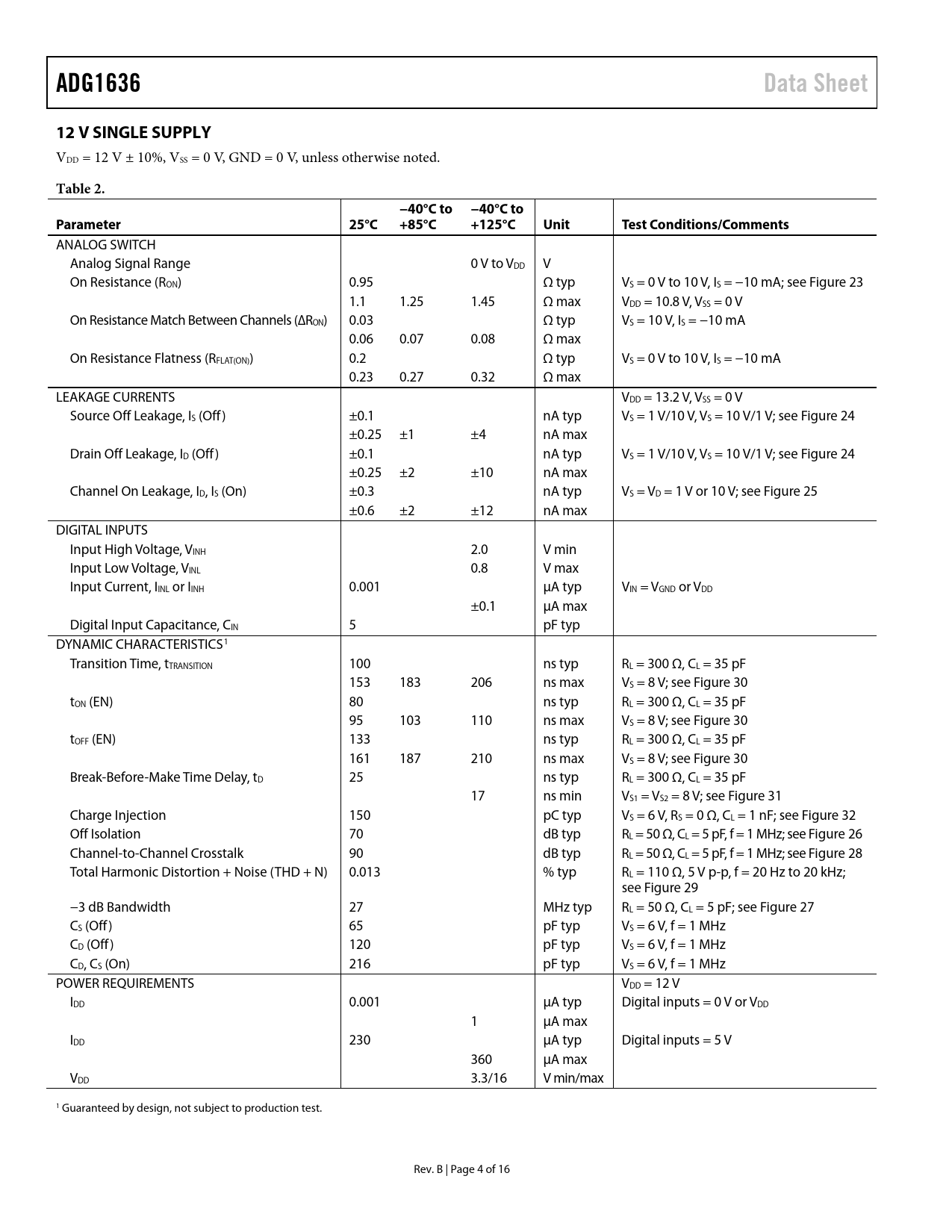

ADG1636. Data Sheet. 12 V SINGLE SUPPLY. Table 2. −40°C to −40°C to. Parameter. 25°C +85°C. +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 13 link to page 13 link to page 13 link to page 13 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 13 link to page 13 link to page 14 link to page 13
ADG1636 Data Sheet 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 0.95 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 23 1.1 1.25 1.45 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match Between Channels (∆RON) 0.03 Ω typ VS = 10 V, IS = −10 mA 0.06 0.07 0.08 Ω max On Resistance Flatness (RFLAT(ON)) 0.2 Ω typ VS = 0 V to 10 V, IS = −10 mA 0.23 0.27 0.32 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = 1 V/10 V, VS = 10 V/1 V; see Figure 24 ±0.25 ±1 ±4 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = 1 V/10 V, VS = 10 V/1 V; see Figure 24 ±0.25 ±2 ±10 nA max Channel On Leakage, ID, IS (On) ±0.3 nA typ VS = VD = 1 V or 10 V; see Figure 25 ±0.6 ±2 ±12 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 100 ns typ RL = 300 Ω, CL = 35 pF 153 183 206 ns max VS = 8 V; see Figure 30 tON (EN) 80 ns typ RL = 300 Ω, CL = 35 pF 95 103 110 ns max VS = 8 V; see Figure 30 tOFF (EN) 133 ns typ RL = 300 Ω, CL = 35 pF 161 187 210 ns max VS = 8 V; see Figure 30 Break-Before-Make Time Delay, tD 25 ns typ RL = 300 Ω, CL = 35 pF 17 ns min VS1 = VS2 = 8 V; see Figure 31 Charge Injection 150 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation 70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 26 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Total Harmonic Distortion + Noise (THD + N) 0.013 % typ RL = 110 Ω, 5 V p-p, f = 20 Hz to 20 kHz; see Figure 29 −3 dB Bandwidth 27 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 27 CS (Off) 65 pF typ VS = 6 V, f = 1 MHz CD (Off) 120 pF typ VS = 6 V, f = 1 MHz CD, CS (On) 216 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 12 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max IDD 230 µA typ Digital inputs = 5 V 360 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, not subject to production test. Rev. B | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
ADG1636 Data Sheet 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
