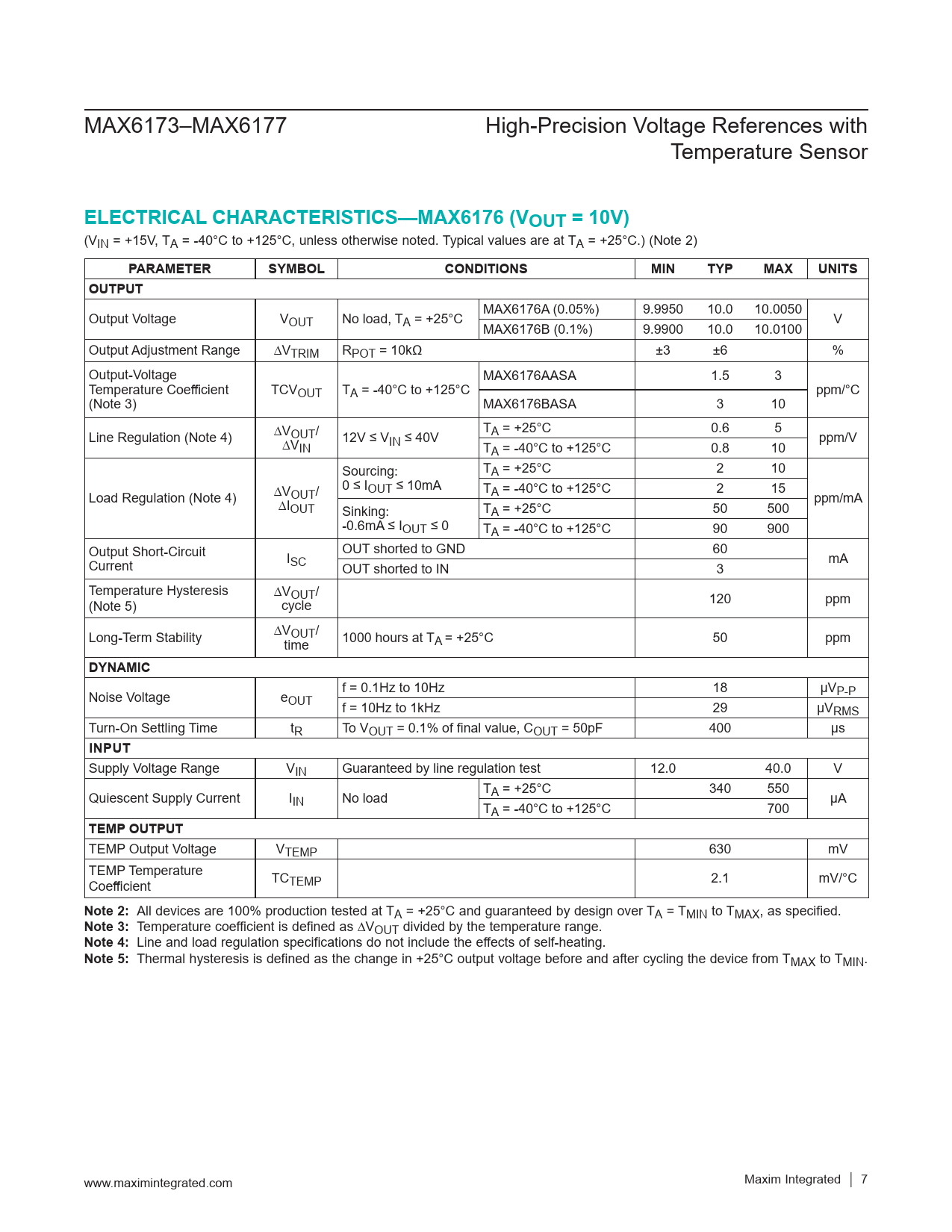

MAX6173–MAX6177 High-Precision Voltage References with Temperature Sensor
ELECTRICAL CHARACTERISTICS—MAX6176 (VOUT = 10V)
(VIN = +15V, TA = -40°C to +125°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6176A (0.05%) 9.9950 10.0 10.0050 Output Voltage VOUT No load, TA = +25°C V MAX6176B (0.1%) 9.9900 10.0 10.0100 Output Adjustment Range DVTRIM RPOT = 10kΩ ±3 ±6 % Output-Voltage MAX6176AASA 1.5 3 Temperature Coefficient TCVOUT TA = -40°C to +125°C ppm/°C (Note 3) MAX6176BASA 3 10 T Line Regulation (Note 4) DVOUT/ A = +25°C 0.6 5 DV 12V ≤ V ppm/V IN IN ≤ 40V TA = -40°C to +125°C 0.8 10 Sourcing: TA = +25°C 2 10 0 ≤ IOUT ≤ 10mA T Load Regulation (Note 4) DVOUT/ A = -40°C to +125°C 2 15 DI ppm/mA OUT Sinking: TA = +25°C 50 500 -0.6mA ≤ IOUT ≤ 0 TA = -40°C to +125°C 90 900 Output Short-Circuit OUT shorted to GND 60 Current ISC mA OUT shorted to IN 3 Temperature Hysteresis DVOUT/ (Note 5) cycle 120 ppm Long-Term Stability DVOUT/ time 1000 hours at TA = +25°C 50 ppm
DYNAMIC
f = 0.1Hz to 10Hz 18 µV Noise Voltage e P-P OUT f = 10Hz to 1kHz 29 µVRMS Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 400 µs
INPUT
Supply Voltage Range VIN Guaranteed by line regulation test 12.0 40.0 V T Quiescent Supply Current I A = +25°C 340 550 IN No load µA TA = -40°C to +125°C 700
TEMP OUTPUT
TEMP Output Voltage VTEMP 630 mV TEMP Temperature Coefficient TCTEMP 2.1 mV/°C
Note 2:
All devices are 100% production tested at TA = +25°C and guaranteed by design over TA = TMIN to TMAX, as specified.
Note 3:
Temperature coefficient is defined as ∆VOUT divided by the temperature range.
Note 4:
Line and load regulation specifications do not include the effects of self-heating.
Note 5:
Thermal hysteresis is defined as the change in +25°C output voltage before and after cycling the device from TMAX to TMIN. www.maximintegrated.com Maxim Integrated │ 7 Document Outline _GoBack
