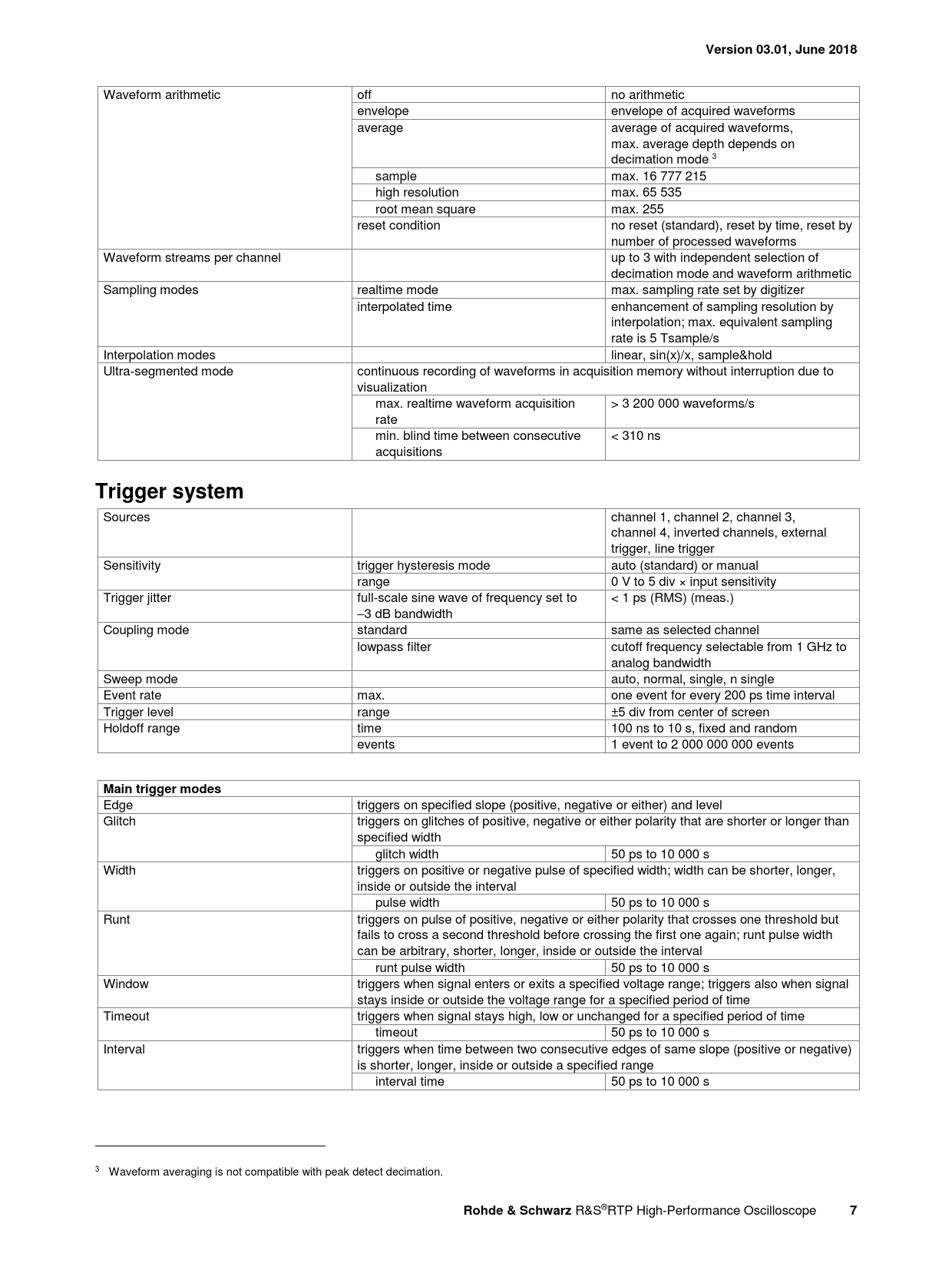

Version 03.01, June 2018. Trigger system. Main trigger modes. Rohde & Schwarz
Text Version of Document
Version 03.01, June 2018
Waveform arithmetic off no arithmetic envelope envelope of acquired waveforms average average of acquired waveforms, max. average depth depends on decimation mode 3 sample max. 16 777 215 high resolution max. 65 535 root mean square max. 255 reset condition no reset (standard), reset by time, reset by number of processed waveforms Waveform streams per channel up to 3 with independent selection of decimation mode and waveform arithmetic Sampling modes realtime mode max. sampling rate set by digitizer interpolated time enhancement of sampling resolution by interpolation; max. equivalent sampling rate is 5 Tsample/s Interpolation modes linear, sin(x)/x, sample&hold Ultra-segmented mode continuous recording of waveforms in acquisition memory without interruption due to visualization max. realtime waveform acquisition > 3 200 000 waveforms/s rate min. blind time between consecutive < 310 ns acquisitions
Trigger system
Sources channel 1, channel 2, channel 3, channel 4, inverted channels, external trigger, line trigger Sensitivity trigger hysteresis mode auto (standard) or manual range 0 V to 5 div × input sensitivity Trigger jitter full-scale sine wave of frequency set to < 1 ps (RMS) (meas.) –3 dB bandwidth Coupling mode standard same as selected channel lowpass filter cutoff frequency selectable from 1 GHz to analog bandwidth Sweep mode auto, normal, single, n single Event rate max. one event for every 200 ps time interval Trigger level range ±5 div from center of screen Holdoff range time 100 ns to 10 s, fixed and random events 1 event to 2 000 000 000 events
Main trigger modes
Edge triggers on specified slope (positive, negative or either) and level Glitch triggers on glitches of positive, negative or either polarity that are shorter or longer than specified width glitch width 50 ps to 10 000 s Width triggers on positive or negative pulse of specified width; width can be shorter, longer, inside or outside the interval pulse width 50 ps to 10 000 s Runt triggers on pulse of positive, negative or either polarity that crosses one threshold but fails to cross a second threshold before crossing the first one again; runt pulse width can be arbitrary, shorter, longer, inside or outside the interval runt pulse width 50 ps to 10 000 s Window triggers when signal enters or exits a specified voltage range; triggers also when signal stays inside or outside the voltage range for a specified period of time Timeout triggers when signal stays high, low or unchanged for a specified period of time timeout 50 ps to 10 000 s Interval triggers when time between two consecutive edges of same slope (positive or negative) is shorter, longer, inside or outside a specified range interval time 50 ps to 10 000 s 3 Waveform averaging is not compatible with peak detect decimation.
Rohde & Schwarz
R&S®RTP High-Performance Oscilloscope
7
Waveform arithmetic off no arithmetic envelope envelope of acquired waveforms average average of acquired waveforms, max. average depth depends on decimation mode 3 sample max. 16 777 215 high resolution max. 65 535 root mean square max. 255 reset condition no reset (standard), reset by time, reset by number of processed waveforms Waveform streams per channel up to 3 with independent selection of decimation mode and waveform arithmetic Sampling modes realtime mode max. sampling rate set by digitizer interpolated time enhancement of sampling resolution by interpolation; max. equivalent sampling rate is 5 Tsample/s Interpolation modes linear, sin(x)/x, sample&hold Ultra-segmented mode continuous recording of waveforms in acquisition memory without interruption due to visualization max. realtime waveform acquisition > 3 200 000 waveforms/s rate min. blind time between consecutive < 310 ns acquisitions
Trigger system
Sources channel 1, channel 2, channel 3, channel 4, inverted channels, external trigger, line trigger Sensitivity trigger hysteresis mode auto (standard) or manual range 0 V to 5 div × input sensitivity Trigger jitter full-scale sine wave of frequency set to < 1 ps (RMS) (meas.) –3 dB bandwidth Coupling mode standard same as selected channel lowpass filter cutoff frequency selectable from 1 GHz to analog bandwidth Sweep mode auto, normal, single, n single Event rate max. one event for every 200 ps time interval Trigger level range ±5 div from center of screen Holdoff range time 100 ns to 10 s, fixed and random events 1 event to 2 000 000 000 events
Main trigger modes
Edge triggers on specified slope (positive, negative or either) and level Glitch triggers on glitches of positive, negative or either polarity that are shorter or longer than specified width glitch width 50 ps to 10 000 s Width triggers on positive or negative pulse of specified width; width can be shorter, longer, inside or outside the interval pulse width 50 ps to 10 000 s Runt triggers on pulse of positive, negative or either polarity that crosses one threshold but fails to cross a second threshold before crossing the first one again; runt pulse width can be arbitrary, shorter, longer, inside or outside the interval runt pulse width 50 ps to 10 000 s Window triggers when signal enters or exits a specified voltage range; triggers also when signal stays inside or outside the voltage range for a specified period of time Timeout triggers when signal stays high, low or unchanged for a specified period of time timeout 50 ps to 10 000 s Interval triggers when time between two consecutive edges of same slope (positive or negative) is shorter, longer, inside or outside a specified range interval time 50 ps to 10 000 s 3 Waveform averaging is not compatible with peak detect decimation.
Rohde & Schwarz
R&S®RTP High-Performance Oscilloscope
7
