This detailed implementation of the circuit in Figure 1 operates with dual power supplies
| Authors | Philip Karantzalis |
| Main Document | Article «Low-noise ac amplifier has digital control of gain and bandwidth» |
| Description | Figure 2 |
| File Format / Size | PDF / 39 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Low-noise ac amplifier has digital control of gain and bandwidth»
- Figure 1. This ac-amplifier configuration offers both gain and bandwidth control

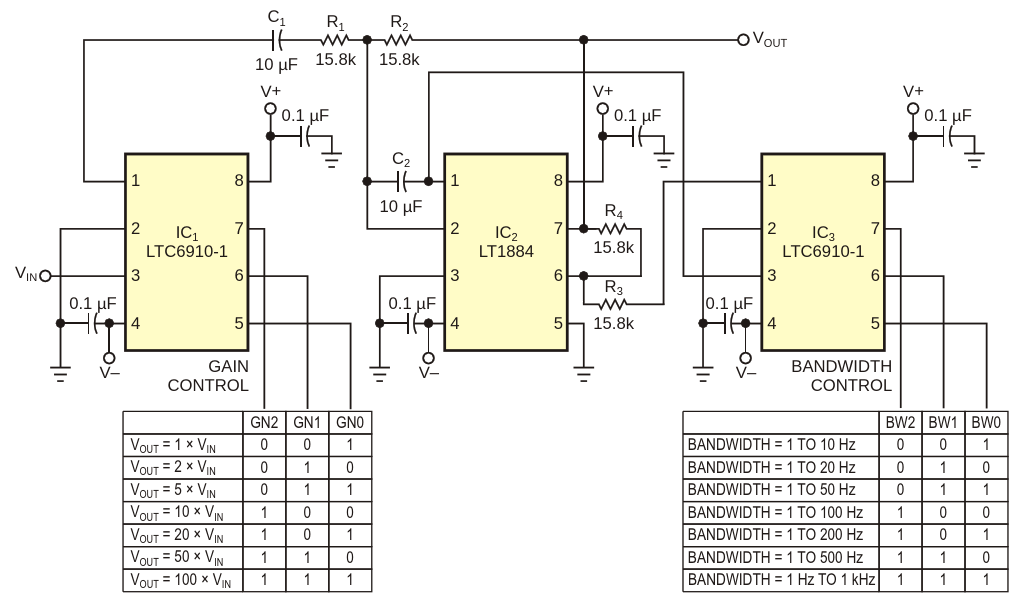

- Figure 2. This detailed implementation of the circuit in Figure 1 operates with dual power supplies
- Figure 3. The frequency response of Figure 2's circuit shows unity gain and three digital bandwidth-control inputs
