This circuit exhibits a deadband for signals more positive than an arbitrary voltage, which R₁ determines

Authors	V Manoharan
Main Document	Article «Build a precision deadband circuit»
Description	Figure 1
File Format / Size	PDF / 21 Kb
Document Language	English

Other Materials from the Main Document

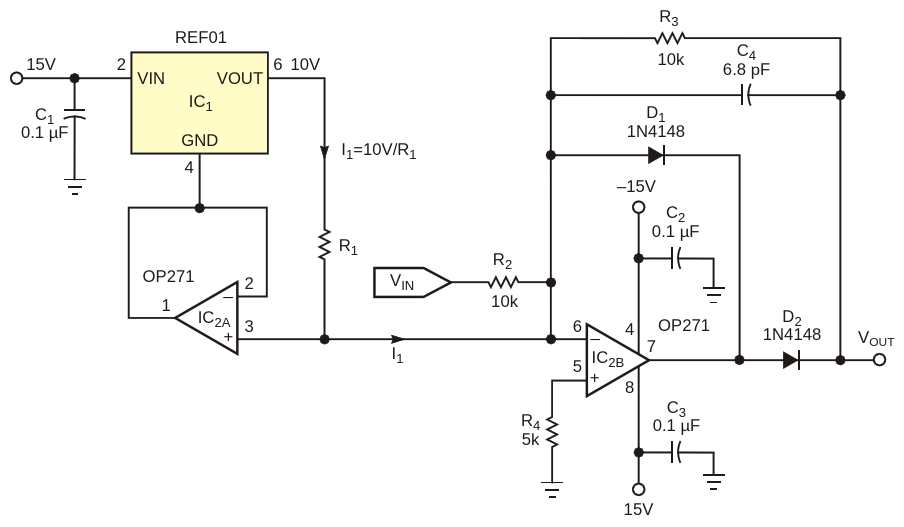

Figure 1. This circuit exhibits a deadband for signals more positive than an arbitrary voltage, which R₁ determines
Figure 2. With R₁ = 20 kΩ, the circuit in Figure 1 is "dead" for input voltages higher than -5 V
