This circuit provides power to the load with any installation of the battery
| Authors | Vladimir Oleynik |
| Main Document | Article «Polarity-correcting circuit protects battery-powered devices» |
| Description | Figure 3 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Polarity-correcting circuit protects battery-powered devices»
- Figure 1. This circuit protects the load against a reversed battery using a P-channel MOSFET
- Figure 2. The circuit protects the load against reversed battery using an N-channel MOSFET

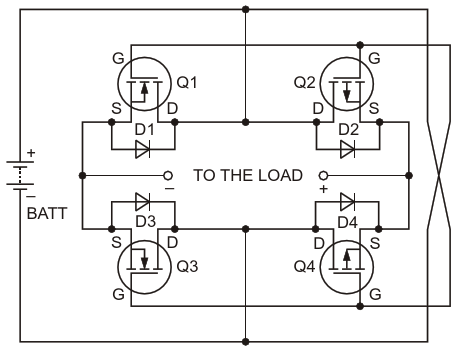

- Figure 3. This circuit provides power to the load with any installation of the battery
- Figure 4. Protection of the gate-source junctions of the MOSFETs
