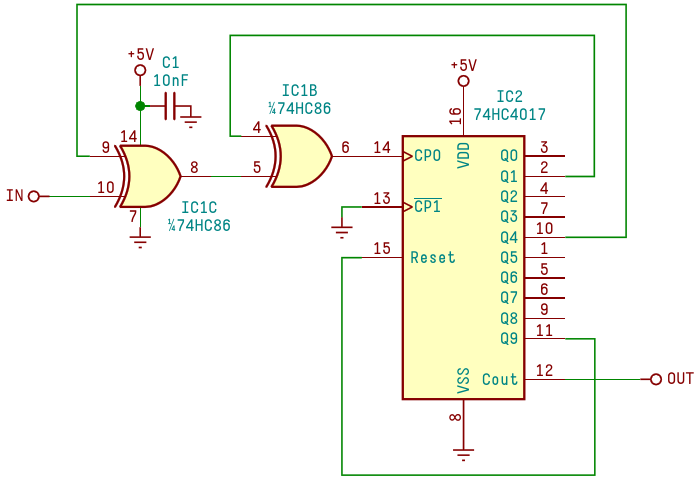

Adding another XOR gate allows the circuit to provide a divide-by-seven with 50% duty cycle output
| Authors | Ariel G. Benvenuto |
| Main Document | Article «Divider generates accurate 455kHz square-wave signal» |
| Description | Figure 3 |
| File Format / Size | PDF / 19 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Divider generates accurate 455kHz square-wave signal»
- Figure 1. This design uses a Pierce oscillator based on an XOR gate and generates 455 kHz with 50% duty cycle
- Figure 3. Adding another XOR gate allows the circuit to provide a divide-by-seven with 50% duty cycle output
