Implementation of PWM using two inverters
| Authors | Raju Baddi |
| Main Document | Article «Sub-picofarad measurement with CMOS inverters» |
| Description | Figure 3 |
| File Format / Size | PDF / 14 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Sub-picofarad measurement with CMOS inverters»
- Figure 1. 2.5 pF-250 pF FSD capacitance meter using all six inverter gates of a CD4069 (a). A single-gate constant current source (b)
- Figure 2. Diagrams explaining the operation of the circuit in Figure 1. Blue color: the input signal of G5 gate, red color: the input signal of G6 gate

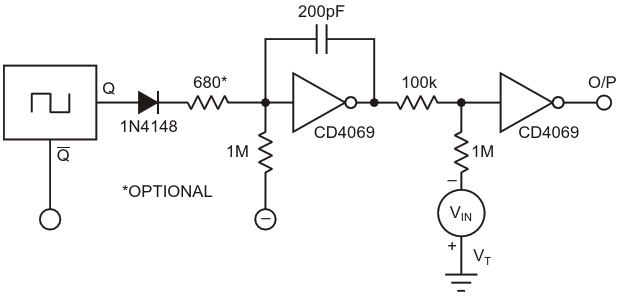

- Figure 3. Implementation of PWM using two inverters
