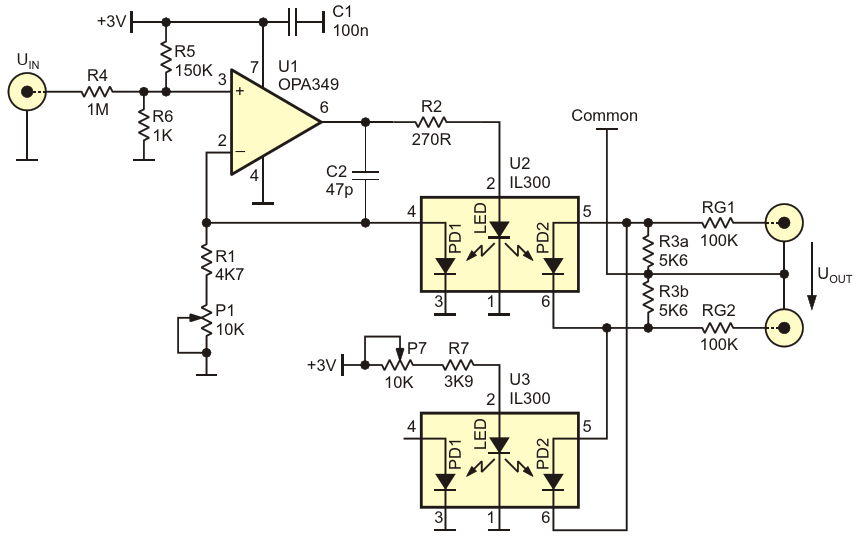

The complete schematic diagram of the optically isolated differential driver
| Authors | Dusan Ponikvar |
| Main Document | Article «A Differential, Optically Isolated Driver for Testing of an Instrumentation Amplifier» |
| Description | Figure 3 |
| File Format / Size | PDF / 67 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «A Differential, Optically Isolated Driver for Testing of an Instrumentation Amplifier»
- Figure 1. A differential signal source
- Figure 2. A simple circuit using a linear optocoupler
- Figure 3. The complete schematic diagram of the optically isolated differential driver
