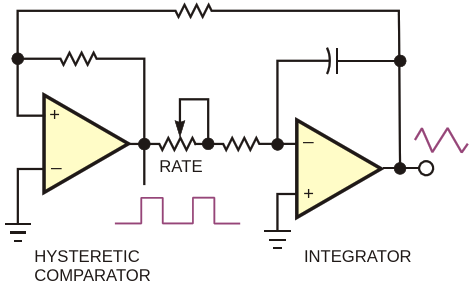

This circuit is a classic triangle-wave generator, using an integrator and a comparator with hysteresis
| Authors | Mike Irwin |
| Main Document | Article «Transconductance Amp Gives Oscillator Reciprocal Response» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Transconductance Amp Gives Oscillator Reciprocal Response»
- Figure 1. This circuit is a classic triangle-wave generator, using an integrator and a comparator with hysteresis
- Figure 2. This VCO uses an OTA and a hysteretic comparator to deliver a reciprocal (1/x) response to the control voltage
