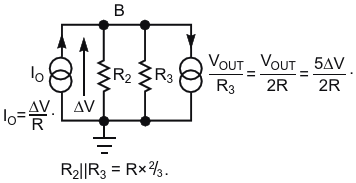

The value of R3 is two times that of R2 for a 0 V drop at Input A in Figure 1
| Authors | Marián Štofka |
| Main Document | Article «Instrumentation-amplifier-based current shunt exhibits 0V drop» |
| Description | Figure 2 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Instrumentation-amplifier-based current shunt exhibits 0V drop»
- Figure 1. This instrumentation amplifier serves two purposes: It forms a current-to-voltage converter having a transresistance of 25R, and it exerts a voltage drop of opposite polarity at point B, resulting in a zero potential at Input A, regardless of input-curren
- Figure 2. The value of R3 is two times that of R2 for a 0 V drop at Input A in Figure 1
