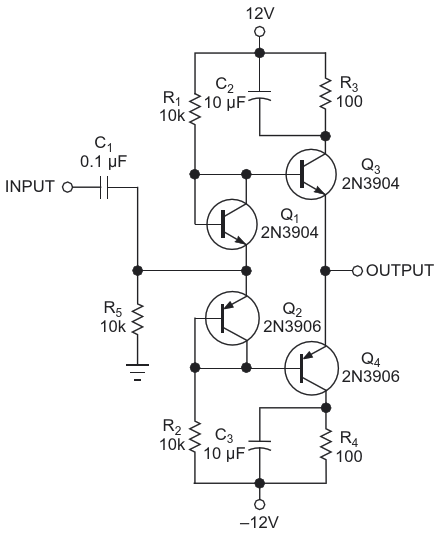

Resistors R3 and R4 limit the output current
| Authors | Lyle Williams |
| Main Document | Article «High-speed buffer comprises discrete transistors» |
| Description | Figure 3 |
| File Format / Size | PDF / 20 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «High-speed buffer comprises discrete transistors»
- Figure 1. A typical buffer can drive loads as low as 200 Ω
- Figure 2. Current-mirror transistors replace the diodes in Figure 1
- Figure 3. Resistors R3 and R4 limit the output current
