Charge injection can produce a glitch in a voltage comparator's output, and these glitches can cause logic hazards

Download PDF

Other Materials from the Main Document

• Article «Schottky diodes improve comparator's transient response»

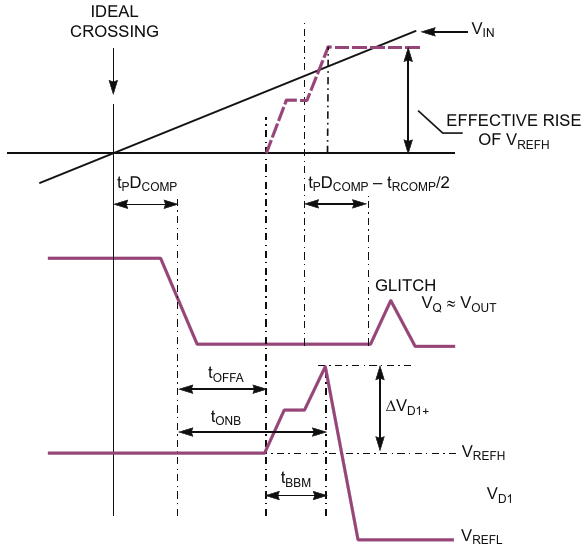

• Figure 1. Charge injection can produce a glitch in a voltage comparator's output, and these glitches can cause logic hazards
• Figure 2. Schottky barrier diode D₁ damps positive voltage spikes that occur at the noninverting input of comparator IC₁ shortly after the high-to-low transition of the output voltage. Diode D₂ clamps the negative excursion of the r
