This sensor circuit operates from a single 5 V power supply

Authors	Kevin Ackerley
Main Document	Article «Impedance Transformer Flags Failed Fuse»
Description	Figure 1
File Format / Size	PDF / 25 Kb
Document Language	English

Other Materials from the Main Document

Article «Impedance Transformer Flags Failed Fuse»

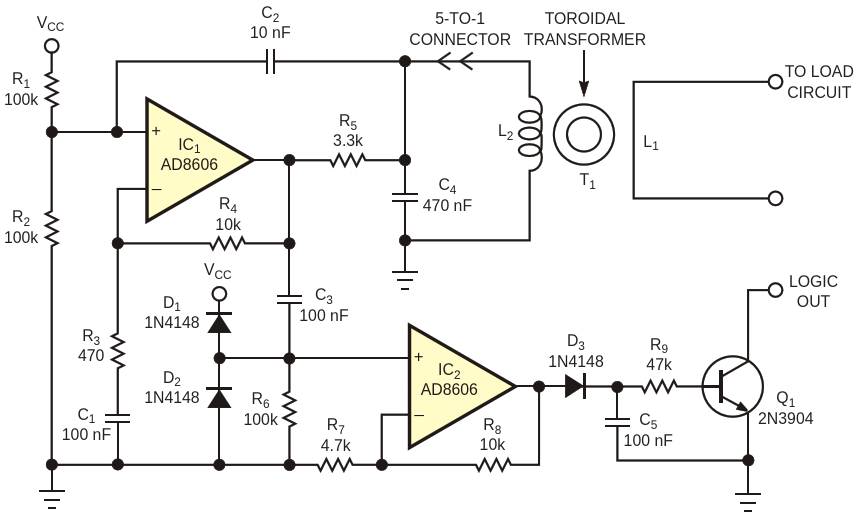

Figure 1. This sensor circuit operates from a single 5 V power supply
Figure 2. The system wiring diagram shows transformer T₁'s primary winding. Low-voltage-disconnect units LVD₁ and LVD₂ isolate the 48 V battery or the customer's load for maintenance
Figure 3. The primary winding (battery cable) passes through transformer T₁'s center
